DICOM Store: exporting DICOM images from Vscan Extend to DICOM image server
(continued)
NOTE:
NOTE:
–
Vscan Extend User Manual
5721203-100 Rev. D
5. A green icon indicates a successful export.
A gray icon indicates the export was initiated and is pending
upload.
If an exported image does not successfully transfer to the
DICOM server, a red icon appears next to the image.
If the user did not attempt to export an image, no icon
displays next to the image.
To refresh the screen to see the current status, exit the page
and return to the same page.

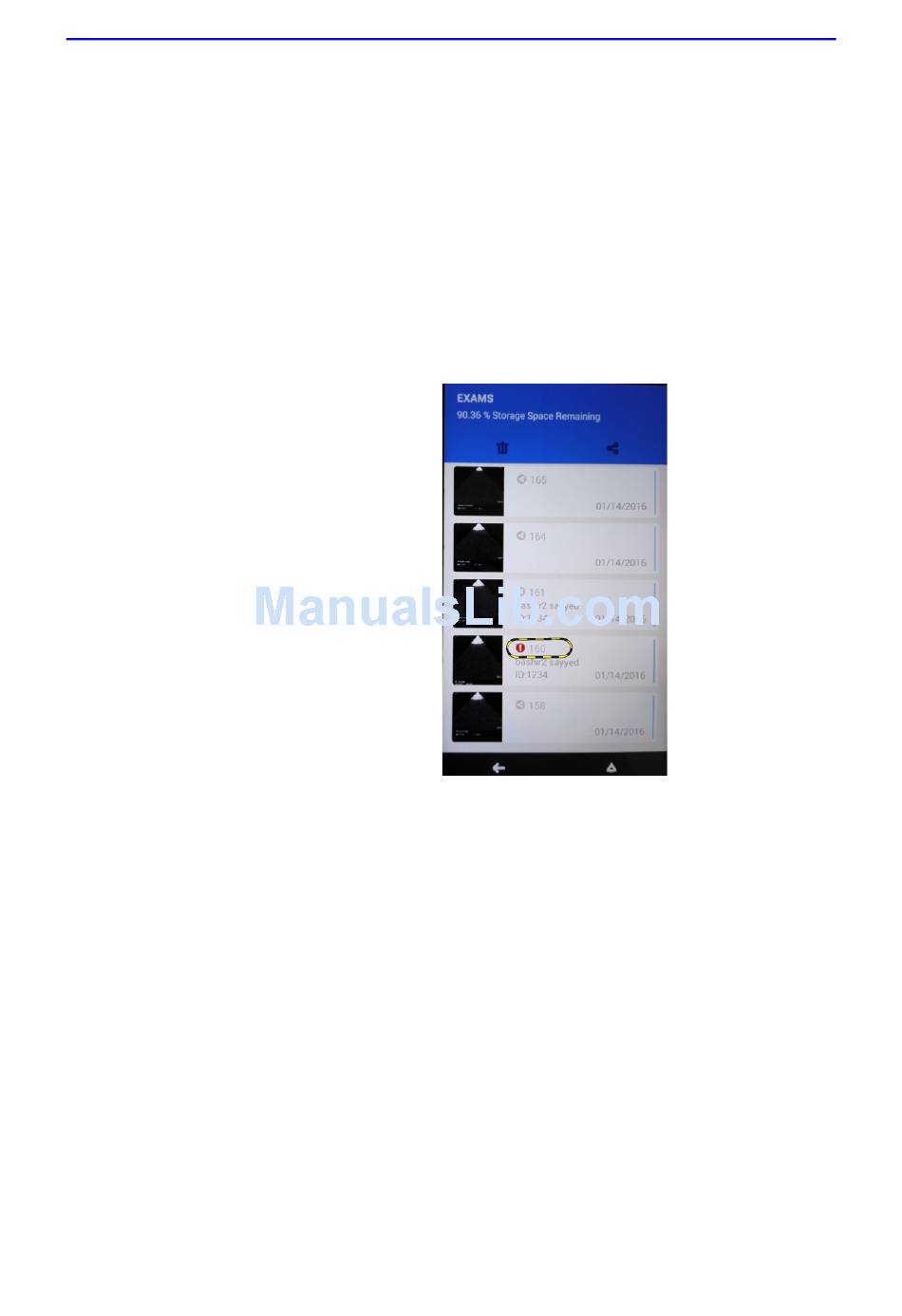

Figure 5-37. Transfer failed
All still images can be sent to the DICOM image server. Videos
may be sent to the DICOM image server only if "Enable
MultiFrame DICOM" is selected in the DICOM server
configuration.
Up to 100 images can be exported at one time.
The multiframe video is limited to 4 seconds.
If the export is unsuccessful, it takes about 20 minutes until a
failure message appears as the device attempts to resend the
images/videos.
Review and recall of stored data
5-41
