GE Vscan Extend User Manual page 61

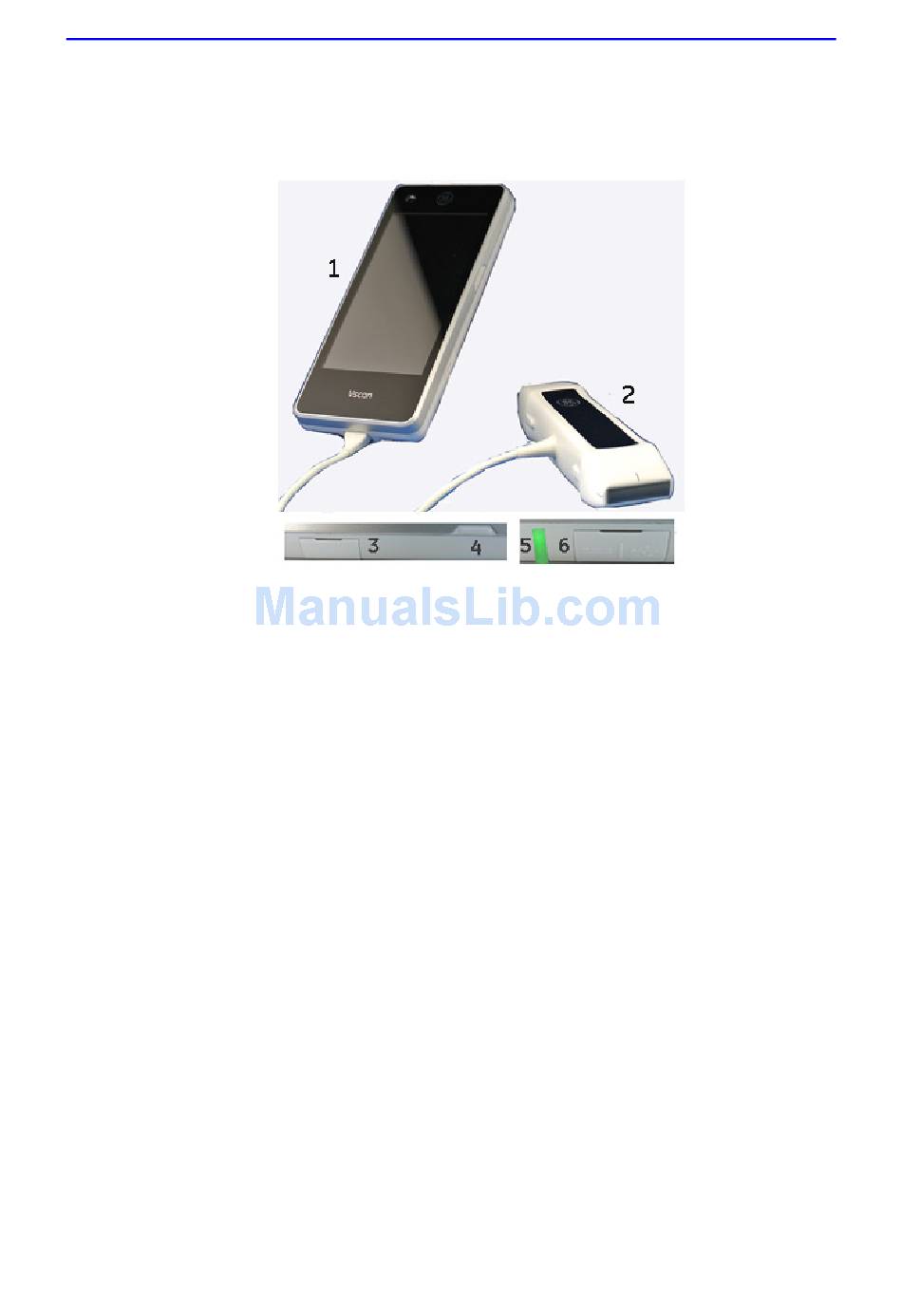

Vscan Extend configured with a Dual probe holding both a phased array
and linear array transducer for deep and shallow scanning
1. Display
2. Dual probe
3. Serial port (For Service ONLY)
NOTE:
–
Vscan Extend User Manual
5721203-100 Rev. D
Figure 3-3. Vscan Extend with Dual probe
Green LED indicates Vscan Extend is fully charged and an
amber LED indicates it is charging.
4. Power button
5. LED indicates charging status
6. USB port and Power connector
