Display screens

NOTE:
3-12

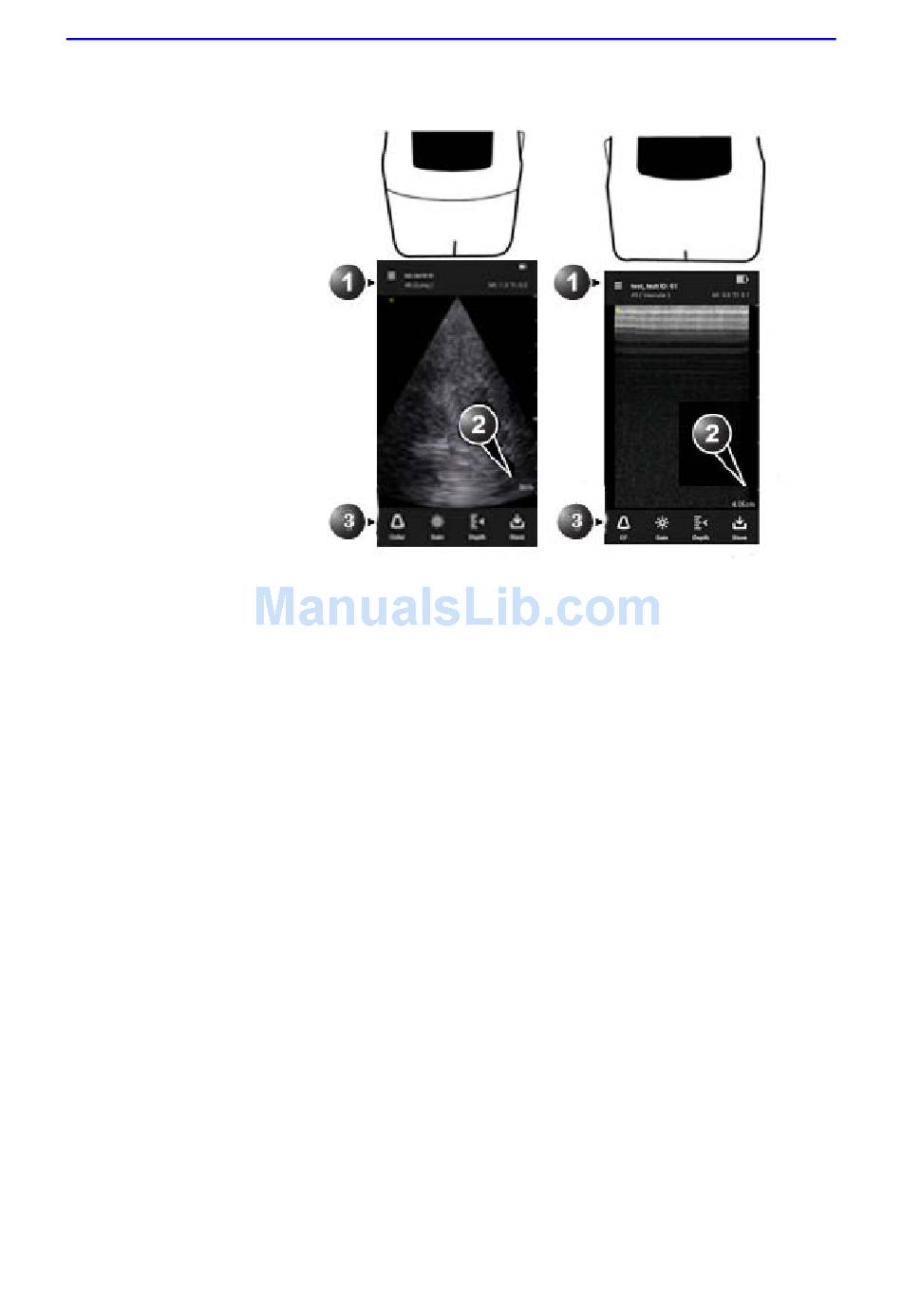

Figure 3-6. Scanning screens (Black and white mode)
Phased array transducer
1. Header
• Menu icon
• Patient information
• Exam number
• Battery level indicator
• MI and TI values
2. Depth scale
3. Footer
• Color icon
• Gain
• Depth
• Store
The screen graphics in this manual are only for illustrational
purposes. Actual screen output or graphics may vary.
Linear array transducer
1. Header
• Menu icon
• Patient information
• Exam number
• Battery level indicator
• MI and TI values
2. Depth scale
3. Footer
• Color icon
• Gain
• Depth
• Store
–
