Lightspeed Flexmike User Manual page 23

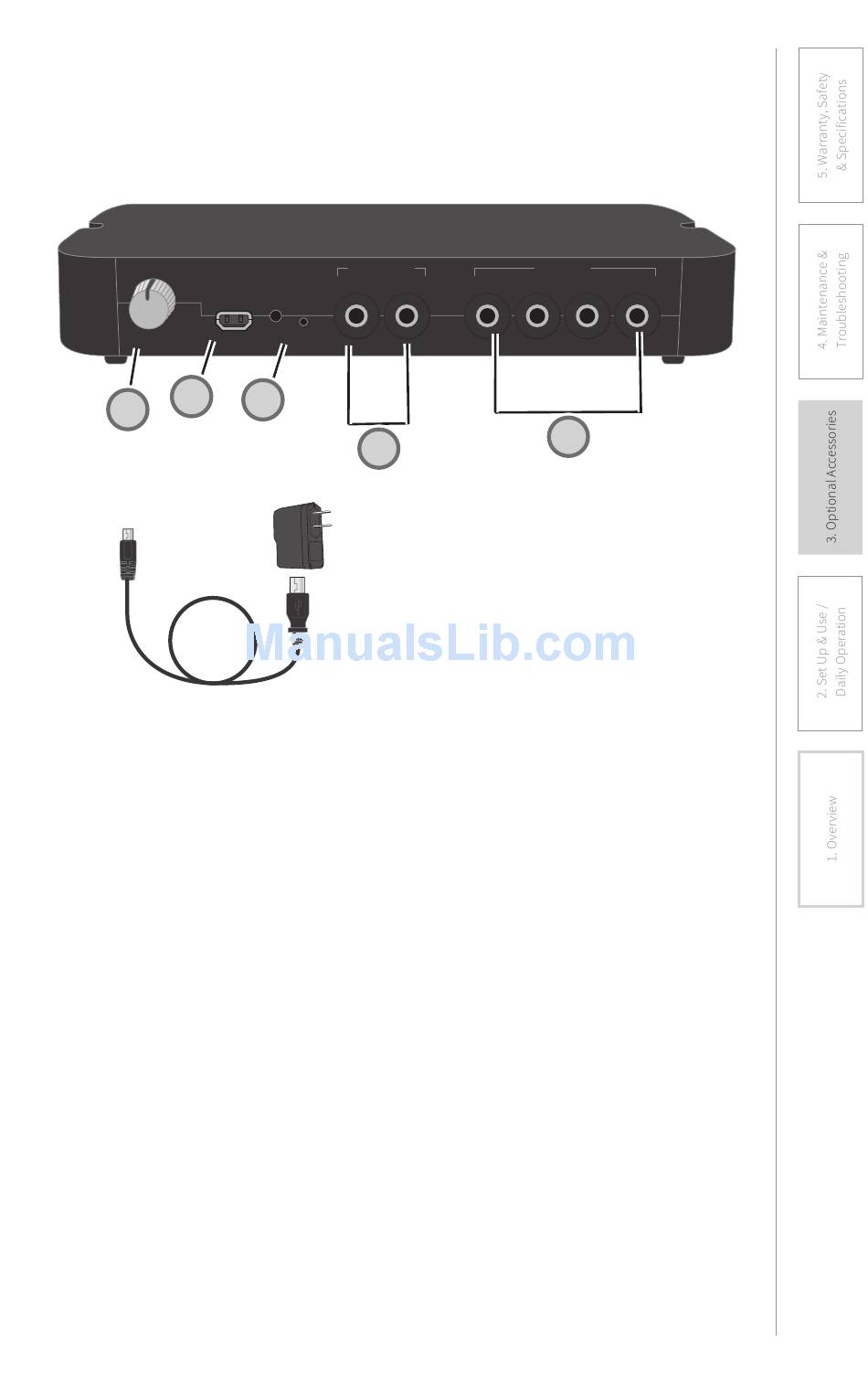

MEDIA CONNECTOR CONTROLS
AND CONNECTIONS
TONE
TREBLE BASS
2
1
1. TONE CONTROL: Adjusts the audio
tone, adding more bass or treble for a
more rich or crisp sounds.
2. USB POWER INPUT: Plug the micro
USB end of the power cable into this
USB port.
3. REGISTRATION PUSHBUTTON &
LIGHT: Pushing the registration
button in conjunction with the
registration button on the Multimike
will cause the two units to synchronize
as an operating system. The
registration light stops blinking
and the link light is solid when a
link is established. This is only used
when adding or replacing a Media
Connector.
CONT'D
AUDIO OUT
1
USB POWER
REGISTER
5V/1.5A
3
4
2
USB1 power adaptor and cable
AUDIO IN
1
2 2
5
2
4. TWO AUDIO OUTPUTS: 3.5mm stereo
jacks send audio signal to external
equipment such as a recorder or an
assistive listening device.
5. FOUR AUDIO INPUTS: Connect
standard audio devices to any of the
3.5mm stereo inputs. A provided cable
allows connectivity to RCA stereo
outputs common on DVD players and
televisions.
4
3
23
