OPTIONAL
ACCESSORIES
MEDIA CONNECTOR CONTROLS
AND CONNECTIONS
1
NOTE: When using the Media Connector
with Multimike, the maximum number of
microphones that can be used is four.

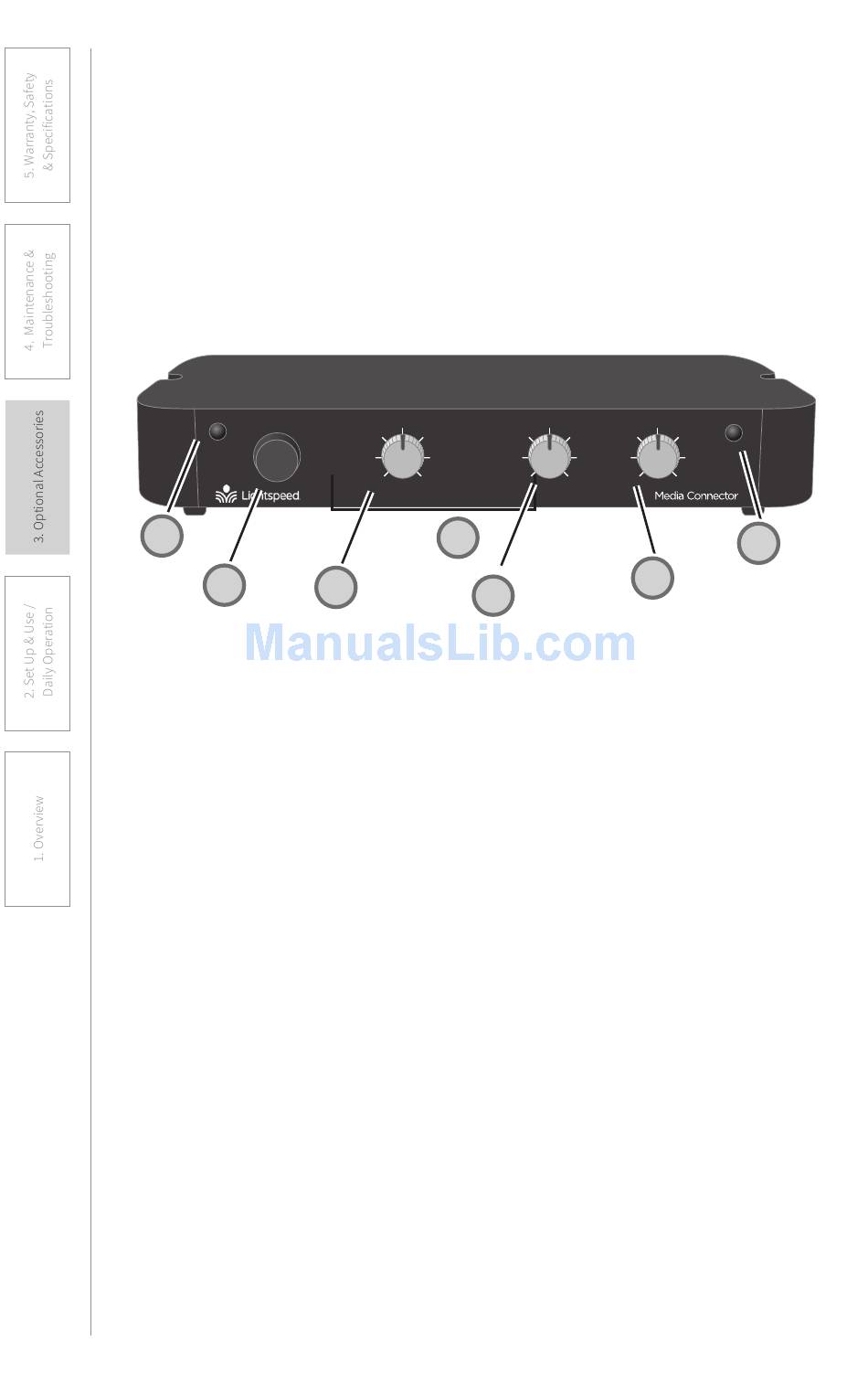

1. POWER LIGHT: This light will turn blue when
power is on.
2. POWER BUTTON: Press and hold this
pushbutton to turn the system power on
or off.
3. MICROPHONE VOLUME CONTROL: Controls
the volume level of the microphones.
4. AUDIO IN VOLUME CONTROL: Controls
the volume level of the connected audio
sources.
5. AUDIO OUT VOLUME CONTROL: Adjusts the
audio signal level output through the ALD
audio output connector.
6. AUDIO LINK LIGHT: The green light blinks
when a link is being established. The light is
solid green when the link is established.
7. SYSTEM ID LABEL: On bottom of unit
