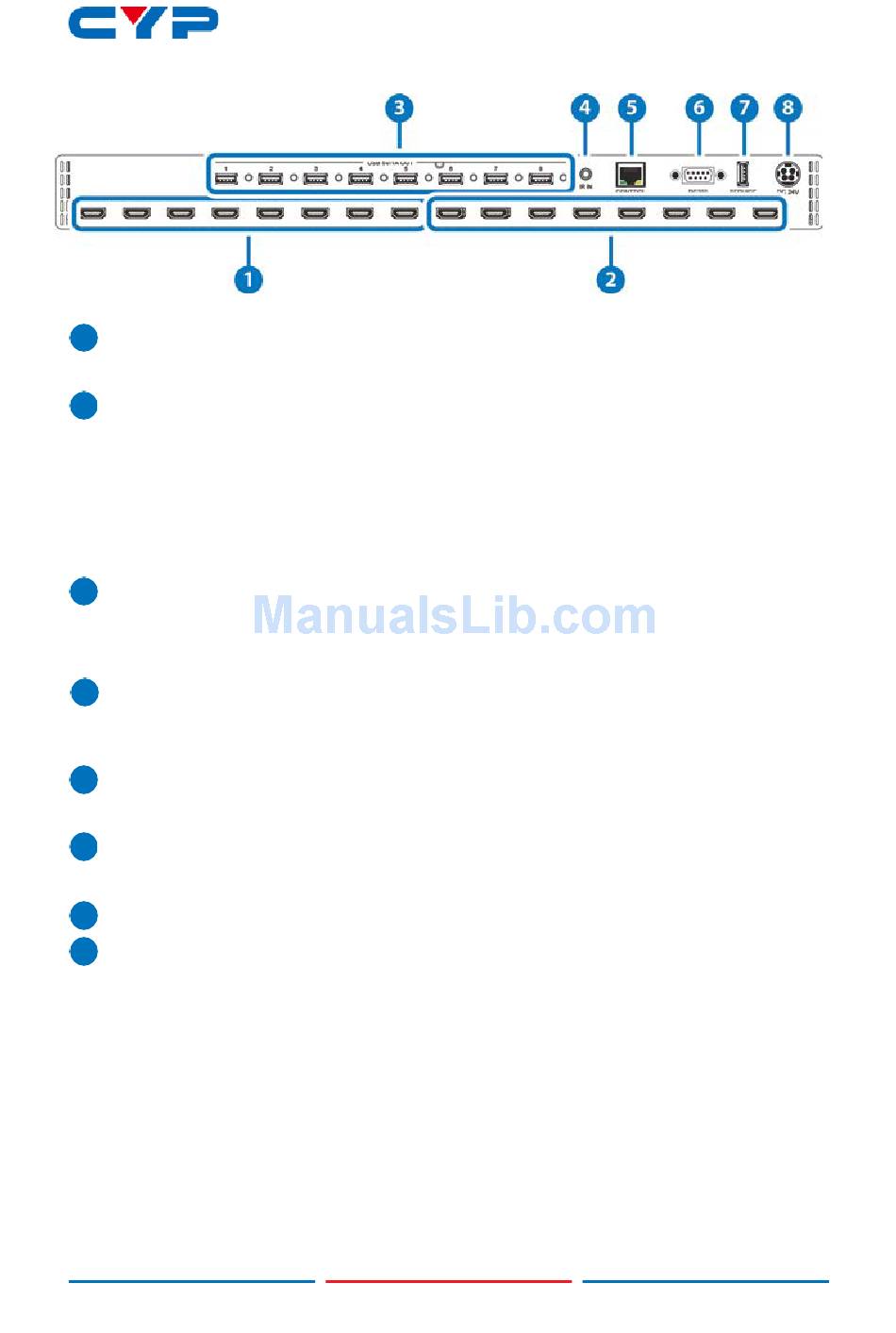

6.2 Rear Panel

1
HDMI IN 1~8: Connect to HDMI source equipment such as media
players, game consoles or set-top boxes.
2
HDMI OUT A~H: Connect the HDMI outputs to devices such as
HDMI TVs, monitors or amplifiers for digital video and audio
output. Connect the optical outputs to powered speakers or
amplifiers for digital audio output using an appropriate optical
cable. The audio from each optical output will be the same as the
HDMI output it is paired with.
3
USB POWER OUTPUT 1 ~ 8: Each USB port provides 5v/1A of power
intended for use with HDMI over AOC (Active Optical Cables) fiber
optic video extension cables.
IR IN: Connect to the provided IR Extender to extend the IR
4
control range of the unit. Ensure that the remote being used
is within direct line-of-sight of the IR Extender.
5
CONTROL: Connect directly, or through a network switch, to your
PC/laptop to control the unit via telnet/WebGUI.
6
RS232: Connect directly to a PC, laptop or other serial control
device to send RS-232 commands to control the unit.
SERVICE: This slot is reserved for firmware update use only.
7
8
DC 24V: Plug the 24V DC power adapter into the unit and connect
it to an AC wall outlet for power.
5
24V
