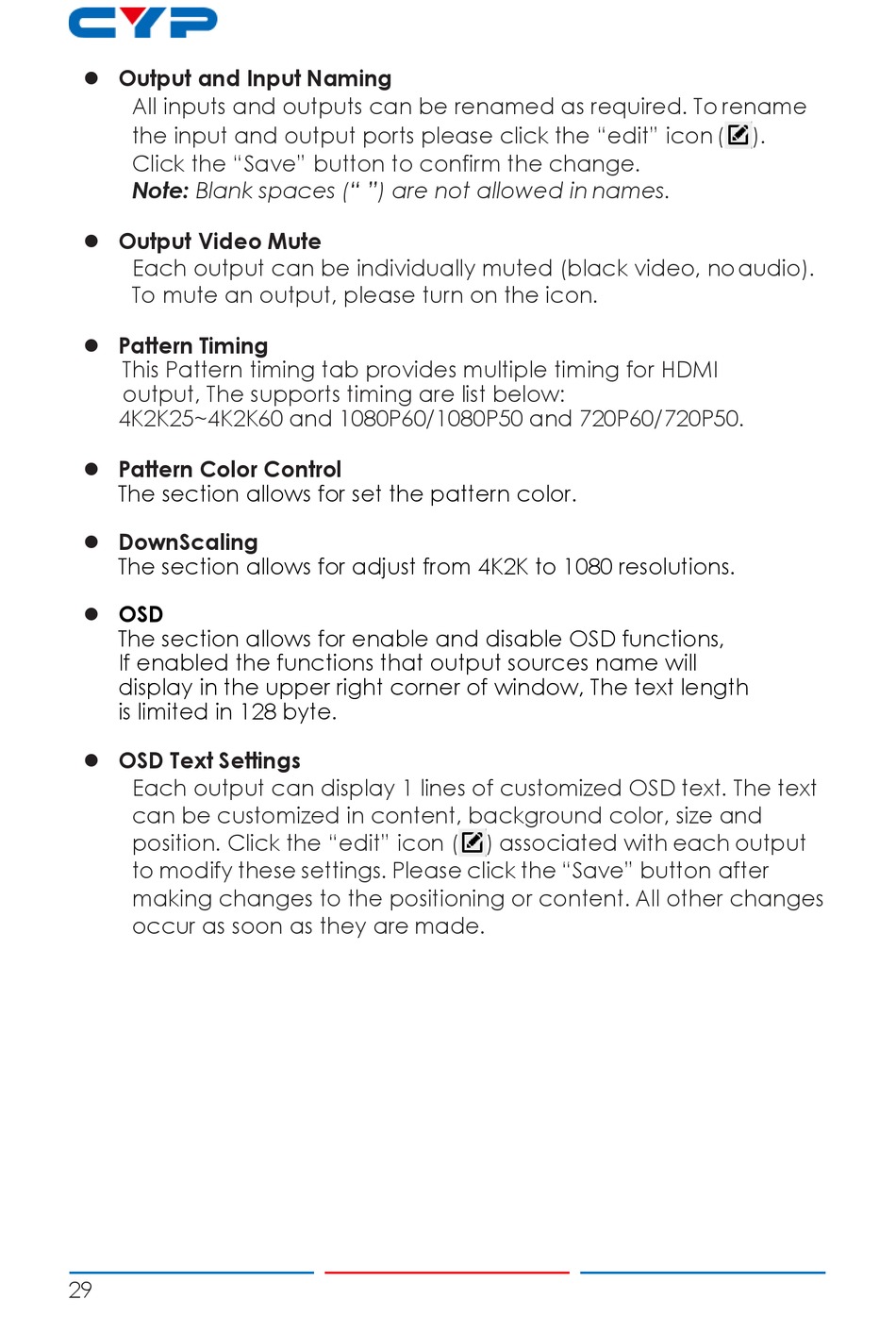

CYP CPLUS-V8H8HP Operation Manual page 34

 Output and Input Naming
All inputs and outputs can be renamed as required. To rename
the input and output ports please click the "edit" icon (
Click the "Save" button to confirm the change.
Note: Blank spaces (" ") are not allowed in names.
 Output Video Mute
Each output can be individually muted (black video, no audio).
To mute an output, please turn on the icon.
 Pattern Timing
This Pattern timing tab provides multiple timing for HDMI
output, The supports timing are list below:
4K2K25~4K2K60 and 1080P60/1080P50 and 720P60/720P50.
 Pattern Color Control
The section allows for set the pattern color.
 DownScaling
The section allows for adjust from 4K2K to 1080 resolutions.
OSD

The section allows for enable and disable OSD functions,
If enabled the functions that output sources name will
display in the upper right corner of window, The text length
is limited in 128 byte.
 OSD Text Settings
Each output can display 1 lines of customized OSD text. The text
can be customized in content, background color, size and
position. Click the "edit" icon (
to modify these settings. Please click the "Save" button after
making changes to the positioning or content. All other changes
occur as soon as they are made.
29
) associated with each output
).
