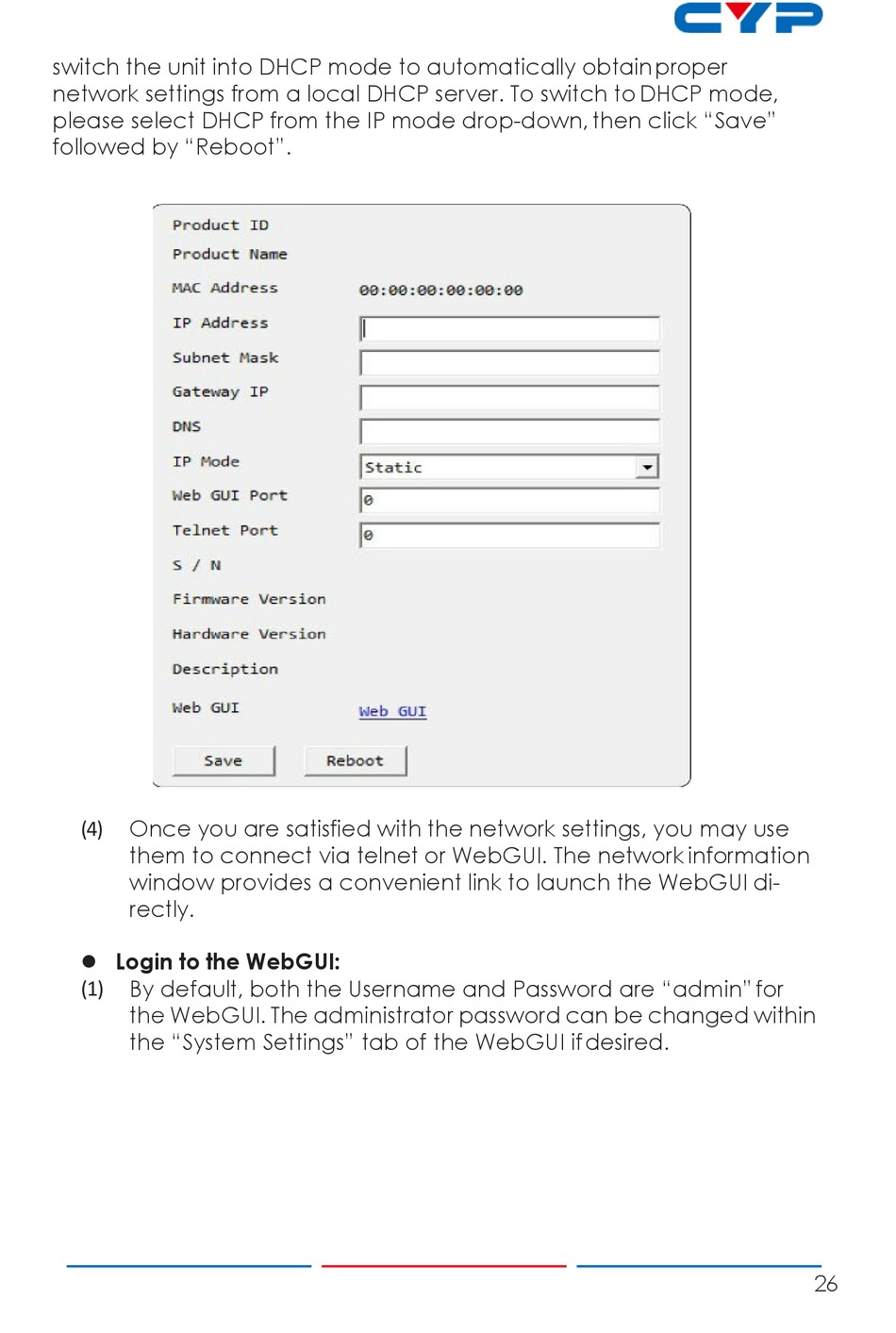

switch the unit into DHCP mode to automatically obtain proper
network settings from a local DHCP server. To switch to DHCP mode,
please select DHCP from the IP mode drop-down, then click "Save"
followed by "Reboot".
Once you are satisfied with the network settings, you may use
(4)
them to connect via telnet or WebGUI. The network information
window provides a convenient link to launch the WebGUI di-
rectly.
 Login to the WebGUI:
By default, both the Username and Password are "admin" for
(1)
the WebGUI. The administrator password can be changed within
the "System Settings" tab of the WebGUI if desired.
26
