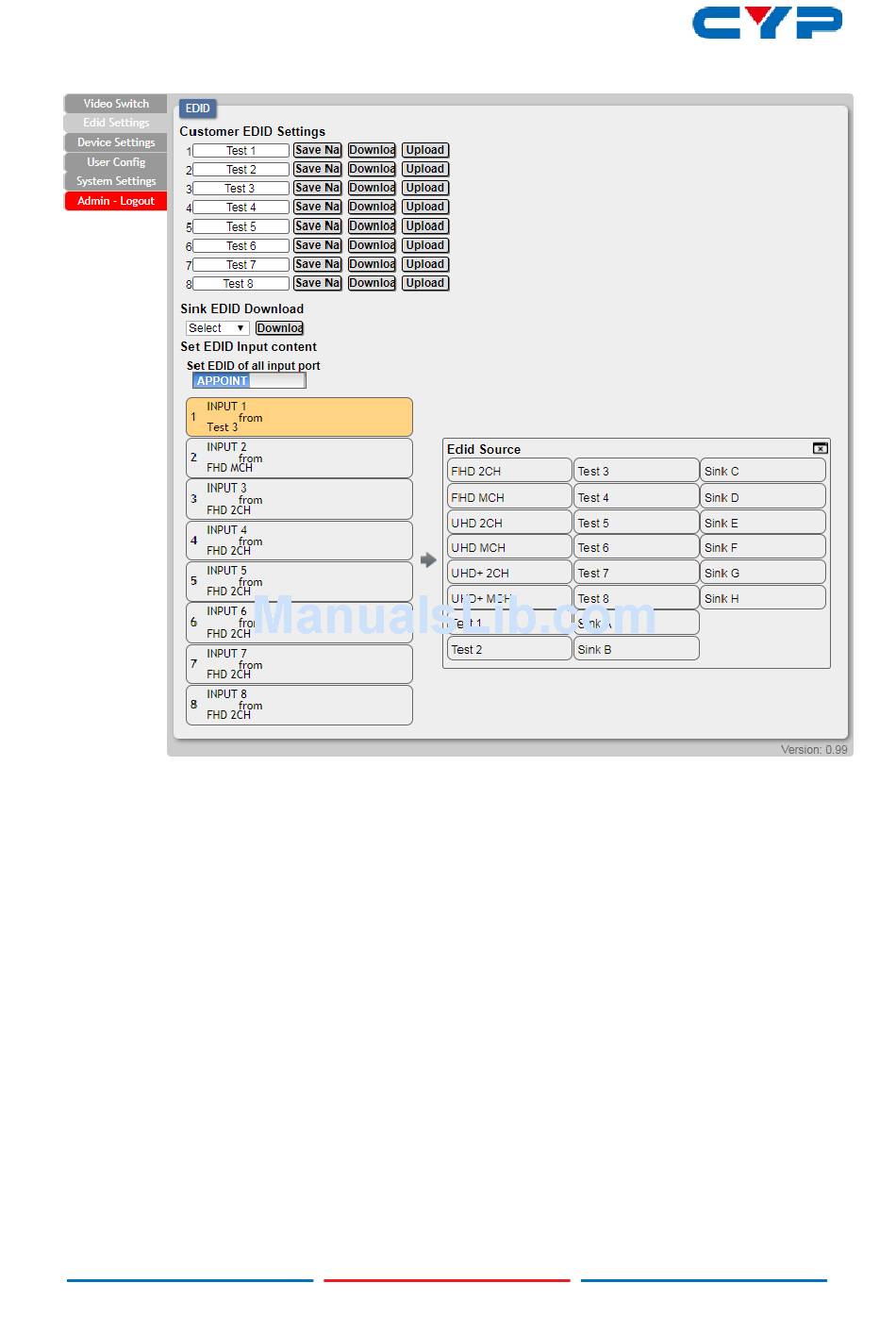

Note: This matrix comes with the following 6 default EDIDs:

1. FHD/2CH: 1080p@60Hz(148MHz), LPCM 2.0, 8-bit color

2. FHD/MCH: 1080p@60Hz(148MHz), LPCM 7.1 & bitstream, 8-bit

color.

3. 4K UHD/2CH : 3840×2160p@30Hz (297MHz), LPCM 2.0, Deep

Color (8/10/12-bit)

4. 4K UHD / MCH : 3840×2160p@30Hz (297MHz), LPCM 7.1 & bit-

stream, Deep Color (8/10/12-bit)

5. 4K UHD+ / 2Ch : 3840×2160p@60Hz (594MHz), LPCM 2.0, Deep

Color (8/10/12-bit)

6. 4K UHD+ / MCH : 3840×2160p@60Hz (594MHz), LPCM 7.1 & bit-

stream, Deep Color (8/10/12-bit)

Note: In some rare cases it is possible for custom or external EDIDs to

cause compatibility issues with certain sources. If this happens,

it is recommended to switch to one of the 6 default EDIDs for

maximum compatibility.
