6.3 Remote Control

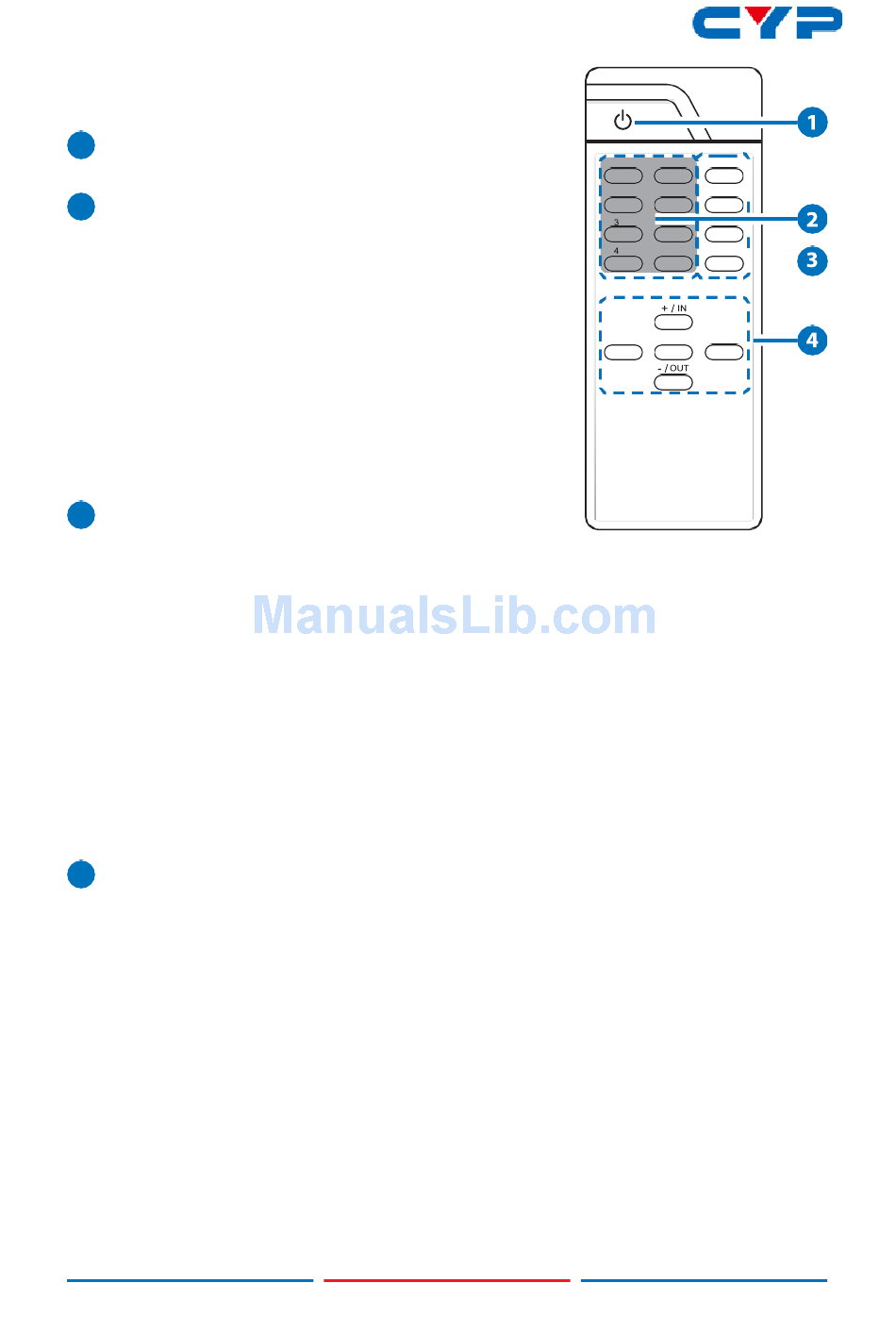

POWER: Press to power the unit on or
1
place it into stand-by mode.
1/A ~ 8/H: Press these keys to configure
2
the video routing. Press the "OUT" key
followed by the key (A~H) of the outputs
you wish to route a source to (they
will flash to indicate selection). Next,
press the "IN" key followed by the input
(1~8) you wish to route to the selected
outputs. Finally, press "ENTER" to confirm
your selection and execute the routing
change.
ALL: Press this key to select all outputs
3
simultaneously for routing. Next, press the key of the input (1~4) you
wish to route to all outputs. Finally, press "ENTER" to confirm your
selection and execute the routing change.
MUTE: Press this key to mute video output. Press the key of the input
(1~4) you wish to route then press mute key to mute video output.
INFO: Switches the information displayed on each output's OSD
between the user customized text and the current video/Ethernet
details.
PRESET: Press to enter the preset call menu in the LCD window.
Press the "+/-" buttons followed by the "ENTER" button to select
and activate the preferred preset.
4 a. MENU: Press to enter the LCD menu, or to back out from menu
items.
b. ENTER: Press to confirm a selection within the LCD menu or to go
deeper into a menu item.
c. CANCEL: Press to cancel newly made input/output/preset
routing selections before they have been confirmed.
d. Plus (+) / IN: Press "+/IN" to navigate up within menus or to
begin the selection of an input for routing.
e. Minus (-) / OUT: Press "-/OUT" to navigate down within menus or
to begin the selection of outputs for routing.
1 / A INFO
5 / E
2 / B 6 / F MUTE
/ C 7 / G PRESET
/ D 8 / H ALL
MENU ENTER CANCEL
