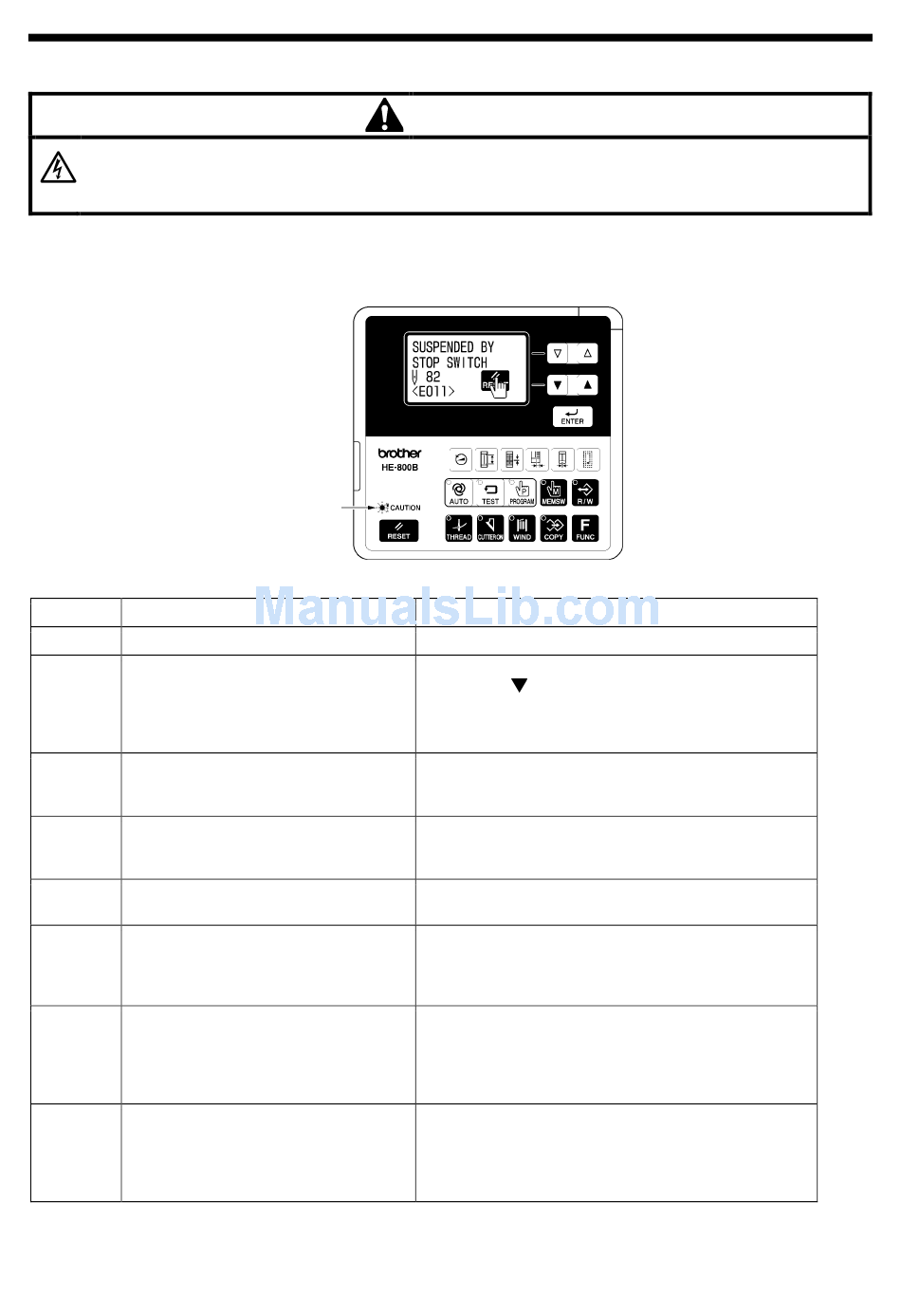

10. TABLE OF ERROR CODES

Wait at least 5 minutes after turning off the power switch and disconnecting the power cord from the wall outlet before
opening the control box cover. Touching areas where high voltages are present will result in serious injury from
electric shocks.
If a problem should occur with the sewing machine, the buzzer will sound and an error code and error message will appear in
the display.
Follow the remedy procedure to eliminate the cause of the problem.
Switch-related errors
Code
E010
Stop switch was pressed during standby.
E011
Stop switch was pressed during sewing.
Stop switch was pressed while sewing
E012
machine was operating other than during
sewing.
The stop switch was still pressed when
E015
the power was turned on, or there is a
problem with the stop switch connection.
E016
Problem with the stop switch connection.
Treadle was still depressed to the 2nd
step when the power was turned on, or
E025
treadle connection is faulty.
(Start switch if a triple pedal is being used)
Treadle was still depressed to the 1st step
when the power was turned on, or treadle
E035
connection is faulty.
(Work clamp switch if a triple pedal is
being used)
Treadle was still depressed backward
when the power was turned on, or treadle
E045
connection is faulty.
(Work clamp lifter switch if a triple pedal is
being used)
Flashing
Cause
DANGER
Remedy
Remove your finger from the stop switch (so that it is off).
Press the RESET key to clear the error.
* Press the
key to move the needle and the work
clamp so that you can continue sewing.
* If not continuing sewing, press the RESET key once
more.
Press the RESET key to clear the error.
(Home position detection will be carried out automatically.)
Turn off the power and check the connection of the stop
switch connector P9 at the main P.C. board.
Turn off the power and check the connection of the stop
switch connector P9 at the main P.C. board.
Turn off the power, and then check that connector P12 on
the motor P.C. board is properly connected. (Connector
P15 on the main P.C. board if a triple pedal is being used)
Turn off the power, and then check that connector P12 on
the motor P.C. board is properly connected. (Connector
P15 on the main P.C. board if a triple pedal is being used)
Turn off the power, and then check that connector P12 on
the motor P.C. board is properly connected. (Connector
P15 on the main P.C. board if a triple pedal is being used)
HE-800B
10. TABLE OF ERROR CODES
