PCI-DAS64/M1/16 User's Guide

Field wiring, signal termination and conditioning

You can use the following accessory boards with the C100HD50-x cable.
!
— 50-pin screw terminal board. Details are available on our web site at
CIO-MINI50
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=258.
! — 50-conductor, shielded signal connection box. Details are available on our web site at
SCB-50
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1168.
You can use the following accessory boards with the C100MMS-x cable.
! — 100-conductor, shielded signal connection box. Details are available at
SCB-100
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1169.
!
— 100-pin screw terminal board with positions for pull-up resistors. Details are available on
CIO-TERM100
our web site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=281.
You can use the following screw terminal board with the C40FF-x cable.
!
— 40-pin screw terminal board. Details are available on our web site at
CIO-MINI40
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=257.
You can use the following screw terminal boards with the C40-37F-x cable directly, or by combining the
BP40-37 adapter and C37FF-x or C37FFS-x cable.
! – 37 conductor, shielded signal connection/screw terminal box. Details on are available on our web
SCB-37
site at www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=196&pf_id=1166.
!
– 37-pin universal screw terminal board. Details are available on our web site at
CIO-MINI37
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=255.
!
CIO-TERMINAL
terminal board. Details are available on our web site at
http://www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=102&pf_id=282.
For digital signal conditioning, you can connect the PCI-DAS64/M1/16 to the following boards using the
C40-37F-x cable directly or by combining the BP40-37-x cable with the C37FF-x or C37FFS-x cable.
! – 24 Form C, 6A relays. Details on this product are available on our web site at
CIO-ERB24
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=241.
! – Eight Form C, 6A relays. Details are available on our web site at
CIO-ERB08
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=123&pf_id=240.
! – 24-channel solid state module rack. Details are available on our web site at
SSR-RACK24
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=1193.
! – 24-channel solid state module rack. Details are available on our web site at
SSR-RACK08
www.mccdaq.com/cbicatalog/cbiproduct.asp?dept_id=122&pf_id=620.
1
20
37
19

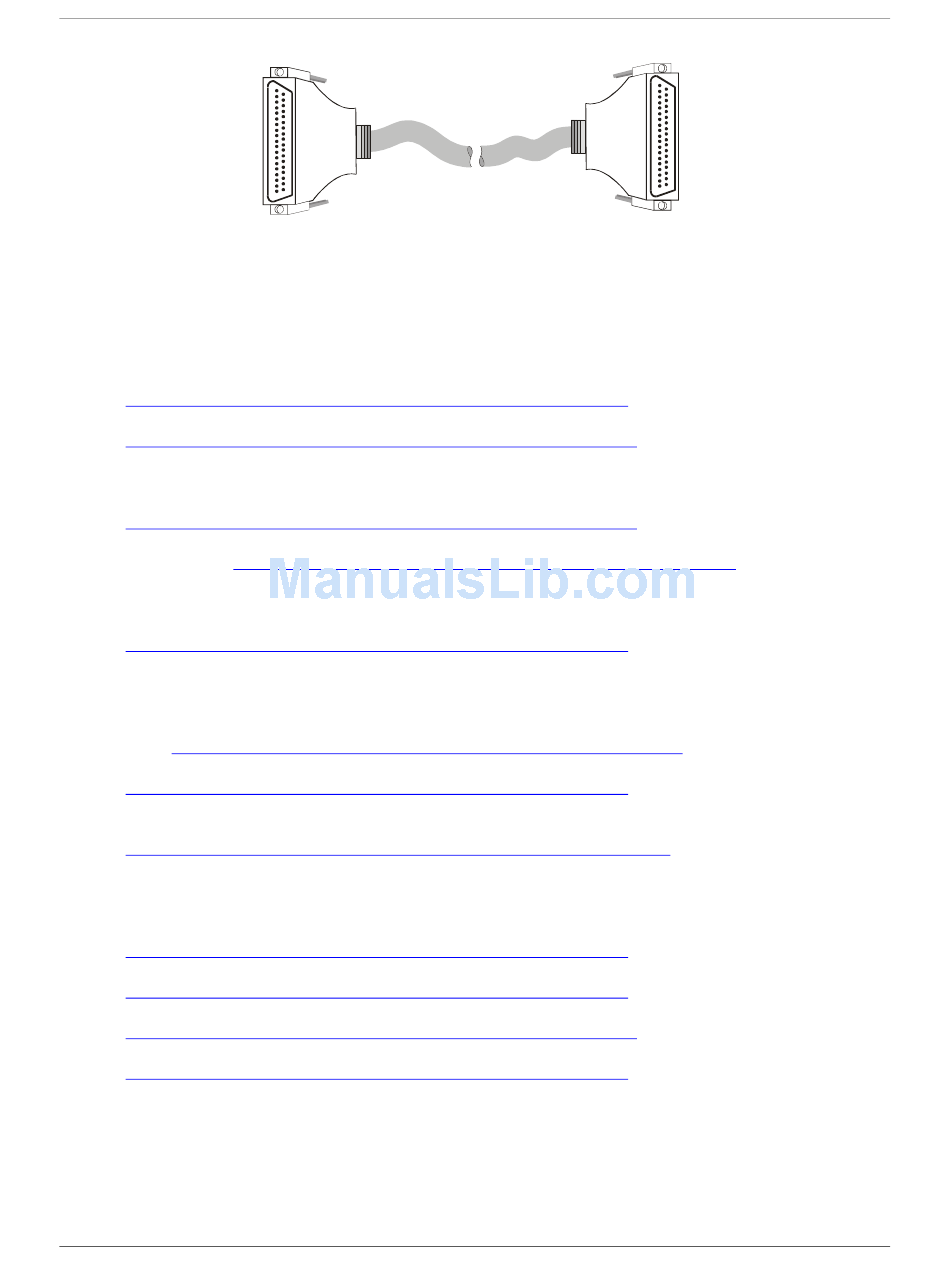

Figure 2-8. C37FFS-x cable
— Universal screw terminal with prototype area and circuitry. Includes a 37-pin screw
1
19
2-10
Installing the PCI-DAS64/M1/16
20
37
