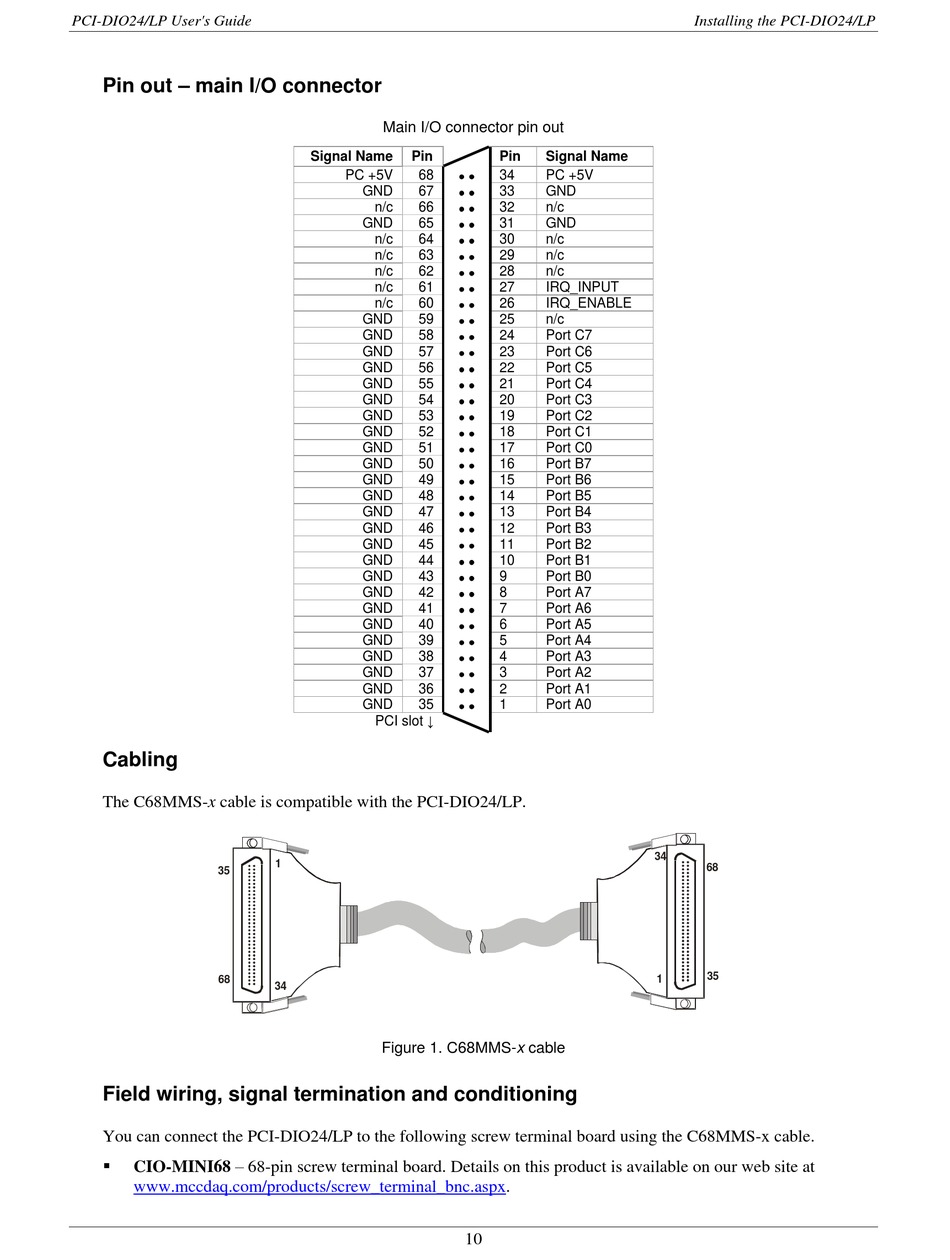

Pin out – main I/O connector

Cabling

The C68MMS-x cable is compatible with the PCI-DIO24/LP.
35
68

Field wiring, signal termination and conditioning

You can connect the PCI-DIO24/LP to the following screw terminal board using the C68MMS-x cable.
 CIO-MINI68 – 68-pin screw terminal board. Details on this product is available on our web site at
www.mccdaq.com/products/screw_terminal_bnc.aspx.
Main I/O connector pin out
Signal Name Pin
PC +5V 68
GND 67
n/c 66
GND 65
n/c 64
n/c 63
n/c 62
n/c 61
n/c 60
GND 59
GND 58
GND 57
GND 56
GND 55
GND 54
GND 53
GND 52
GND 51
GND 50
GND 49
GND 48
GND 47
GND 46
GND 45
GND 44
GND 43
GND 42
GND 41
GND 40
GND 39
GND 38
GND 37
GND 36
GND 35
PCI slot ↓
1
34
Figure 1. C68MMS-x cable
Pin Signal Name
34 PC +5V
33 GND
32 n/c
31 GND
30 n/c
29 n/c
28 n/c
27 IRQ_INPUT
26 IRQ_ENABLE
25 n/c
24 Port C7
23 Port C6
22 Port C5
21 Port C4
20 Port C3
19 Port C2
18 Port C1
17 Port C0
16 Port B7
15 Port B6
14 Port B5
13 Port B4
12 Port B3
11 Port B2
10 Port B1
9 Port B0
8 Port A7
7 Port A6
6 Port A5
5 Port A4
4 Port A3
3 Port A2
2 Port A1
1 Port A0
