PCI-DAS64/M1/16 User's Guide
Pins 1-50 are on the long side
of the "D" connector.
50 100
1 51
50 100
1 51
Pins 51-100 are on
the short side of
the "D" connector.
Stamped "Pins 51-100".

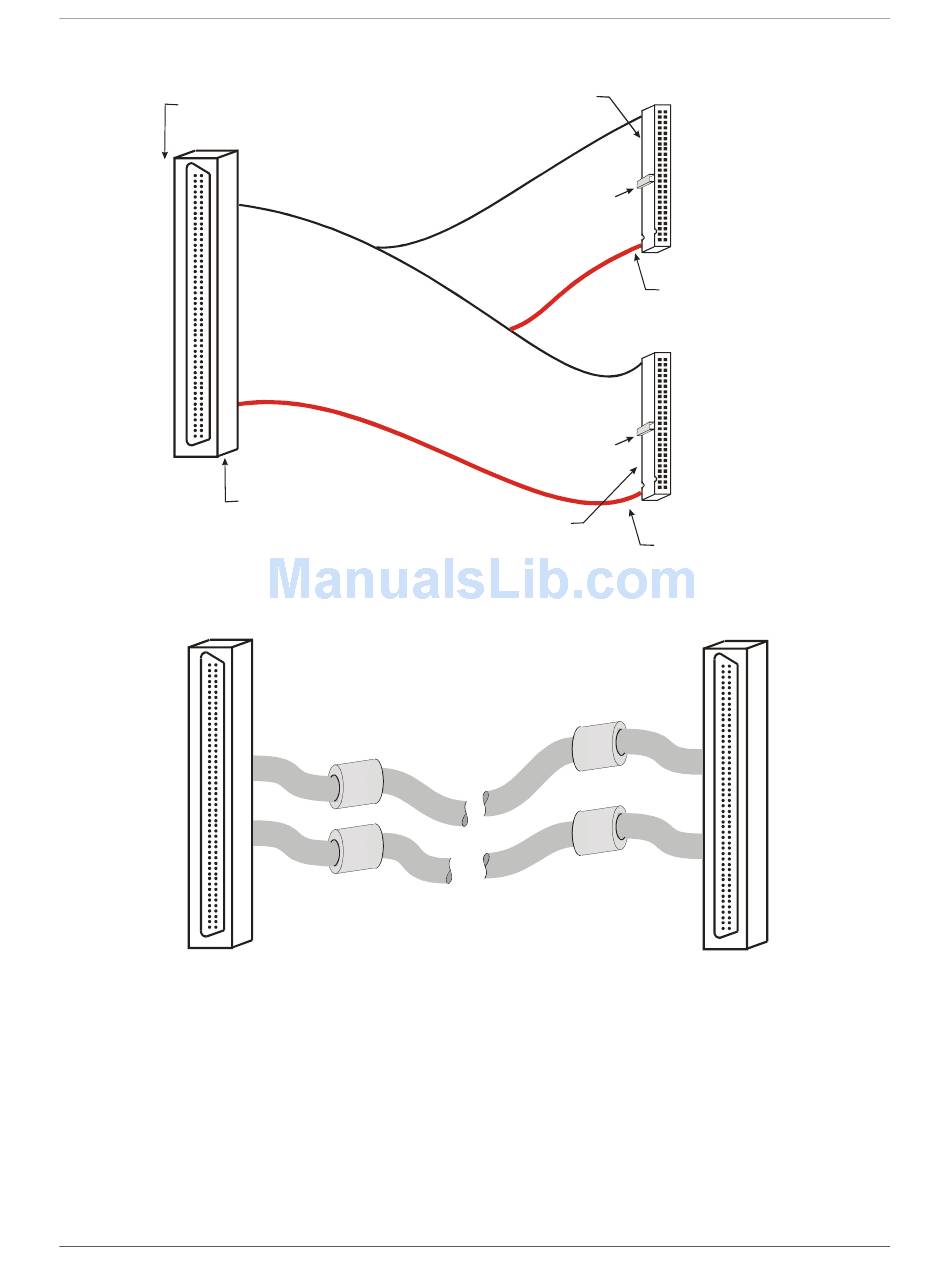

Figure 2-1. C100HD50-x cable
Figure 2-2. C100MMS-x cable
Strain relief is
stamped "Pins 1-50".
Key
Key
Strain relief is
2-6
Installing the PCI-DAS64/M1/16
49 50
2
1
The red stripe
identifies pin # 1
99 100
52
51
The red stripe
identifies pin # 51
50 100
1 51
