USB-DIO24/37 User's Guide
Installing the USB-DIO24/37

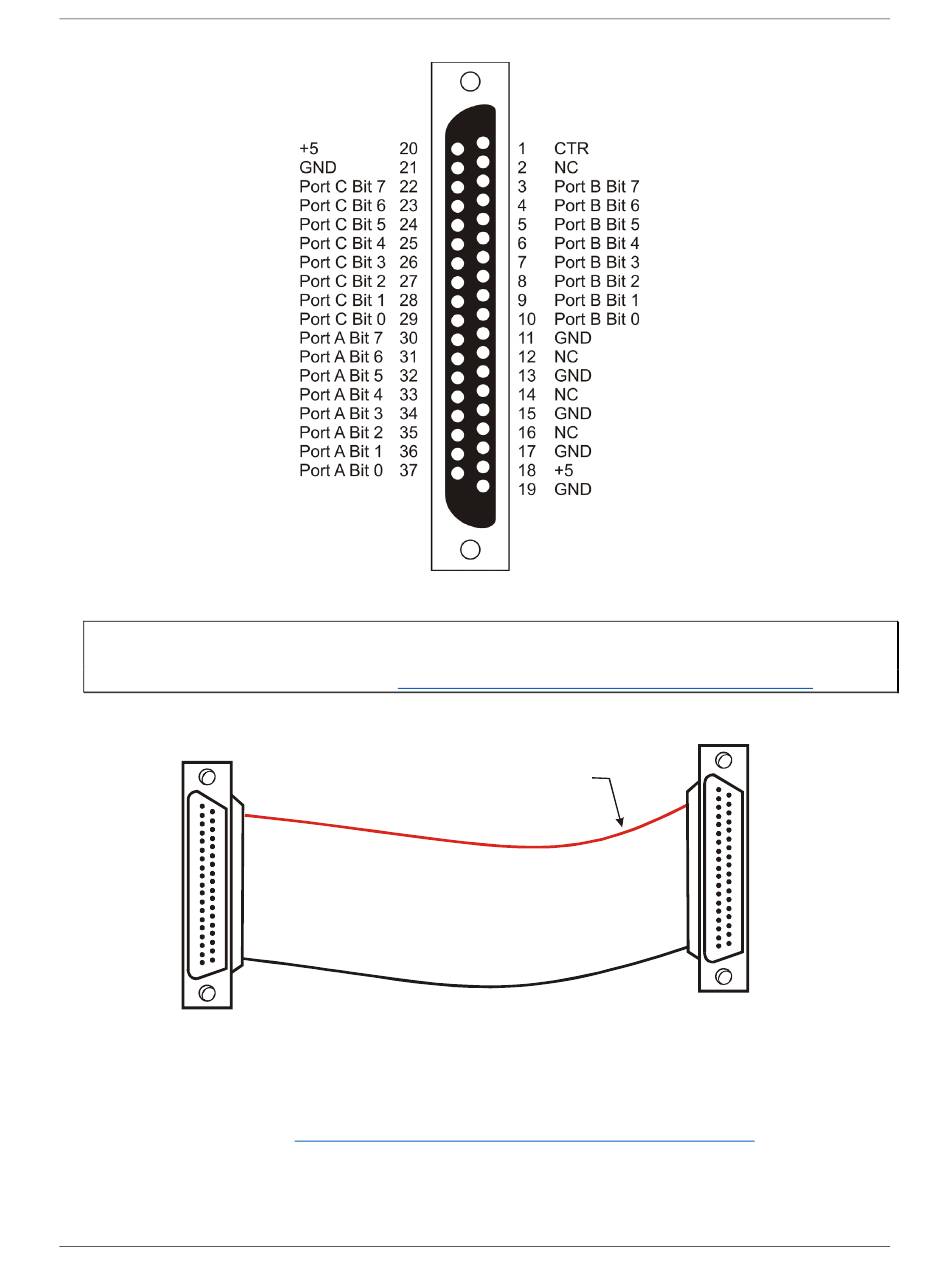

Figure 2. Connector pinout
Information on signal connections
General information regarding signal connection and configuration is available in the Guide to DAQ Signal
Connections (available for download from www.mccdaq.com/support/DAQ-Signal-Connections.aspx.)
The red stripe
1
identifies pin # 1
20
1
20
37
37
19
19
Figure 3. C37FF-x cable
Field wiring, signal termination and conditioning
Refer to the product page at
www.mccdaq.com/usb-data-acquisition/USB-DIO24-Series.aspx
for compatible
products to use with the USB-DIO24/37.
