UM2153
7

Hardware layout and configuration

The STM32L4 Discovery kit for IoT node is designed around the STM32L475VGT6 (100-
pin, LQFP package). The hardware block diagram (see
between the STM32 and peripherals (embedded ST-LINK, Arduino Uno V3 shields, PMOD
connector, Quad-SPI Flash memory, USB OTG connectors, digital microphones, various
ST-MEMS sensors and the four RF modules (Wi-Fi, Bluetooth, Sub-GHz and NFC)).
Figure 4 and Figure 5 help users to locate these features on the STM32L4 Discovery kit.

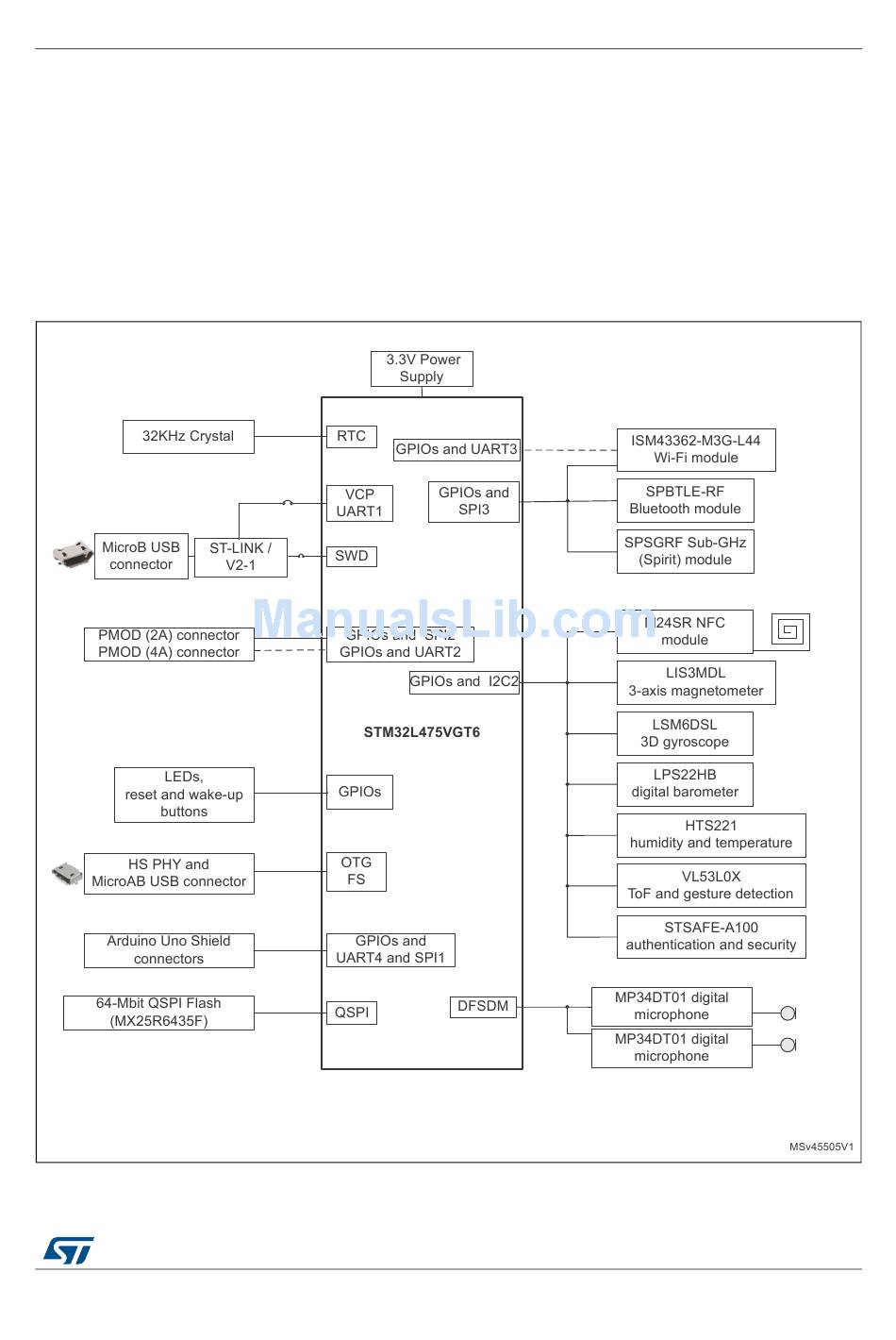

Figure 2. Hardware block diagram

UM2153 Rev 4
Hardware layout and configuration
Figure 2) illustrates the connection
9/57
56
