Drive cage

1.
Prepare the computer for disassembly
2.
Remove the access panel
3.
Remove the hard drive
4.

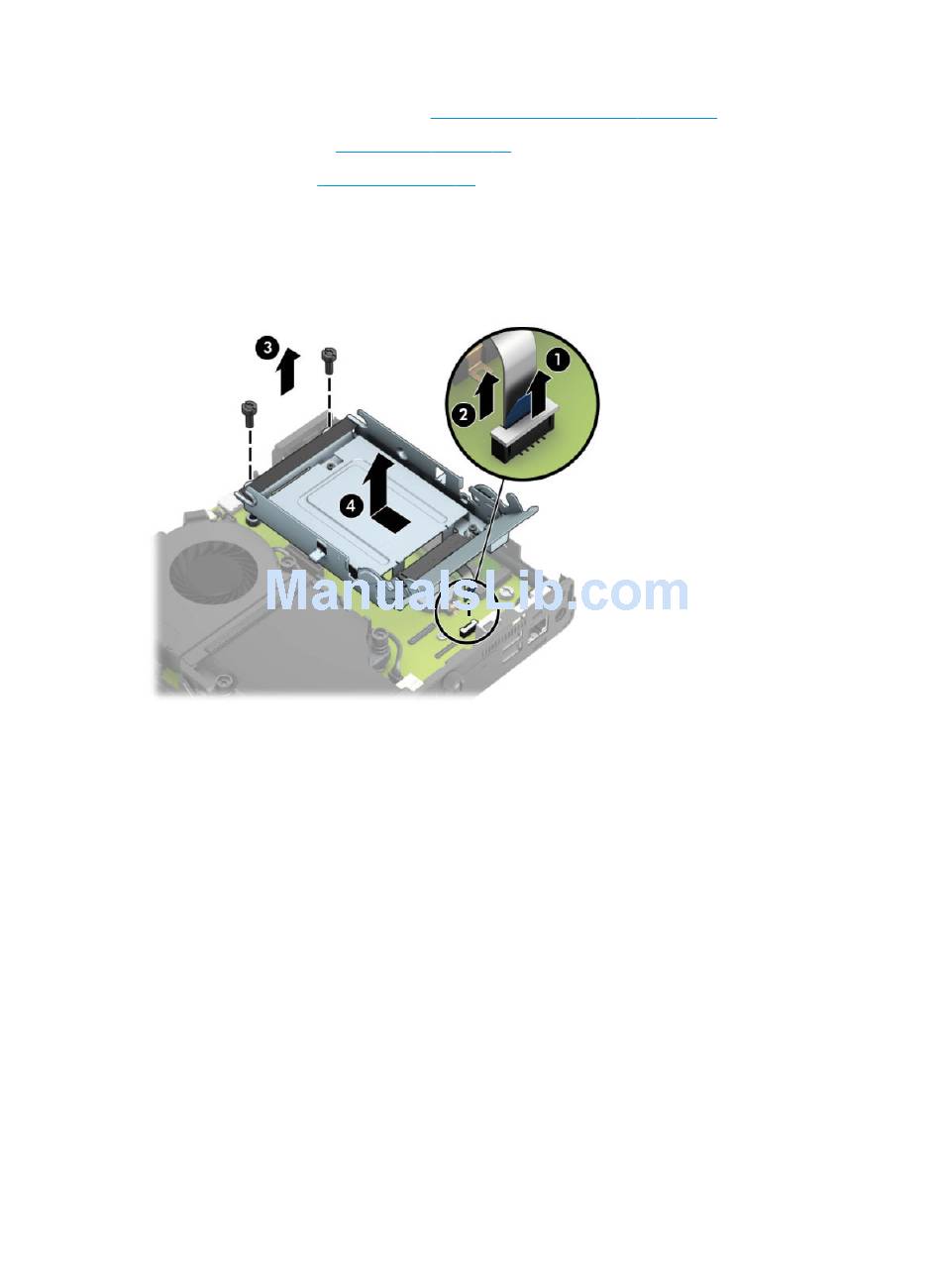

Lift the connector latch on the system board (1), and then disconnect the hard drive cable using the pull
tab on the cable (2).
5.
Remove the two Torx T15 screws (3) that secure the hard drive cage to the chassis.
6.
Slide the hard drive cage back, and then lift it out of the chassis (4).
To install the drive cage, reverse the removal procedure.
22
Chapter 4 Removal and replacement procedures
(Preparation for disassembly on page
(Access panel on page
(Hard drive on page
20).
16).
15).
