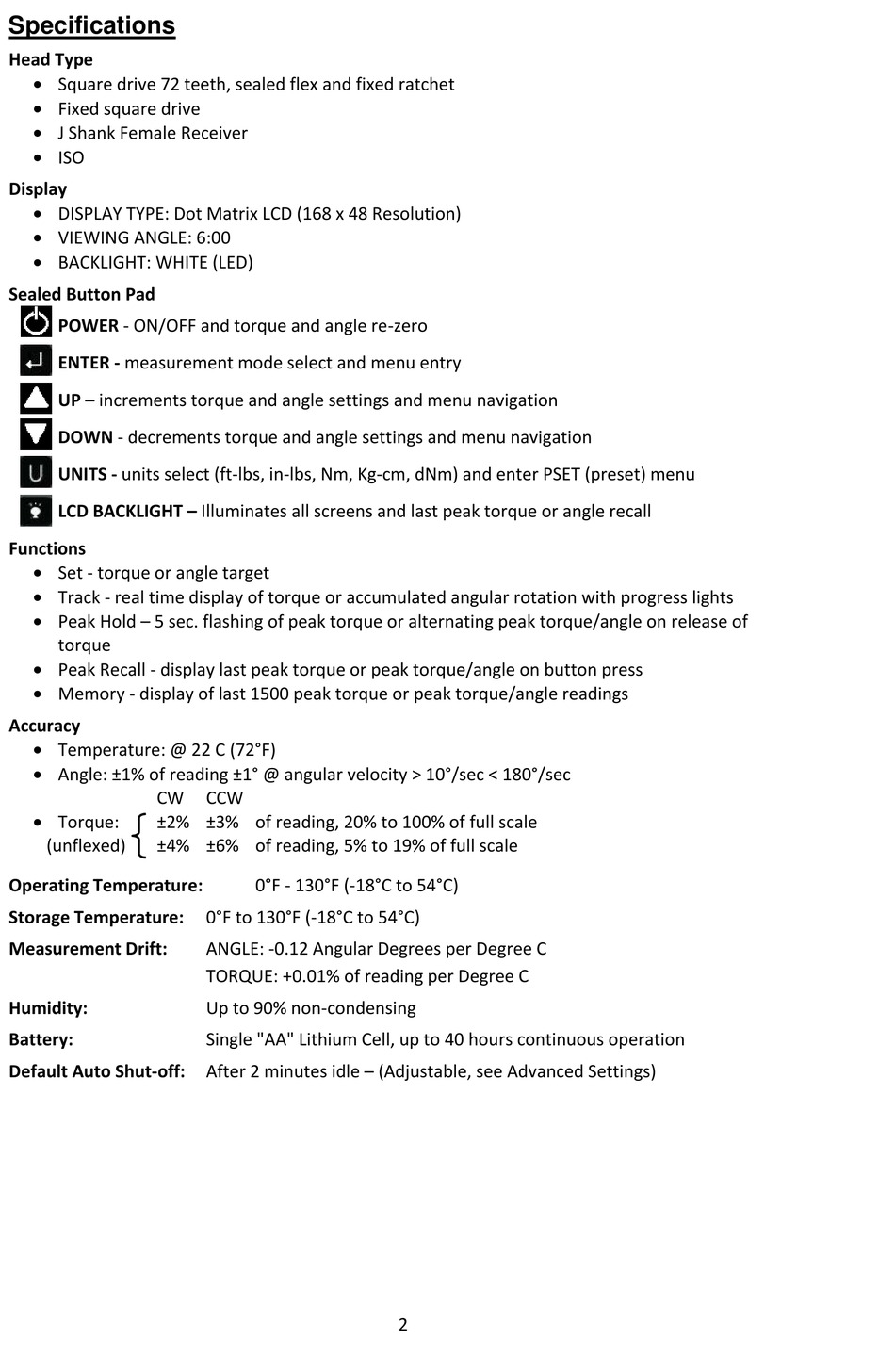

Specifications

Head Type
 Square drive 72 teeth, sealed flex and fixed ratchet
 Fixed square drive
 J Shank Female Receiver
 ISO
Display
 DISPLAY TYPE: Dot Matrix LCD (168 x 48 Resolution)
 VIEWING ANGLE: 6:00
 BACKLIGHT: WHITE (LED)
Sealed Button Pad
POWER - ON/OFF and torque and angle re-zero
ENTER - measurement mode select and menu entry
UP – increments torque and angle settings and menu navigation
DOWN - decrements torque and angle settings and menu navigation
UNITS - units select (ft-lbs, in-lbs, Nm, Kg-cm, dNm) and enter PSET (preset) menu
LCD BACKLIGHT – Illuminates all screens and last peak torque or angle recall
Functions
 Set - torque or angle target
 Track - real time display of torque or accumulated angular rotation with progress lights
 Peak Hold – 5 sec. flashing of peak torque or alternating peak torque/angle on release of
torque
 Peak Recall - display last peak torque or peak torque/angle on button press
 Memory - display of last 1500 peak torque or peak torque/angle readings
Accuracy
 Temperature: @ 22 C (72°F)
 Angle: ±1% of reading ±1° @ angular velocity > 10°/sec < 180°/sec
CW
 Torque:
±2% ±3% of reading, 20% to 100% of full scale
(unflexed) ±4% ±6% of reading, 5% to 19% of full scale
Operating Temperature:
Storage Temperature:
Measurement Drift:
Humidity:
Battery:
Default Auto Shut-off:
CCW
0°F - 130°F (-18°C to 54°C)
0°F to 130°F (-18°C to 54°C)
ANGLE: -0.12 Angular Degrees per Degree C
TORQUE: +0.01% of reading per Degree C
Up to 90% non-condensing
Single "AA" Lithium Cell, up to 40 hours continuous operation
After 2 minutes idle – (Adjustable, see Advanced Settings)
