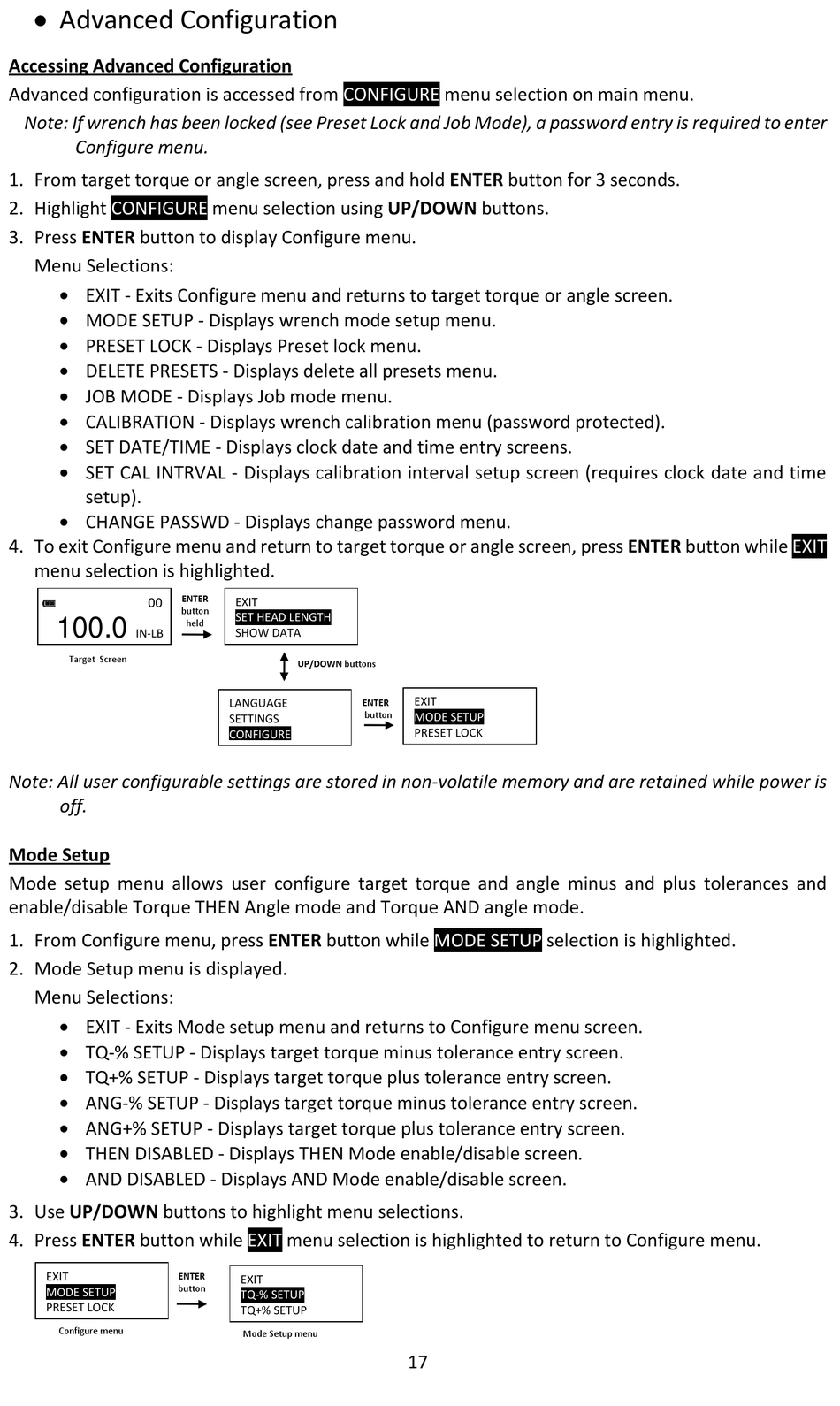

 Advanced Configuration
Accessing Advanced Configuration
Advanced configuration is accessed from
Note: If wrench has been locked (see Preset Lock and Job Mode), a password entry is required to enter
Configure menu.
1. From target torque or angle screen, press and hold ENTER button for 3 seconds.
2. Highlight CONFIGURE
3. Press ENTER button to display Configure menu.
Menu Selections:
 EXIT - Exits Configure menu and returns to target torque or angle screen.
 MODE SETUP - Displays wrench mode setup menu.
 PRESET LOCK - Displays Preset lock menu.
 DELETE PRESETS - Displays delete all presets menu.
 JOB MODE - Displays Job mode menu.
 CALIBRATION - Displays wrench calibration menu (password protected).
 SET DATE/TIME - Displays clock date and time entry screens.
 SET CAL INTRVAL - Displays calibration interval setup screen (requires clock date and time
setup).
 CHANGE PASSWD - Displays change password menu.
4. To exit Configure menu and return to target torque or angle screen, press ENTER button while
menu selection is highlighted.
00
100.0
IN-LB
Target Screen
Note: All user configurable settings are stored in non-volatile memory and are retained while power is
off.
Mode Setup
Mode setup menu allows user configure target torque and angle minus and plus tolerances and
enable/disable Torque THEN Angle mode and Torque AND angle mode.
1. From Configure menu, press ENTER button while
2. Mode Setup menu is displayed.
Menu Selections:
 EXIT - Exits Mode setup menu and returns to Configure menu screen.
 TQ-% SETUP - Displays target torque minus tolerance entry screen.
 TQ+% SETUP - Displays target torque plus tolerance entry screen.
 ANG-% SETUP - Displays target torque minus tolerance entry screen.
 ANG+% SETUP - Displays target torque plus tolerance entry screen.
 THEN DISABLED - Displays THEN Mode enable/disable screen.
 AND DISABLED - Displays AND Mode enable/disable screen.
3. Use UP/DOWN buttons to highlight menu selections.
4. Press ENTER button while
EXIT
MODE SETUPs
PRESET LOCK
Configure menu
menu selection using UP/DOWN buttons.
ENTER
EXIT
button
SET HEAD LENGTH
held
SHOW DATA
UP/DOWN buttons
LANGUAGE
SETTINGS
CONFIGURE
EXIT menu selection is highlighted to return to Configure menu.
ENTER
EXIT
button
TQ-% SETUP
TQ+% SETUP
Mode Setup menu
CONFIGURE menu selection on main menu.
EXIT
ENTER
button
MODE SETUP
PRESET LOCK
MODE SETUP
17
selection is highlighted.
EXIT
