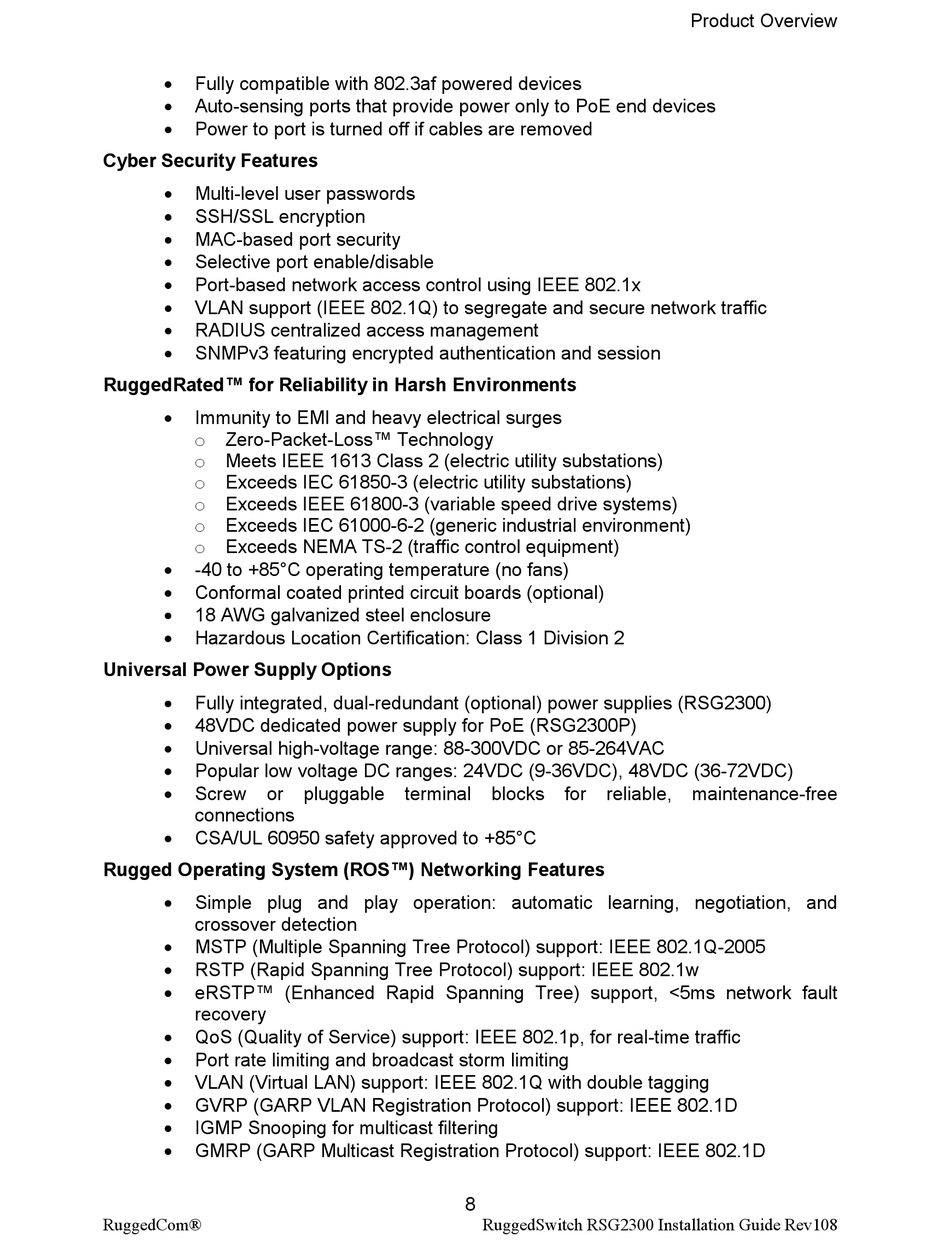

RuggedCom RuggedSwitch RSG2300 Installation Manual page 8


Fully compatible with 802.3af powered devices

Auto-sensing ports that provide power only to PoE end devices

Power to port is turned off if cables are removed
Cyber Security Features

Multi-level user passwords

SSH/SSL encryption

MAC-based port security

Selective port enable/disable

Port-based network access control using IEEE 802.1x

VLAN support (IEEE 802.1Q) to segregate and secure network traffic

RADIUS centralized access management

SNMPv3 featuring encrypted authentication and session
RuggedRated™ for Reliability in Harsh Environments

Immunity to EMI and heavy electrical surges
o Zero-Packet-Loss™ Technology
o Meets IEEE 1613 Class 2 (electric utility substations)
o Exceeds IEC 61850-3 (electric utility substations)
o Exceeds IEEE 61800-3 (variable speed drive systems)
o Exceeds IEC 61000-6-2 (generic industrial environment)
o Exceeds NEMA TS-2 (traffic control equipment)

-40 to +85°C operating temperature (no fans)

Conformal coated printed circuit boards (optional)

18 AWG galvanized steel enclosure

Hazardous Location Certification: Class 1 Division 2
Universal Power Supply Options

Fully integrated, dual-redundant (optional) power supplies (RSG2300)

48VDC dedicated power supply for PoE (RSG2300P)

Universal high-voltage range: 88-300VDC or 85-264VAC

Popular low voltage DC ranges: 24VDC (9-36VDC), 48VDC (36-72VDC)

Screw or
connections

CSA/UL 60950 safety approved to +85°C
Rugged Operating System (ROS™) Networking Features

Simple plug and play operation: automatic learning, negotiation, and
crossover detection

MSTP (Multiple Spanning Tree Protocol) support: IEEE 802.1Q-2005

RSTP (Rapid Spanning Tree Protocol) support: IEEE 802.1w

eRSTP™ (Enhanced Rapid Spanning Tree) support, <5ms network fault
recovery

QoS (Quality of Service) support: IEEE 802.1p, for real-time traffic

Port rate limiting and broadcast storm limiting

VLAN (Virtual LAN) support: IEEE 802.1Q with double tagging

GVRP (GARP VLAN Registration Protocol) support: IEEE 802.1D

IGMP Snooping for multicast filtering

GMRP (GARP Multicast Registration Protocol) support: IEEE 802.1D
RuggedCom®
pluggable terminal
8
blocks for reliable,
RuggedSwitch RSG2300 Installation Guide Rev108
Product Overview
maintenance-free
