G.3 Quick Start Guide

When a camera system is shipped with a spectroscopy-mount adapter kit, a quick start guide
for mounting a PI-MAX4 with spectroscopy-mount adapter to an Acton spectrograph is
included. Typically, the guide assumes that there is a spectroscopy-mount adapter
pre-mounted to the PI-MAX4 camera.
G.4 Standard C-, F-, and Spectroscopy-Mount Adapters
Figure G-2

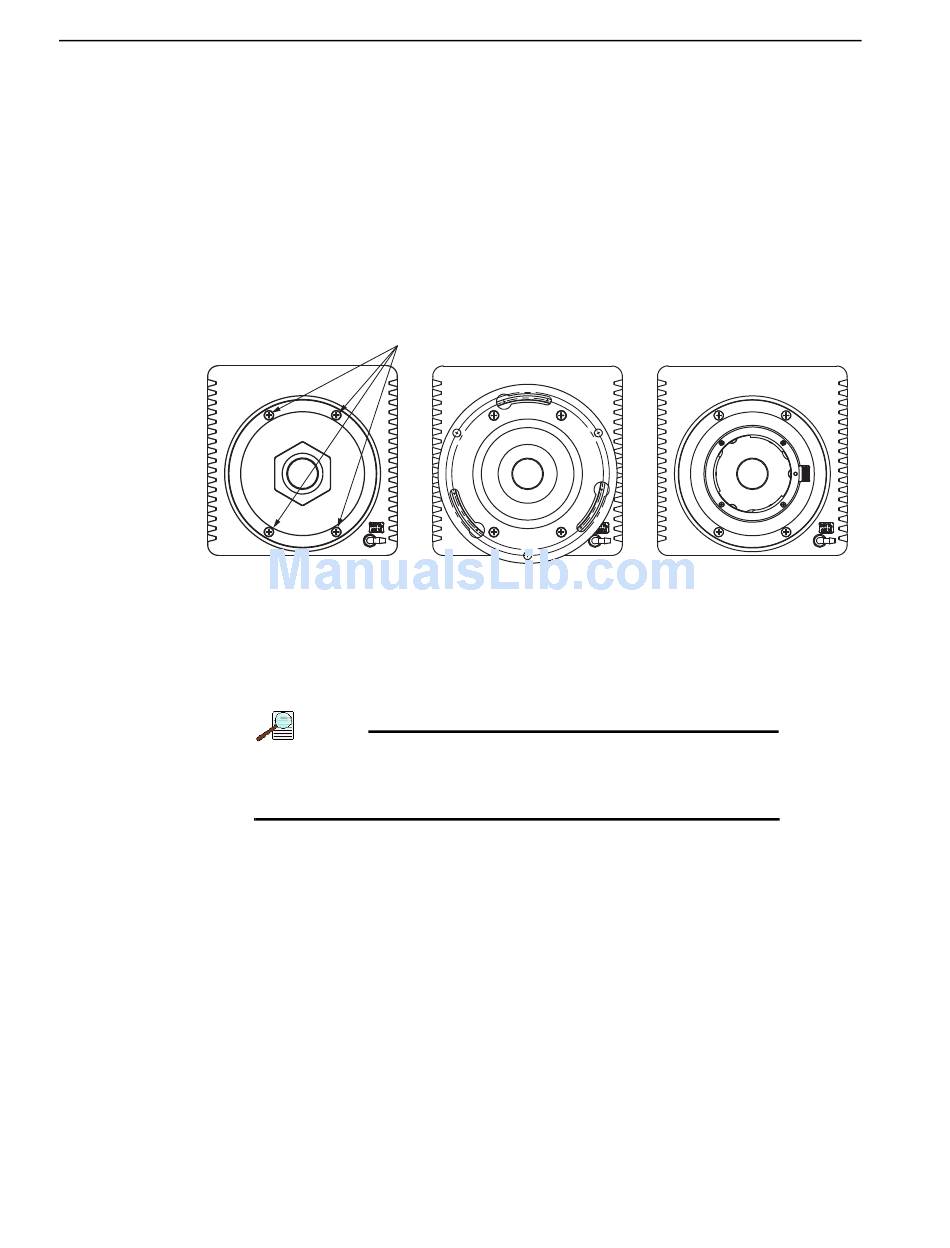

Figure G-2: Standard PI-MAX4 Mount Adapters

Perform the following procedure to replace one adapter with another:
Use the supplied screwdriver to remove the four (4) Phillips head screws that secure the
1.
current adapter to the front of the PI-MAX4.
Remove the existing adapter and store it in a safe place.
2.
Using the four (4) screws removed in step 1, mount the new adapter to the front of the
3.
PI-MAX4.
®
PI-MAX 4 System Manual
shows three different mounts that are available for use on a PI-MAX4 camera.
Mounting Screws
(4 Places)
C-Mount
NOTE:
If the Phillips end of the screwdriver is not available, pull the
driver shaft out of the handle, flip the shaft, and insert the flat
end into the handle.
Spec-Mount
Issue 9
F-Mount
