Chapter 3. Parameter Settings; Parameter Descriptions; Multicast Address Filter - Lattice Semiconductor 10 Gb+ Ethernet MAC IP User Manual

The IPexpress™ tool is used to create IP and architectural modules in the Diamond and ispLEVER software. Refer
to "IP Core Generation" on page
Table 3-1 provides the list of user configurable parameters for the 10 Gb+ Ethernet MAC IP core. The parameter
settings are specified using the 10 Gb+ Ethernet MAC IP core Configuration GUI in IPexpress.
Table 3-1. 10 Gb+ Ethernet MAC IP Core Configuration Parameters
Core Generation Options

Multicast Address Filter

Evaluation Generation Options
PHY Interface
Clock Constraints
Management Statistics
Bits in Counters[13-40]

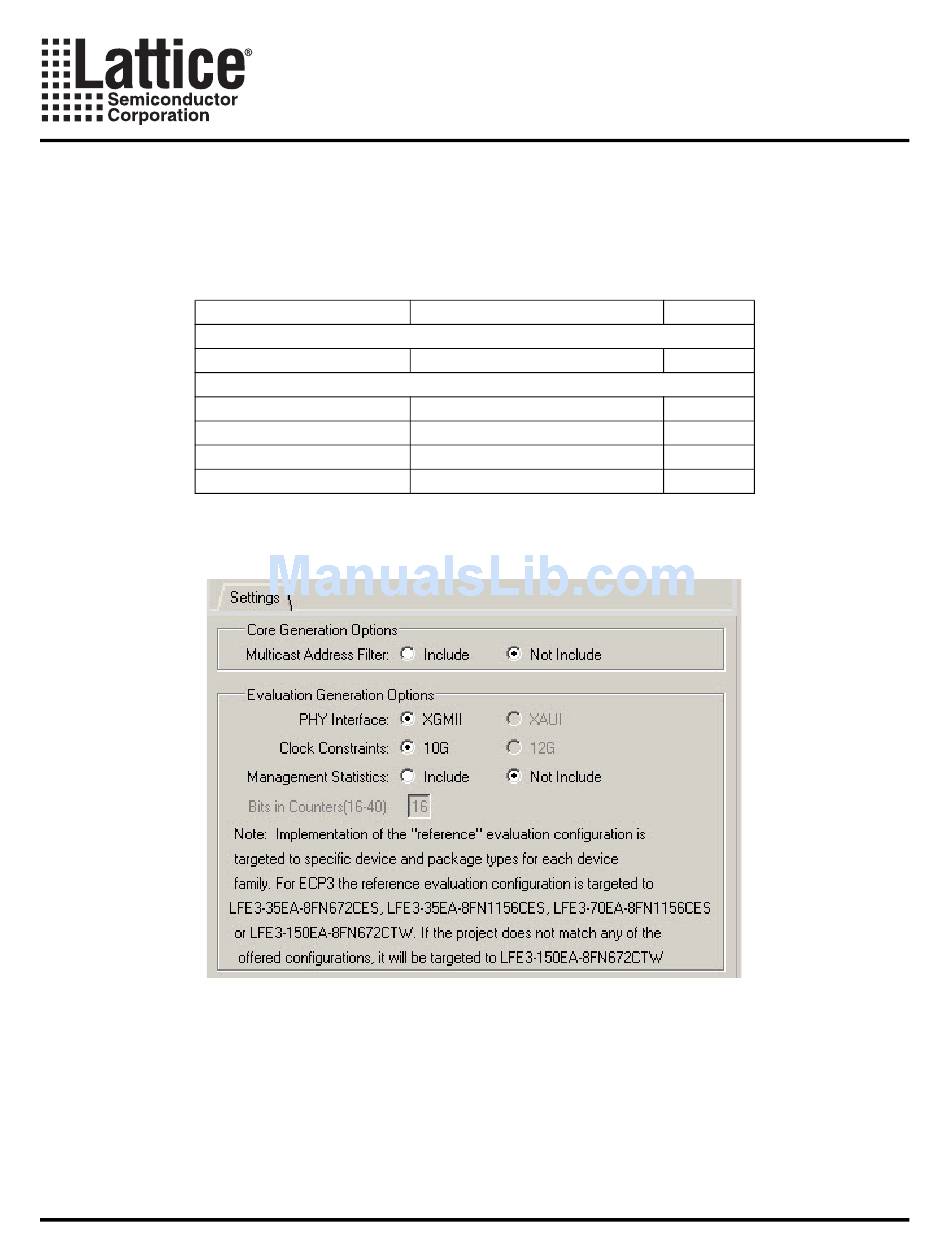

Figure 3-1 shows the 10 Gb+ Ethernet MAC IP Core configuration dialog box.
Figure 3-1. 10 Gb+ Ethernet MAC IP Core Configuration Dialog Box

Parameter Descriptions

This section describes the available parameters for the 10 Gb+ Ethernet MAC IP core.
Multicast Address Filter
This parameter determines whether the optional Multicast Address Filtering will be included in the core's imple-
mentation.
IPUG39_02.9, December 2010
16for a description on how to generate the IP.
Parameter
Parameter Settings
Value Range
Include/Not Include
XGMI/XAUI
10G/12G
Include/Not Include
16-40
14 10 Gb+ Ethernet MAC IP Core User's Guide
Chapter 3:
Default
Not Include
XGMI
10G
Not Include
16
