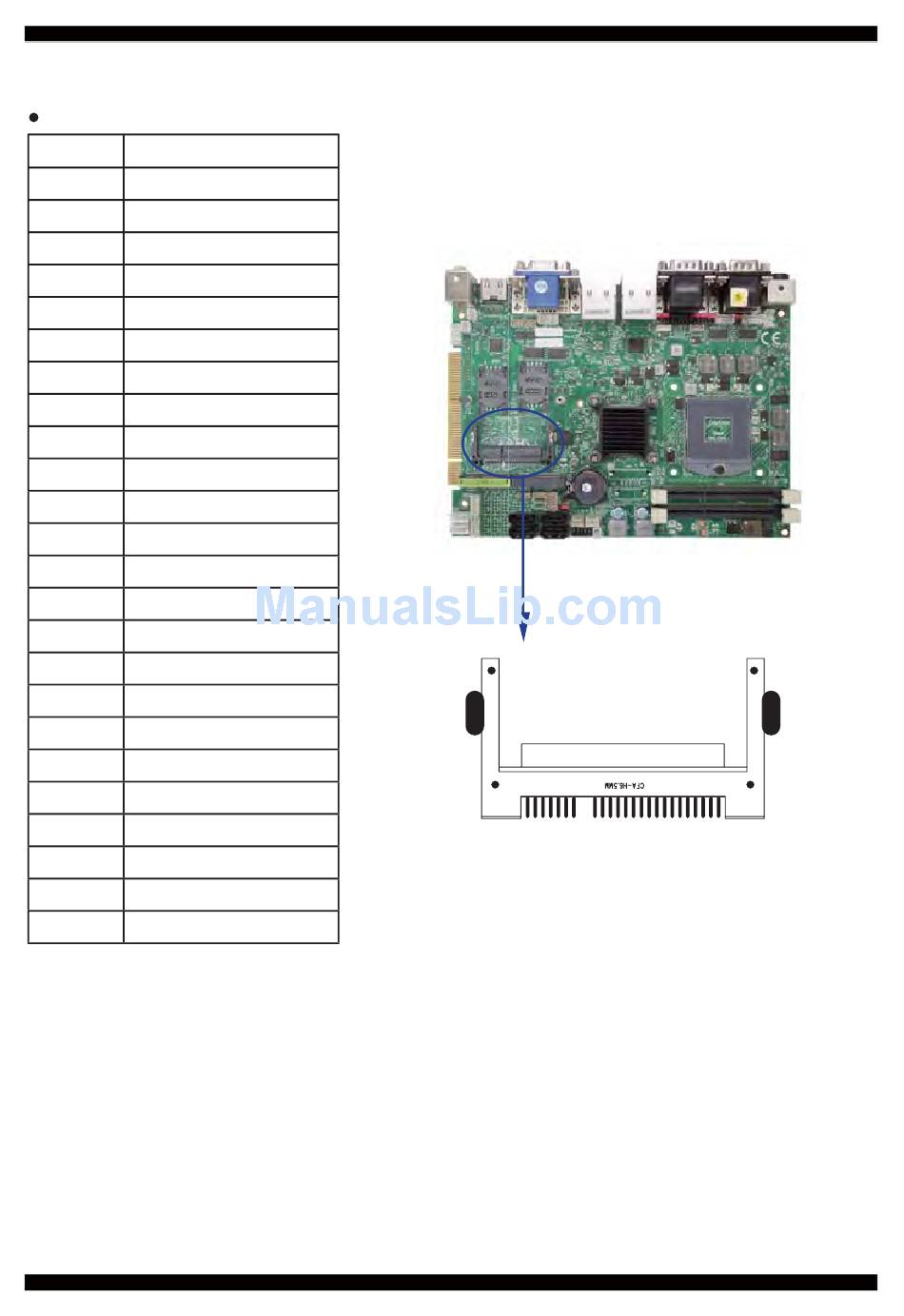

3-22 CFast card Reader and SATA
CFA1: CFA Socket For SATA Interface (24pin CFA Socket)
PIN NO. Description
S1
GND
S2
SATA TX+
S3
SATA TX-
S4
GND
S5
SATA RX-
S6
SATA RX+
S7
GND
PC1
GND(Card Detect In)
PC2
GND
PC3
NC
PC4
NC
PC5
NC
PC6
NC
PC7
GND
PC8
NC(LED Out)
PC9
NC(LED Out)
PC10
NC
PC11
NC
PC12
NC
PC13
+3.3V
PC14
+3.3V
PC15
GND
PC16
GND
PC17
GND(Card Detect In)
Note: CFA1 use SATA port 5
49
CFA1
