3-2 DC 12V-IN external Connector

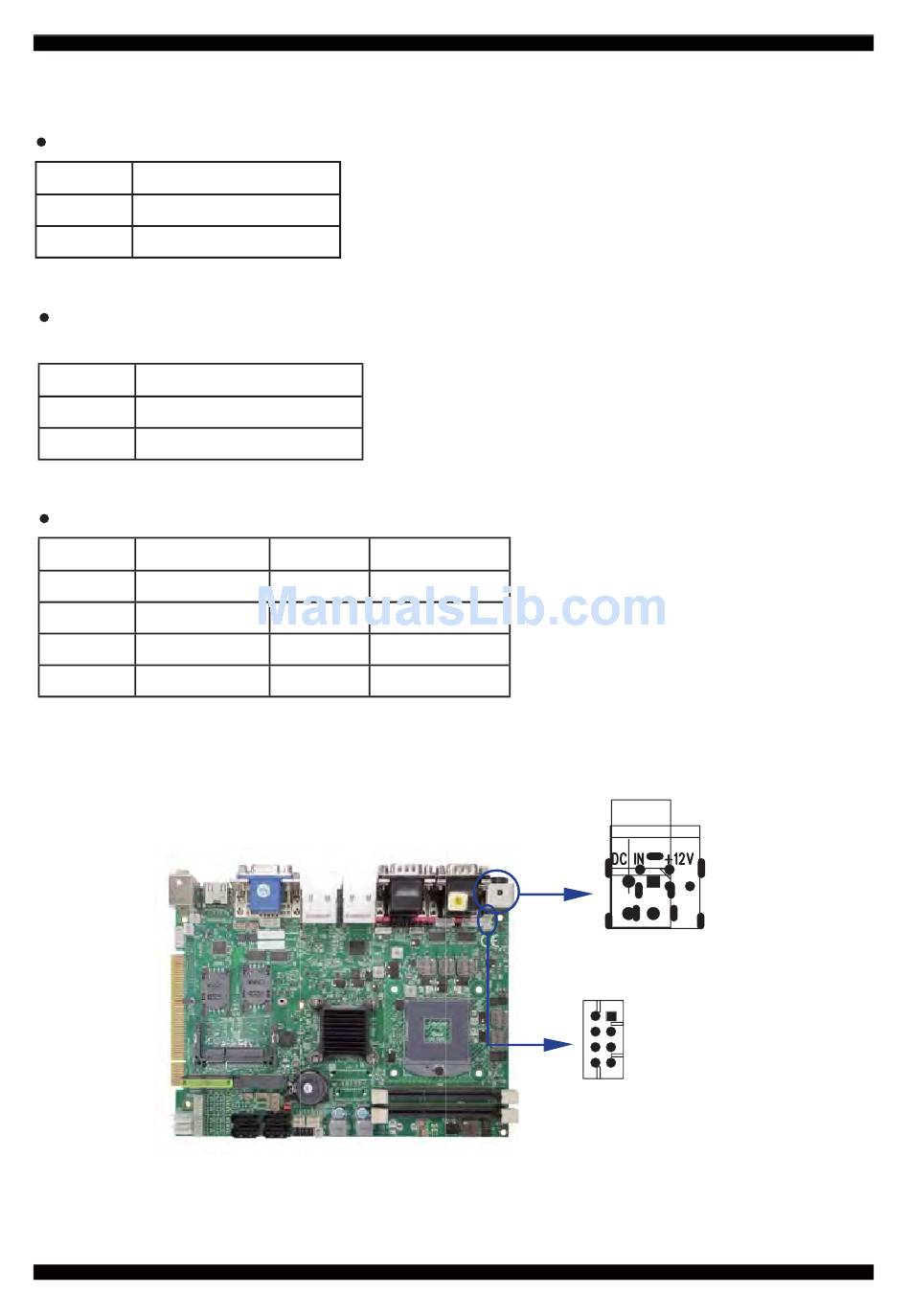

CPI1: DC 12V-IN external Connector (4pin mini din connector)
PIN NO.
Description
1,2
+12V DC-IN
3,4
GND
Note: DC in from adapter plug in
CPI11: DC 12V-IN Internal Connector (2x2pin 4.2mm ATX connector)
The location share with CPI1
PIN NO.
Description
3,4
+12V DC-IN
1,2
GND
Note: This connector share with CPI1 for OEM
CPI13: DC 12V-IN Internal Connector (4pin 2.0mm wafer)
PIN NO.
Description
1
+12V DC-IN
3
+12V DC-IN
5
NC
7
GND
Note: DC in from adapter plug in
PIN NO.
Description
2
+12V DC-IN
4
+12V DC-IN
6
GND
8
GND
28
CPI11
CPI1
pin1
8
CPI13
