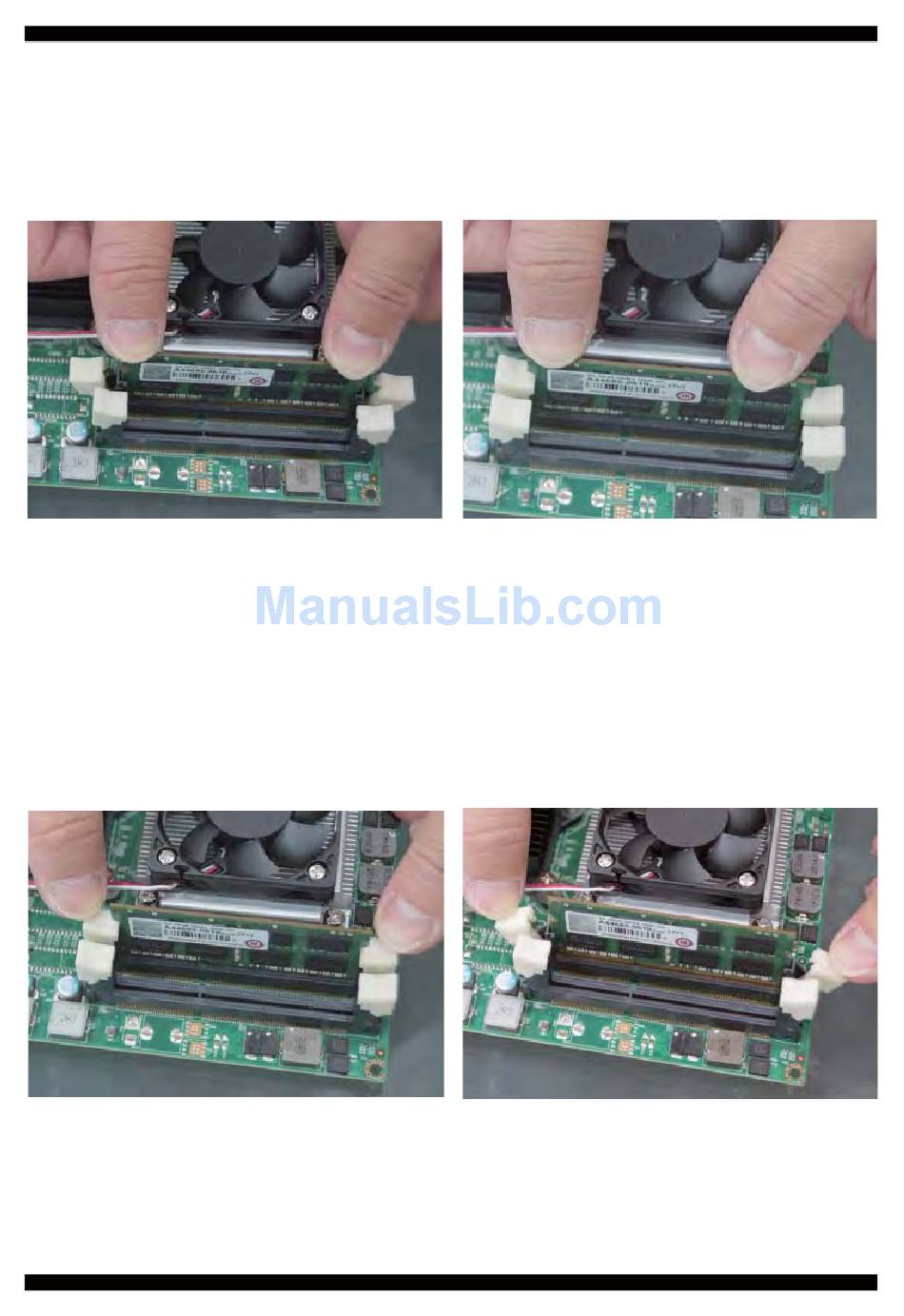

1-4 Vertical SO-DIMM assembly guide

1. Install the memory into SODIMM.
2. Press down fi rmly to ensure the memory
is locked.
------------------------------------------------------------------------------------------------------------------------
Uninstall
1. Pull open both sides of the memory slot.
2. Take out the memory.
9
