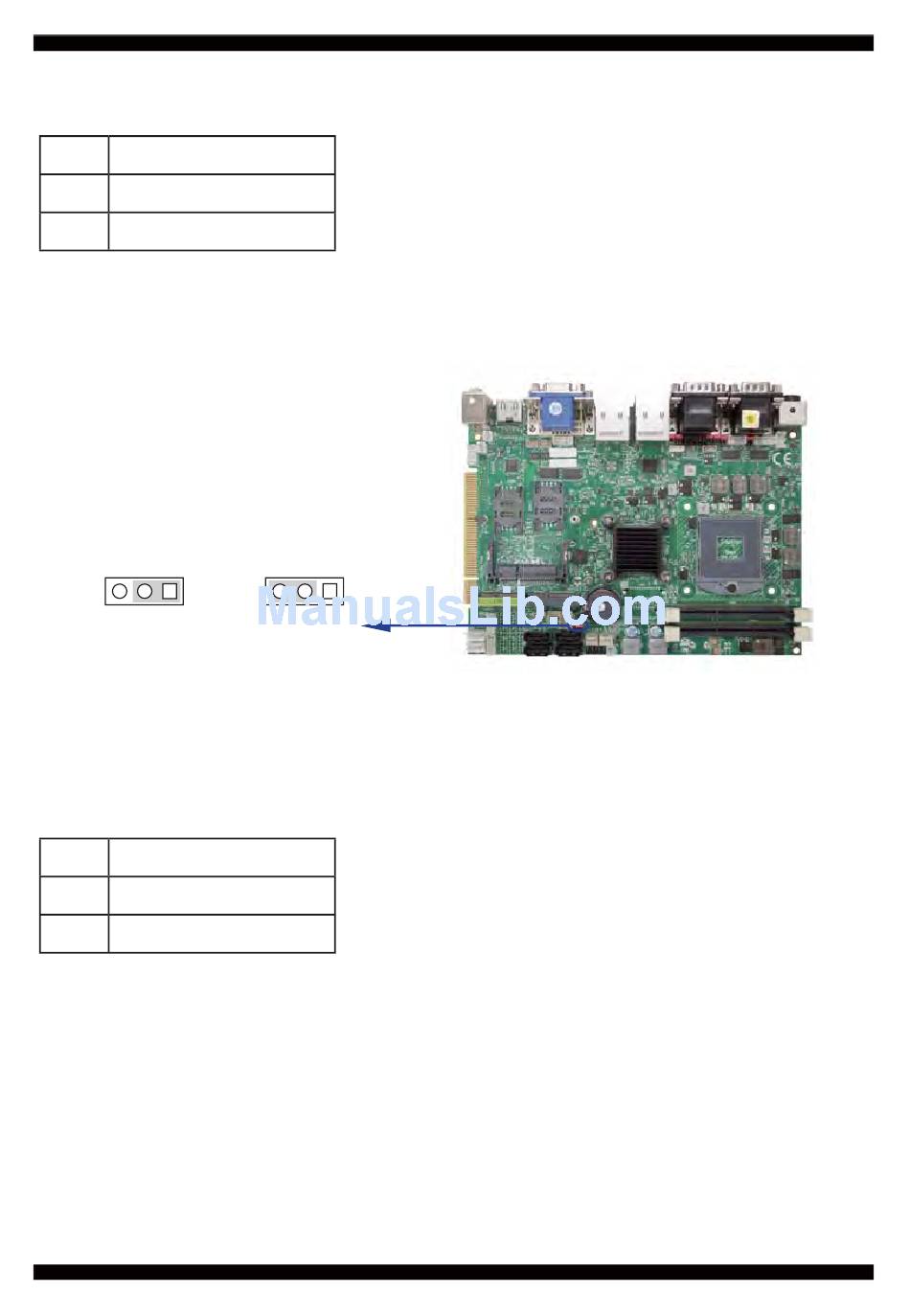

2-15 JVU14: USB Port 14 Voltage select
JVU14 Description
*
+5V
1-2
+3.3V
2-3
Note : Attention ! Check Device Power in spec.
JVU14
3
2
1
*
+5V
JDS1: DPC Duty set
2-16 JSD1: DPC Duty set
JSD1
DESCRIPION
Low 0% (Low level)
1-2
*
Hi 100% (3.3V level)
2-3
Note : for Panel backlight dimming default active set
3
2
1
+3.3V
25
