1-3 Installing the CPU / PCH Heatsink. (Socket Version)

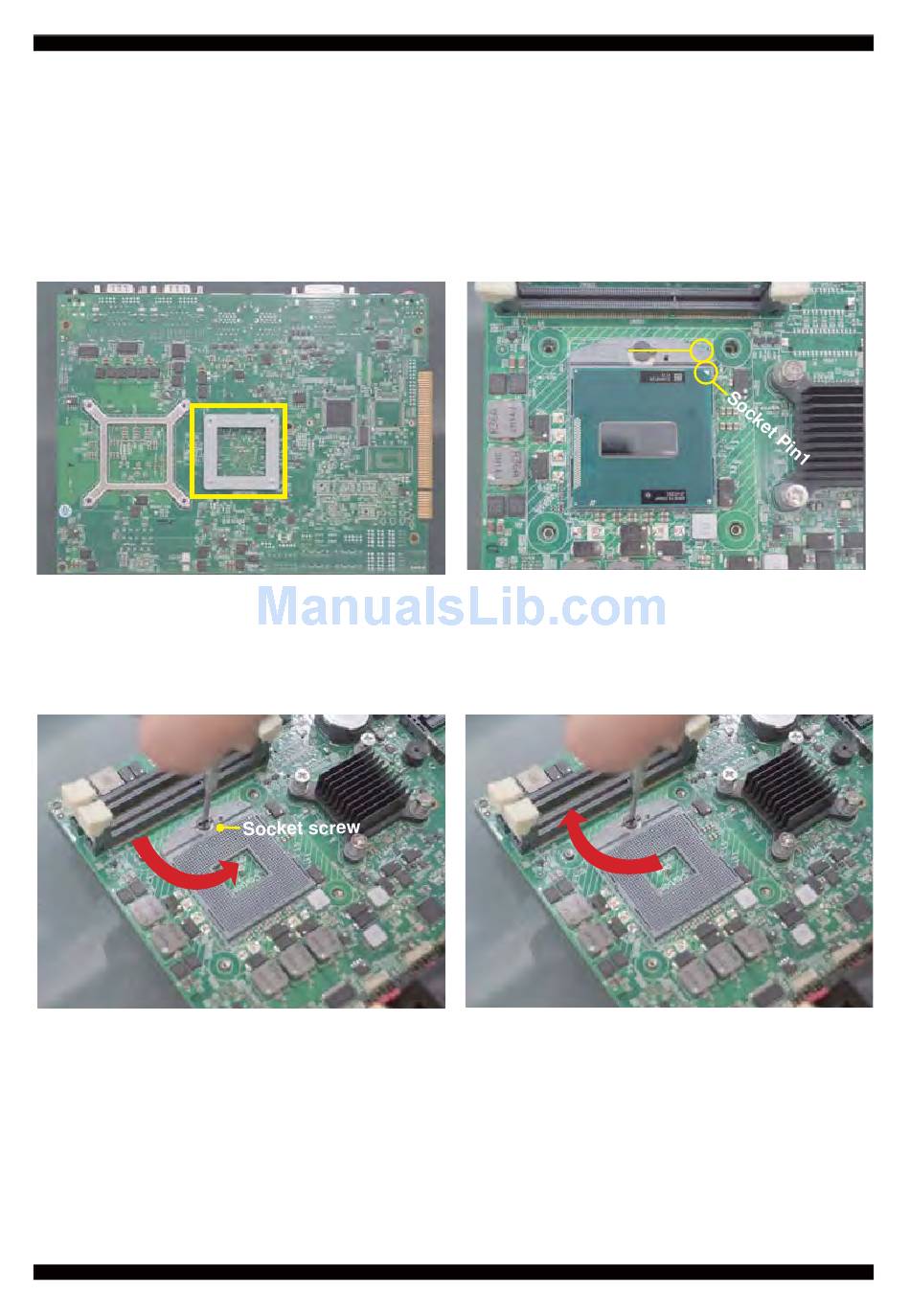

1. Install CPU bracket under the CPU fi rst.
2. Use screw driver and screw the socket
screw in anti-clockwise direction.
2.1. Locate Pin1 in the socket,look for a
golden narrow.
Golden arrow
2.2. Lock the CPU socket by securing the
screw in an anti-clockwise direction .
