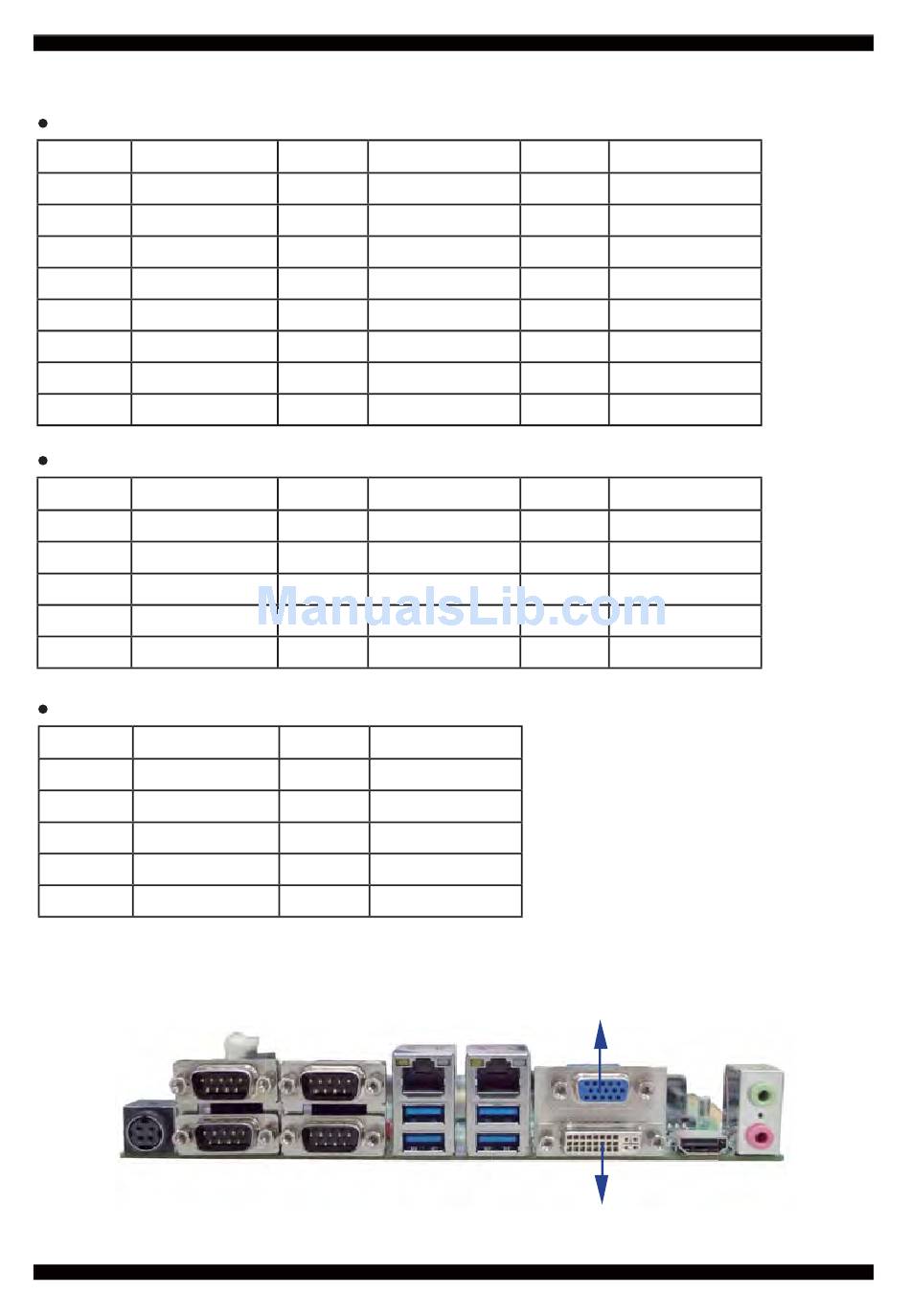

3-6 DVI-D / VGA
CDG1: DVI 12bit connector down side (DB Connector)
PIN NO. Description
1 Data 2-
2 Data 2+
3 GND
4 NC
5 NC
2
6 I C-CLK
2
7 I C-DATA
8 NC
CDG1: VGA DB15 Connector Up side (D-SUB 15PIN)
PIN NO. Description
1 RED
2 GREEN
3 BLUE
4 NC
5 GND
CG11: VGA 2x5pin 2.0mm wafer connector
PIN NO. Description
1 BLUE
3 GND
5 GREEN
7 GND
9 RED
*Note: VGA signal CG11 share with CDG1 VGA
PIN NO. Description
9 Data 1-
10 Data 1+
11 GND
12 NC
13 NC
14 +5V
15 GND
16 DVI-DETECT
PIN NO. Description
6 GND
7 GND
8 GND
9 NC
10 GND
PIN NO. Description
2 GND
4 DDC CLOCK
6 V-SYNC
8 H-SYNC
10 DDC DATA
31
PIN NO. Description
17 Data 0-
18 Data 0+
19 GND
20 NC
21 NC
22 GND
23 CLK+
24 CLK-
PIN NO. Description
11 NC
12 DDC DATA
13 H-SYNC
14 V-SYNC
15 DDC CLOCK
VGA
DVI-D
