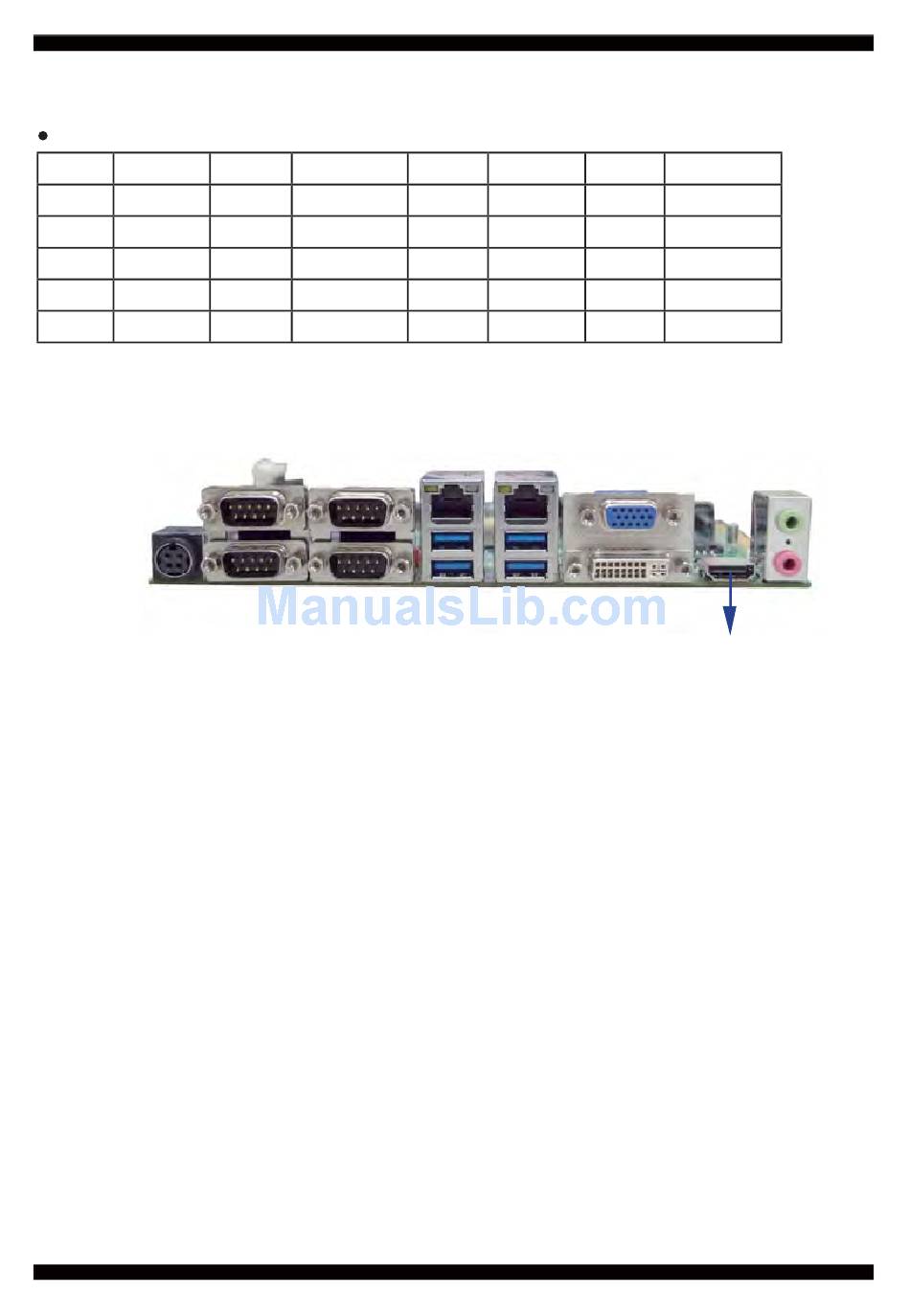

3-7 HDMI interface
HDMI1: HDMI Connector (Type A)
PIN NO. Description
1 TMDS2(p)
5 GND
9 TMDS0(n)
13 NC
17 GND
PIN NO. Description
2 GND
6 TMDS1(n)
10 TMDS CLK(p)
14 NC
18 +5V
PIN NO. Description
3 TMDS2(n)
7 TMDS0(p)
11 GND
15 DDC CLK
19 HPD
32
PIN NO. Description
4 TMDS1(p)
8 GND
12 TMDSCLK(n)
16 DDC DATA
HDMI
