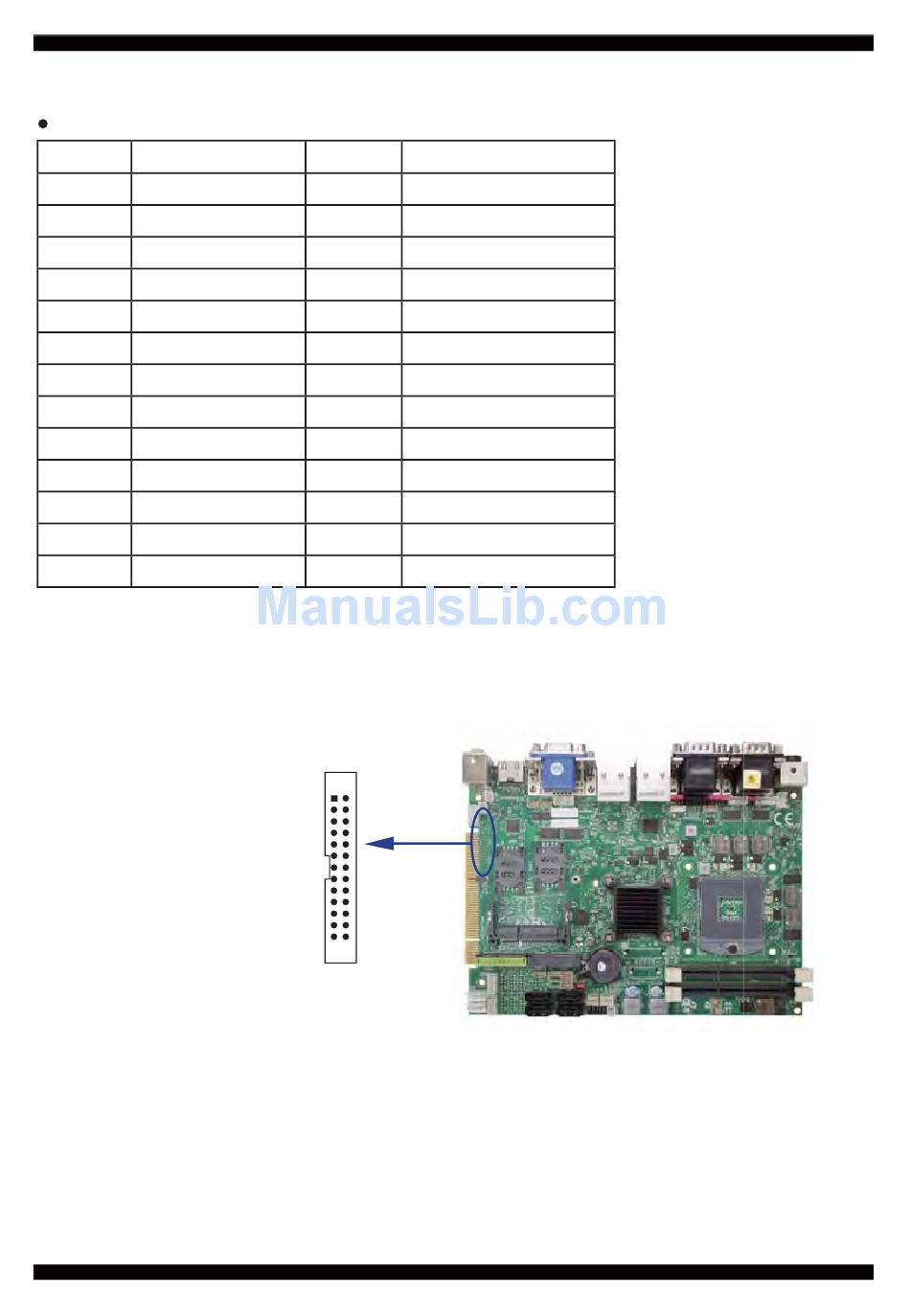

3-21 LPT interface (Line Print Terminal)
LPT1: LPT 2x13 pin (2.0mm)wafe header
PIN NO. Description
1
STROBE#
3
DATA0
5
DATA1
7
DATA2
9
DATA3
11
DATA4
13
DATA5
15
DATA6
17
DATA7
19
ACKNOWLEDGE
21
BUSY
23
PARER EMPTY
25
PRINTER SELECT
Note: BOM default haven't this function by OEM
PIN NO.
Description
2
AUTO FROM FEED#
4
ERROR#
6
INITIALIZE
8
PRINTER SELECT LN#
10
GND
12
GND
14
GND
16
GND
18
GND
20
GND
22
GND
24
NC
26
NC
LPT1
pin1
26
48
