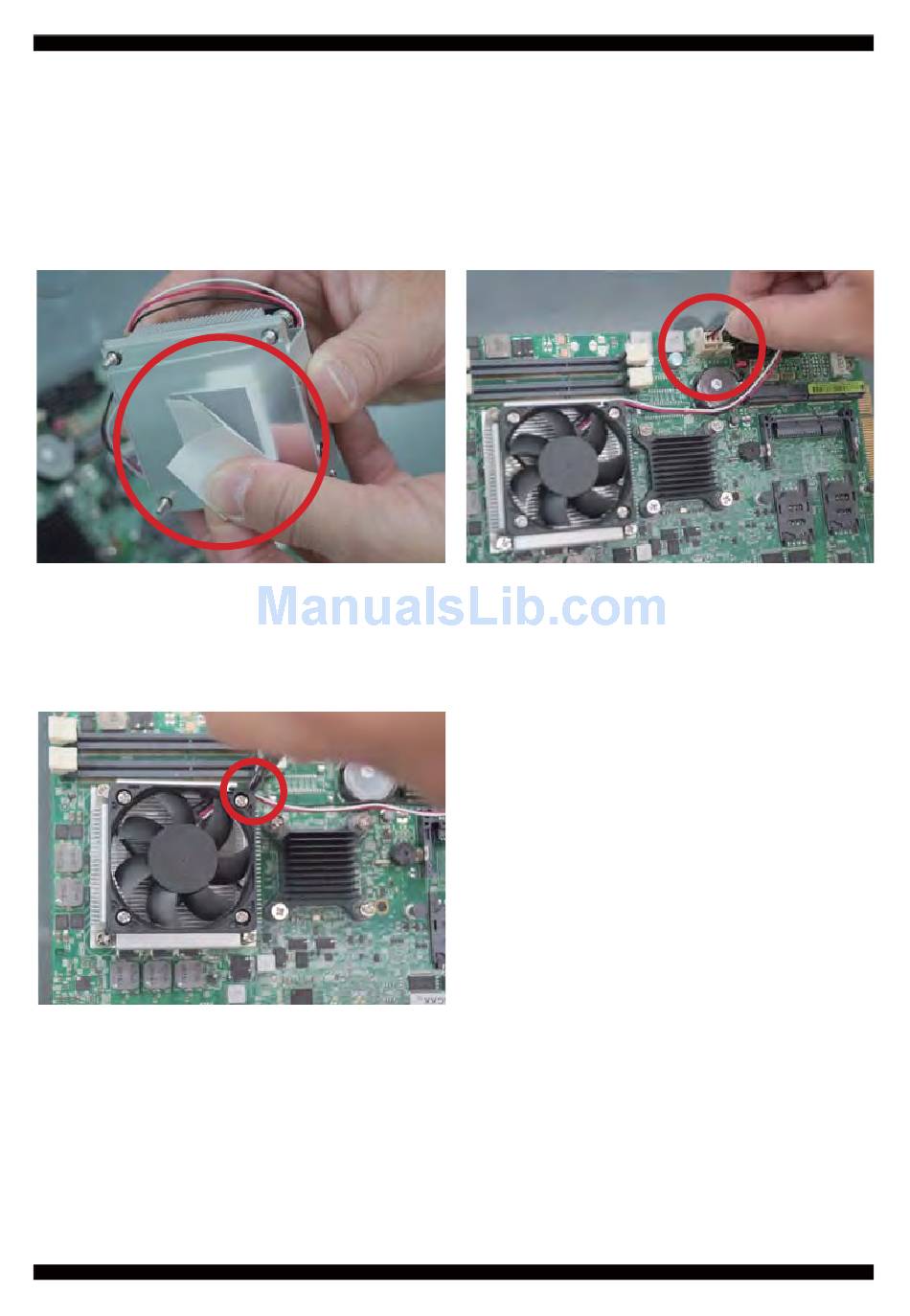

3. Peel-off the Elastic Silicone sticker
3.2 Insert the system fan power cable to
the pin header (FAN1) on board.
under the Heat Sink.
3.1 Tighten the HEAT SINK on the motherboard.
Pay attention to tighten the screws diagonally.
