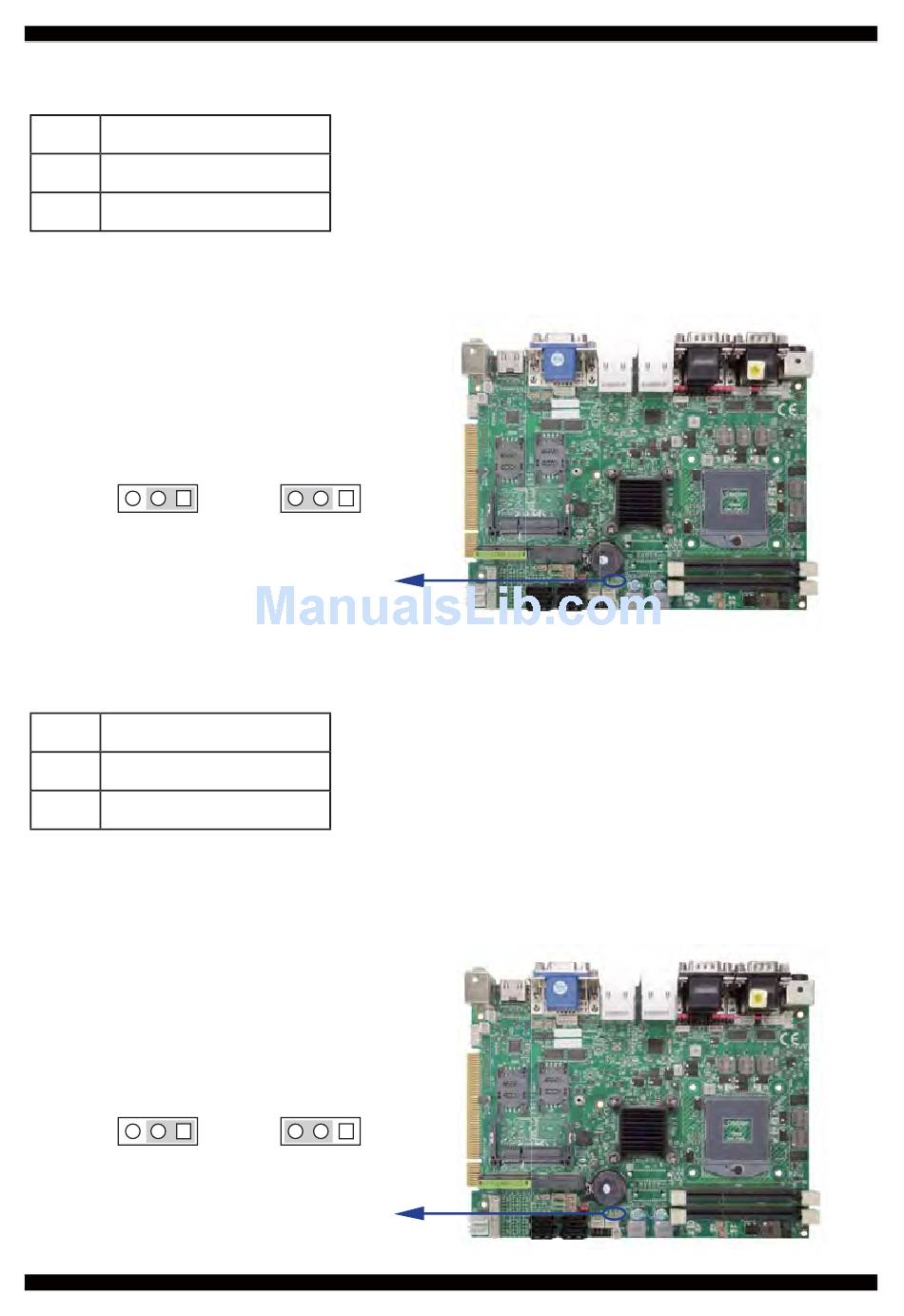

2-13 JVL1: LVDS panel power select
JVL1
Description
+5V
1-2
+3.3V
*2-3
Note : Attention ! Check Device Power in spec.
JVL1 For eDP and LVDS panel power setting
JVL1
3
2
1
+5V
2-14 JVP1: LVDS panel Inverter power select
JVP1
Description
+12V
1-2
+5V
*2-3
Note : Attention ! Check Device Power in spec.
JVP1
3
2
1
+5V
3
2
1
*+3.3V
3
2
1
*+3.3V
24
