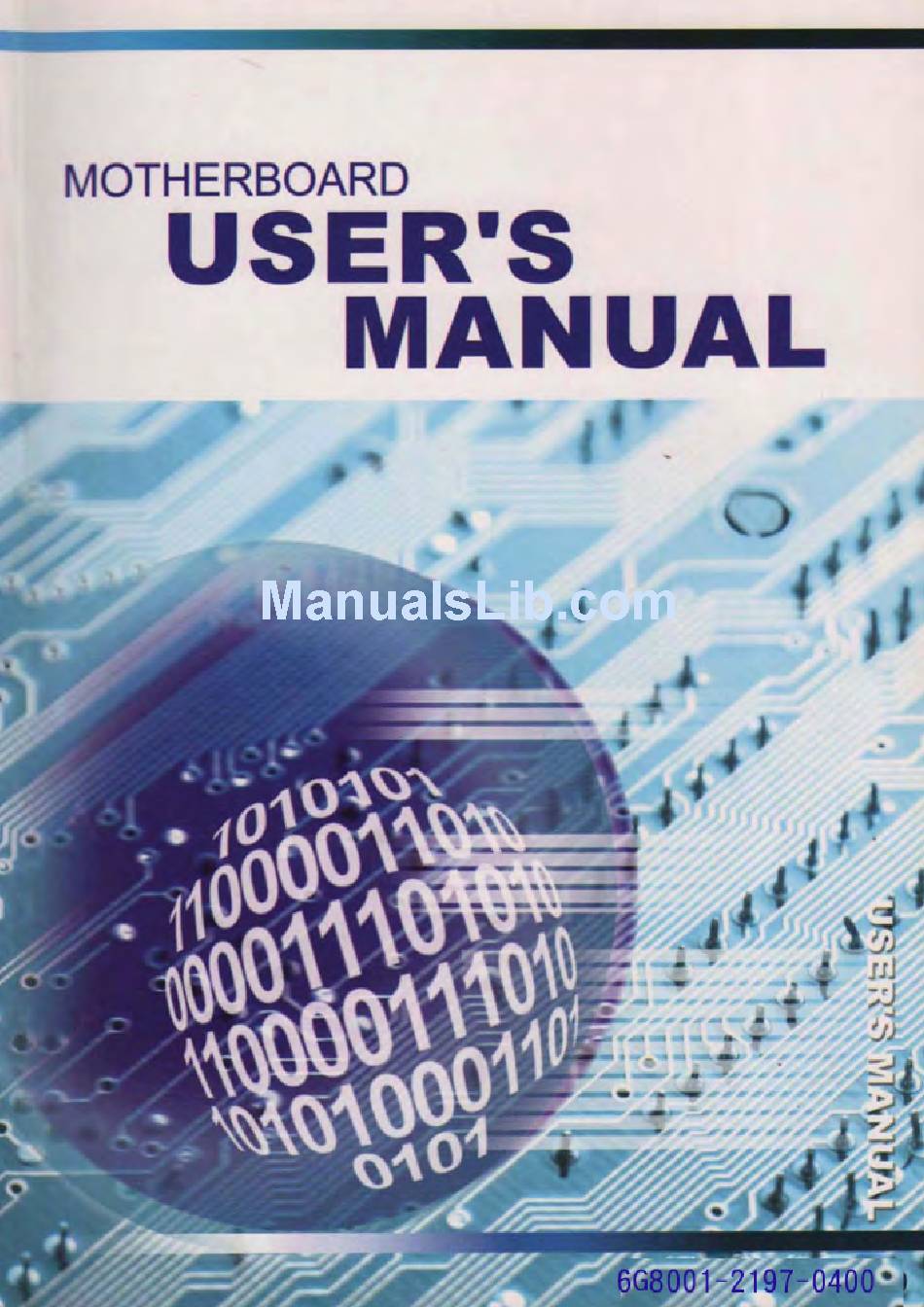

Lex Computech CI770C User Manual

Intel mobile ivy bridge processor + (pch)qm77 / ddr3 1333 / 1600 mt/s / lan / dvi/ hdmi /audio /usb / pcie mini card
Hide thumbs Also See for CI770C:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CI770C and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lex Computech CI770C

Summary of Contents for Lex Computech CI770C

  • Page 2 CI770A / CI770C Intel Mobile Ivy Bridge processor + (PCH)QM77 / DDR3 1333 / 1600 MT/s / LAN / DVI/ HDMI /Audio /USB / PCIe mini card All-In-One Intel Mobile Ivy Bridge CPU VGA, DVI, HDMI, LVDS, PCIe mini card Multi-COM Board, Audio, LAN, SATA, USB NO.

  • Page 3: Table Of Contents

    Contents CI770A/C Warning!........................... Hardware Notice Guide ...................... CHAPTER 1 GENERAL INFORMATION ................. 1-1 MAJOR FEATURE........................ 1-2 SPECIFICATION ........................1-3 INSTALLING THE CPU/PCH HEATSINK. (SOCKET VERSION) ........1-4 VERTICAL SO-DIMM ASSEMBLY GUIDE ................1-5 INSTALLING THE MINI PCI-E CARD .................. 1-6 DIRECTIONS FOR INSTALLING THE MINI CARD ............. 1-7 PACKING LIST ........................
  • Page 4 3-12 LAN INTERFACE ......................... 3-13 USB INTERFACE ........................3-14 SATA INTERFACE ........................3-15 MODULE SOCKET ........................3-16 SIM SOCKET ..........................3-17 SODIMM SOCKET ........................CHAPTER 4 INTRODUCTION OF BIOS ..................4-1 ENTER SETUP ..........................4-2 BIOS MENU SCREEN ........................4-3 FUNCTION KEYS .......................... 4-4 GETTING HELP ..........................
  • Page 5 4-10 SECURITY ..........................4-11 SAVE & EXIT ..........................CHAPTER 5 DRIVER INSTALLATION .................... 5-1 INF INSTALL INTEL BAYTRAIL CHIPSET DRIVER ..............5-2 VGA INSTALL INTEL LVY BRIDGE VGA DRIVER ................ 5-3 SOUND INSTALL REALTEK HIGH DEFINITION AUDIO DRIVER ..........5-4 USB 3.0 INSTALL INTEL USB 3.0 EXTENSIBLE HOST CONTROLLER DRIVER ....... 5-5 ME INSTALL INTEL MANAGEMENT ENGINE INTERGACE DRIVER ........
  • Page 6 Copyright This manual is copyrighted and all rights are reserved. It does not allow any non authorization in copied, photocopied, translated or reproduced to any electronic or machine readable form in whole or in part without prior written consent from the manufacturer.

  • Page 7: Warning

    Warning ! 1. Battery Batteries on board are consumables. The life time of them are not guaranteed. 2. Fless solution with HDD The specifi cation & limitation of HDD should be considered carefully when the fanless solution is implemented. We will not give further notifi cation in case of changes of product information and manual.

  • Page 8: Hardware Notice Guide

    Hardware Notice Guide 1. Before linking power supply with the motherboard, please attach DC-in adapter to the motherboard fi rst. Then plug the adapter power to AC outlet. Always shut down the computer normally before you move the system unit or remove the power supply from the motherboard.
  • Page 9 Photo 1 Insert Unplug...

  • Page 10: Chapter 1 General Information

    Chapter-1 General Information The CI770A/C is All-In-One board which could apply to the use of Networking,POS or Automation Control Board. It is designed to combine all necessary input and output affects interfaces, which makes it to be ideal All-In-One control board for the demand of Networking, POS and Automation Control applications.

  • Page 11: Major Feature

    1-1 Major Feature Intel Mobile Ivy Bridge processor in Socket G2 package (rPGA988B) Intel Panther Point Platform Controller Hub (PCH) QM77 and Integrated Graphic Chip Support 2 x DDR3 SO-DIMM socket (up to 16GB) Support 2 x Intel GbE 18/24 bits dual channel LVDS Interface on Board Support 1 x CFast Card Socket on Board (option) Support 4 x SATA ports (2 x SATA 2.0 and 2 x SATA 3.0) Support 2 x PCIe mini card for USB and PCIe interface...

  • Page 12: Specification

    1-2 Specifi cation CPU: Intel Mobile Sandy Bridge processor in Socket G2 package (rPGA988B) Chipset: Intel Panther Point Platform Controller Hub (PCH) QM77 Memory: 2 x DDR3 SO-DIMM socket (up to 16GB) Graphics: Integrated with Intel Mobile Sandy Bridge Processor SIO and UARTs: Fintek F71869A and F81216AD I/O chipset NAND fl...

  • Page 13: Installing The Cpu/Pch Heatsink. (Socket Version)

    1-3 Installing the CPU / PCH Heatsink. (Socket Version) 1. Install CPU bracket under the CPU fi rst. 2.1. Locate Pin1 in the socket,look for a golden narrow. Golden arrow 2. Use screw driver and screw the socket 2.2. Lock the CPU socket by securing the screw in anti-clockwise direction.
  • Page 14 3. Peel-off the Elastic Silicone sticker 3.2 Insert the system fan power cable to the pin header (FAN1) on board. under the Heat Sink. 3.1 Tighten the HEAT SINK on the motherboard. Pay attention to tighten the screws diagonally.

  • Page 15: Vertical So-Dimm Assembly Guide

    1-4 Vertical SO-DIMM assembly guide 1. Install the memory into SODIMM. 2. Press down fi rmly to ensure the memory is locked. ------------------------------------------------------------------------------------------------------------------------ Uninstall 1. Pull open both sides of the memory slot. 2. Take out the memory.
  • Page 16 1-5 Installing the CFast 1. Install the CFast card into the CFast socket.

  • Page 17: Directions For Installing The Mini Card

    1-6 Directions for installing the Mini Card 1. Unscrew the screw on the board 2. Plug in the Mini Card in a 45 angle 3. Gently push down the Mini Card and screw the screw back.

  • Page 18: Packing List

    1-7 Packing List Material Code Description Detail Specifi cation Quantit 7G1901-1261001-0 MB-CI770A-6CXX-001 LF,CI770A-6CXX,Rev.:001 6G8006-2341-0100 LF,Intel Cedarview-D+ICH10R/NM10 6G7300-4526-0100 Cooler LF,H=26.5mm,4.5Krpm,55W,CI770 6G5212-1203-0200 120W Power Adapter,12V LF,M4p/Lock,FSP120-AHAN1,FSP 6G8001-2182-0400 Manual LF,M/B,CI770A/C 6G6001-2005-0100 COM FK LF,2.0 2*5P/DB9P,L=15cm 6G6001-2203-0100 SATA DATA Cable (Red) LF,L=25cm 6G6003-1009-0100 SATA Power Cable LF,L=25cm,1*5/2.0 to 180°...

  • Page 19: Chapter 2 Hardware Installation

    Chapter-2 Hardware Installation 2-1 Unpacking Precaution This chapter provides the information how to install the hardware of CI770A/C. Please follow section 1-7, 2-1 and 2-2 to check the delivery package and unpack carefully. Please follow the jumper setting procedure. NOTE! 1.

  • Page 20: Unpacking Checkup

    2-2 Unpacking checkup First of all, please follow all necessary steps of section 2-1 to protect CI770A/C from electricity discharge. With reference to section 1-7 please check the delivery package again with following steps: 1. Unpack the CI770A/C board and keep all packing material, manual and driver disc etc, do not dispose ! 2.

  • Page 21: Dimension-3I770A/Cw

    2-3 Dimension-CI770A/C 202.70 189.90 5- Ø 3.40 5- Ø 6 189.80 5.10 23.76 22.48 19.10 8.60 7.88 6.60...
  • Page 22 2-4 Layout-CI770A/C CG11 JVGA1 CPI1 JVGA2 CC31 CDG1 CC21 CC11 CC41 CPI11 CA12 CC12 CUL1 CUL2 CC34 HDMI CPI14 SPDIF1 CPI13 CAR1 CAL1 COS1 COH1 JVC6 LPT1 CC13 CKM1 SIM1 SIM2 CFA1 MPCE1 MPCE2 CPO1 CPO2 CPO3 SWP1 SATA1 SODIM2 CFP1 SODIM1 SATA3...

  • Page 23: Diagram-3I770A

    2-5 Diagram- CI770A/C...

  • Page 24: Install Memory

    2-6 Install Memory This motherboard provides one 204-pin Small Outline Dual In-line Memory Module (SODIMM) socket for memory expansion available maximum to of 2GB/4GB/8GB DDR3 SDRAM. DDR3 clock supports: DDR3 1333/1600MT/S Valid Memory Confi gurations Total Memory DIMM1 / 2 System Accept or Not Max.

  • Page 25: List Of Jumpers

    2-7 List of Jumpers JSB1: CMOS clear select JSB2 : ME RTC clear select JSC2,JSC21/22/23/24: COM2 RS232/422/485 select JSP1: ATX / AT Power type select JSD1: DPC Duty select JVC1: COM1 voltage select JVC2: COM2 voltage select JVC3: COM3 voltage select JVC4: COM4 voltage select JVC5: COM5 voltage select JVC6: COM6 voltage select...
  • Page 26 2-9 JSB1: CMOS Data Clear A battery must be used to retain the motherboard confi guration in CMOS RAM. Close Pin1 and pin 2 of JSB1 to store the CMOS data. To clear the CMOS,follow the procedures below: 1. Turn off the system and unplug teh AC power 2.

  • Page 27: Jsb2: Me Rtc Data Clear

    2-10 JSB2: ME RTC DATA Clear A battery must be used to retain the motherboard confi guration in ME RAM. Close Pin1 and pin 2 of JSB2 to store the ME data. To clear the ME,follow the procedures below: 1. Turn off the system and unplug teh AC power 2.
  • Page 28 2-11 JSP1: AT/ATX Power select JSP1 Description *1-2 ATX power mode AT power mode JSP1 ATX power* AT power 2-12 JSC2,JSC21/22/23/24: COM2 RS232/422/RS485 select JSC2 JSC21 JSC22 JSC23 JSC24 Description *1-2 *1-2 *1-2 *1-2 *1-2 RS232* RS422 RS485 JSC2 JSC23 JSC21 *RS232 JSC22...

  • Page 29: Com Port Pin9 Select Ri Signal Or Voltage Source

    2-13 COM port pin9 select RI signal or Voltage source JVC1: COM1 PIN9 select JVC2: COM2 PIN9 select JVC3: COM3 PIN9 select JVC4: COM4 PIN9 select JVC5: COM5 PIN9 select JVC6: COM6 PIN9 select JVC1/2/3/4/5/6 Description *1-2 COM port pin9 use RI signal COM port pin9 use +5V voltage COM port pin9 use +12V voltage Note: 1.

  • Page 30: Jvl1: Lcd Panel Power Select

    2-13 JVL1: LVDS panel power select JVL1 Description +3.3V *2-3 Note : Attention ! Check Device Power in spec. JVL1 For eDP and LVDS panel power setting JVL1 *+3.3V 2-14 JVP1: LVDS panel Inverter power select JVP1 Description +12V *2-3 Note : Attention ! Check Device Power in spec.
  • Page 31 2-15 JVU14: USB Port 14 Voltage select JVU14 Description +3.3V Note : Attention ! Check Device Power in spec. JVU14 +3.3V JDS1: DPC Duty set 2-16 JSD1: DPC Duty set JSD1 DESCRIPION Low 0% (Low level) Hi 100% (3.3V level) Note : for Panel backlight dimming default active set...

  • Page 32: Chapter 3 Connection

    Chapter-3 Connection This chapter provides all necessary information of the peripheral's connections, switches and indicators. Always power off the board before you install the peripherals. 3-1 List of Connectors CA12: Mic-in (down side) / Line out (up side) phone jack. CA3: Line-out/Line-in/Mic-in 2x5 pin (2.0mm) wafer.
  • Page 33 CO1: I C 4pin (1.25mm) wafer LPT1: LPT 2x13 pin (2.0mm) wafer (option). CPI1: DC 12V-in DIN external connector (4pin mini din connector) CPI11: DC 12V-in internal connector (2x2pin 4.2mm ATX connector) (option). CPI13: DC-in 2x4 pin (2.0mm) wafer connector. CPO1: DC +5/+12V output connector (2.5mm) wafer.
  • Page 34 3-2 DC 12V-IN external Connector CPI1: DC 12V-IN external Connector (4pin mini din connector) PIN NO. Description +12V DC-IN Note: DC in from adapter plug in CPI11: DC 12V-IN Internal Connector (2x2pin 4.2mm ATX connector) The location share with CPI1 PIN NO.
  • Page 35 3-3 DC +5/+12V Voltage output connector CPO1/CPO2: +12V/+5V DC voltage output (4pin 2.54mm Wafer) PIN NO. Description +12V* *Note: DC in +12V by switch to DC-out voltage +12V, so DC in need stable +12V input CPO3: +12V/+5V DC voltage output (4pin 2.0mm Wafer) The location share with CPO2 PIN NO.

  • Page 36: Front Panel & Fan

    3-5 Front panel & FAN CFP1 Front panel connector (2 X 5 pin 2.54mm wafer) PIN NO. Description PIN NO. Description Power button pin Power button GND Reset pin Reset GND Power LED - Power LED + HDD LED- HDD LED+ LAN LED- LAN LED+ SWP1 PB connector (2pin 2.0mm wafer)
  • Page 37 3-6 DVI-D / VGA CDG1: DVI 12bit connector down side (DB Connector) PIN NO. Description PIN NO. Description PIN NO. Description Data 2- Data 1- Data 0- Data 2+ Data 1+ Data 0+ I C-CLK I C-DATA CLK+ DVI-DETECT CLK- CDG1: VGA DB15 Connector Up side (D-SUB 15PIN) PIN NO.
  • Page 38 3-7 HDMI interface HDMI1: HDMI Connector (Type A) PIN NO. Description PIN NO. Description PIN NO. Description PIN NO. Description TMDS2(p) TMDS2(n) TMDS1(p) TMDS1(n) TMDS0(p) TMDS0(n) TMDS CLK(p) TMDSCLK(n) DDC CLK DDC DATA HDMI...

  • Page 39: Lvds Interface

    3-8 LVDS interface LVDS1: LVDS interface (2x15 pin 1.25mm wafer) PIN NO. Description PIN NO. Description PWM dimming +LCD(5V or 3.3V) +LCD(5V or 3.3V) Channel-1-DATA3+ Channel-0-DATA3+ Channel-1-DATA3- Channel-0-DATA3- Channel-0-DATA2+ Channel-0-CLK+ Channel-0-DATA2- Channel-0-CLK- Channel-0-DATA1+ Channel-0-DATA0+ Channel-0-DATA1- Channel-0-DATA0- +LCD(5V or 3.3V) +LCD(5V or 3.3V) Channel-1-DATA2+ Channel-1-CLK+ Channel-1-DATA2-...
  • Page 40 CPP1: Panel Inverter power (5pin 2.0mm wafer) PIN NO. Description +12V or +5V PWM dimming ENBKL (3.3V) ENBKL ( 5V ) Note: 1. JVP1 Inverter Voltage select 2. CPP1 PIN 3 and LVDS1 PIN1 is same signal. Default active setup by JSD1 3.
  • Page 41 3-9 Touch screen device CT1: Touch screen (2x5 pin 2.0mm wafer) Default use USB interface, can change COM interface By OEM BOM. For 8- wire type pin defi ne PIN NO. Description PIN NO. Description Bottom Bottom Sense Top Sense Right Right Sense Left...

  • Page 42: Audio Interface

    3-10 Audio interface CA12: Up side Line out (3.5mm phone jack) PIN NO. Description Line OUT-L Line OUT-R CA12: Down side Mic in (3.5mm phone jack) PIN NO. Description Mic-IN Mic-IN CA3: Line-out/Line-in/Mic-in 2x4 pin (2.0mm) Header PIN NO. Description PIN NO.

  • Page 43: Com Ports

    3-11 COM ports COM2 default support RS232/RS422/RS485 mode COM1/3/4/5/6 default support RS232 mode RS232 Mode connector (D-SUB 9pin) CC12: COM1 (up side) / COM2 (down side) port connector CC34: COM3 (up side) / COM4 (down side) port connector CC2: COM2 Single port connector. (The location share with CC12) CC4: COM4 Single port connector.
  • Page 44 RS422 Mode conector (D-SUB 9pin) CC12: COM1(up side)/COM2 (down side) port connector CC34: COM3 (up side) / COM4 (down side) port connector CC2: COM2 Single port connector. (The location share with CC12) CC4: COM4 Single port connector. (The location share with CC34) PIN NO.
  • Page 45 RS422 mode ports (2 X 5 pin 2.0mm wafer) CC11: COM1 CC21 : COM2 CC31: COM3 CC41 : COM4 CC5: COM5 CC6 : COM6 PIN NO. Description PIN NO. Description RS422 TX- RS422 TX+ RS422 RX+ RS422 RX- pin1 RI / Voltage CC13 Note: 1.

  • Page 46: Digital Input / Output

    3-12 Digital Input / Output CIO1 DIO 0 ~ 3 (2x5pin 2.0mm wafer) PIN NO. Description PIN NO. Description DI-0 DO-3 DI-1 DO-2 DI-2 DO-1 DI-3 DO-0 Note: 1. The system default 8DI and 8DO 2. DI pin default pull up 10KΩ to +5V 3.
  • Page 47 CIO4 DIO 12 ~ 15 (2x5pin 2.0mm wafer) (option) PIN NO. Description PIN NO. Description DI-12 DO-15 DI-13 DO-14 DI-14 DO-13 DI-15 DO-12 Note: 1. CIO4 is option function 2. DI pin default pull up 10KΩ to +5V 3. If use need isolate circuit to control external device 4.

  • Page 48: I C Bus Interface

    3-13 I C Bus Interface CO1: I C (SM) bus connector (4 pin 1.25mm wafer) PIN NO. Description +3.3V SMB_CLK SMB_DATA pin1 3-14 PS2 KB/MS CKM1: KB/MS port (1 X 6 pin 1.25mm wafer) PIN NO. Description KB/DAT KB/CLK MS/DAT MS/CLK pin1 CKM1...
  • Page 49 3-15 LAN+USB Connrctor CUL1/CUL2 (Down side): USB3.0/2.0 Type A jack PIN NO. Description PIN NO. Description USB3.0 TX+ USB 2.0 D- USB3.0 TX- USB 2.0 D+ USB3.0 RX+ Note: 1. USB 3.0 and USB 2.0 combo Type A Jack 2.CUL1 USB 3.0 port 3 and 4 , USB2.0 port 5 and 4 3.CUL2 USB3.0 port 1 and 2, USB2.0 port 1 and 2 4.USB3.0/2.0 Keyboard and Mouse use CUL1 can pitch Some OS install And wake up Keyboard and Mouse can’t work issue...

  • Page 50: Usb Interface

    3-16 USB Interface CU5/6/7/8/9/10/11/12/13: USB5/6/7/8/9/10/11/12/13 port (4pin 1.25mm Wafer) PIN NO. Description USB DATA - USB DATA + Note: 1. CU5 and CU6 no connector 2. The CU10 share with MPCE1 (no connector). 3. The CU11 share with MPCE2 (no connector). 4.

  • Page 51: Sata Interface

    3-17 SATA interface SATA1, SATA2: The two SATA connectors (7pin wafer) SATA3, SATA4: The two SATA connectors (7pin wafer) PIN NO. Description DATA TX+ DATA TX- DATA RX- DATA RX+ Note: 1. SATA1 and SATA2 support SATA 3.0 spec update 6Gb/sec . 2.

  • Page 52: Mini Card

    3-18 Mini card MPCE1/MPCE2: Support USB and PCIe by one Interface (Mini card socket 52pin) PIN NO. Description PIN NO. Description +3.3V +1.5V SIM Power SIM Data PCIe-CLK- SIM CLK PCIe-CLK+ SIM Reset SIM RFU RST- PCIe-RX-/mSATA-RX+ +3.3V PCIe-RX+/mSATA-RX- pin52 pin52 +1.5V SMB-CLK...

  • Page 53: Sim Socket

    3-19 SIM Socket SIM1,SIM2: SIM card socket pin defi ne is follow ISO 7816-2 smart card PIN NO. Description PIN NO. Description DATA Note: 1. MPCE1 Pin 8, 10,12,14,16 for SIM1 card reader use. 2. MPCE2 Pin 8, 10,12,14,16 for SIM2 card reader use. 3-20 SODIMM socket SODIM1/2: SO-DIM DDR3 1.5V DRAM Socket SIM1...
  • Page 54 3-21 LPT interface (Line Print Terminal) LPT1: LPT 2x13 pin (2.0mm)wafe header PIN NO. Description PIN NO. Description STROBE# AUTO FROM FEED# DATA0 ERROR# DATA1 INITIALIZE DATA2 PRINTER SELECT LN# DATA3 DATA4 DATA5 DATA6 DATA7 ACKNOWLEDGE BUSY PARER EMPTY PRINTER SELECT Note: BOM default haven’t this function by OEM LPT1 pin1...
  • Page 55 3-22 CFast card Reader and SATA CFA1: CFA Socket For SATA Interface (24pin CFA Socket) PIN NO. Description SATA TX+ SATA TX- SATA RX- SATA RX+ GND(Card Detect In) NC(LED Out) NC(LED Out) PC10 PC11 PC12 PC13 +3.3V PC14 +3.3V CFA1 PC15 PC16...
  • Page 56 3-23 PCI Gold Finger PIN Defi ne PIN NO. PIN NO. +12V BUF_PLT_RST# CLK_PCIE_AP CLK_PCIE_AN PCIE_RXP_A PCIE_RXN_A PCIE_TXN_A PCIE_TXP_A +3.3V PCIE_WAKE# P_PME# +3.3V CLK_PCIE_BP CLK_PCIE_BN PCIE_TXN_B PCIE_TXP_B +3.3V +3.3V PCIE_RXP_B PCIE_RXN_B PCIE_TXP_C PCIE_TXN_C PCIE_RXP_C +3.3V PCIE_RXN_C...
  • Page 57 PIN NO. PIN NO. STROBE# +3.3V +3.3V DATA6 DATA7 +3.3V +3.3V CLK_PCIE_CP +3.3V CLK_PCIE_CN PCIE_RXP_D PCIE_RXN_D PCIE_TXP_D +3.3V PCIE_TXN_D CLK_PCIE_DP +3.3V CLK_PCIE_DN...

  • Page 58: Introduction Of Bios

    Chapter-4 Introduction of BIOS The BIOS is a program located in the Flash Memory on the motherboard. This program is a bridge between motherboard and operating system. When you start the computer, the BIOS program gains control. The BIOS fi rst operates an auto-diagnostic test called POST (Power on Self Test) for all the necessary hardware, it detects the entire hardware devices and confi...

  • Page 59: Bios Menu Screen

    The following diagram show a general BIOS menu screen Menu Bar Main Advanced Chipset Security Save & Exit Boot Set the date. Use Tab BIOS Vendor CI770C/A to Switch between Processor Information date elements. Name IvyBridge Brand String Intel(R) Core(TM) i7 Frequency 2300 MHz...

  • Page 60: Getting Help

    The selected one is highlighted. 4-6 Main Main Advanced Chipset Save & Exit Boot Security Set the date. Use Tab BIOS Vendor CI770C/A to Switch between date elements. Processor Information Name IvyBridge Brand String Intel(R) Core(TM) i7 →←: Select Screen Frequency 2300 MHz ↑↓: Select Item...

  • Page 61: Advanced

    4-7 Advanced Main Advanced Chipset Security Save & Exit Boot ►ACPI Settings System ACPI Parameters. ►S5 RTC Wake Setting ►CPU Confi guration ►SATA Confi guration ►USB Confi guration →←: Select Screen ►SMART Setting ↑↓: Select Item ►F71869 Super IO Confi guration Enter: Select ►F71869 H/W Monitor +/-: Change Opt.

  • Page 62: Acpi Settings

    4-7-1 ACPI Settings Main Advanced Chipset Security Save & Exit Boot Enables or Disables ACPI Settings BIOS ACPI Auto Confi guration. Enable ACPI AUTO Confi guration [Disabled] Enable Hibernation [Enabled] →←: Select Screen ↑↓: Select Item ACPI Sleep State [S1 only(CPU Stop C..)] Enter: Select +/-: Change Opt.

  • Page 63: S5 Rtc Wake Settings

    4-7-2 S5 RTC Wake Settings Main Advanced Save & Exit Chipset Boot Security Enable or disable Wake system with Fixed Time [Disabled] System wake on alarm Wake system with Dynamic Time [Disabled] event when enabled. System will wake on the hr : min : sec specifi...

  • Page 64: Cpu Configuration

    4-7-3 CPU Confi guration Main Advanced Save & Exit Chipset Security Boot Number of cores to CPU Confi guration enable in each processor package. Intel(R) Core(TM) i7-3610QE CPU @ 2.30GHz CPU Signature 306a9 Microcode Path Max CPU Speed 2300 MHz Min CPU Speed 1200 MHZ CPU Speed...

  • Page 65: Sata Configuration

    4-7-4 SATA Confi guration Main Advanced Save & Exit Chipset Boot Security Enable or disable SATA SATA Controller(s) [Enabled] Device. SATA Mode Selection [IDE] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 66: Software Feature Mask Configuration

    4-7-4-1-1 ►Software Feature Mask Confi guration Main Advanced Save & Exit Chipset Security Boot Enable or disable RAID0 RAID0 [Enabled] feature. RAID1 [Enabled] RAID10 [Enabled] RAID5 [Enabled] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...
  • Page 67 4-7-5 USB Confi guration Main Advanced Save & Exit Chipset Security Boot Enables Legacy USB USB Confi guration support. AUTO option disables legacy support USB Devices: if no USB devices are 1 Keyboard, 2 Mice, 2 Hubs connected. Disable option will keep USB devices available only Legacy USB Support [Enabled]...

  • Page 68: Smart Settings

    4-7-6 SMART Settings Main Advanced Save & Exit Chipset Boot Security Run SMART Self Test on Smart Settings all HDDs during POST. Smart Self Test [Disabled] →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 69: Serial Port 1 Configuration & Serial Port 2 Configuration

    4-7-7-1 ►Serial Port 1 Confi guration & Serial Port 2 Confi guration Main Advanced Save & Exit Chipset Security Boot Enable or Disable Serial Serial Port 1~2 Confi guration Port (COM) Serial Port [Enabled] →←: Select Screen Device Settings IO=3F8h; IRQ=4; ↑↓: Select Item Enter: Select Change Settings...

  • Page 70: F81216 Second Super Io Configuration

    4-7-9 F81216 Second Super IO Confi guration Main Advanced Chipset Security Save & Exit Boot Set Parameters of Serial F81216 Second Super IO Confi guration Port 3(COMC) F81216 Second Super IO Chip F81216 SecondIO →←: Select Screen ►Serial Port 3 Confi guration ↑↓: Select Item ►Serial Port 4 Confi...

  • Page 71: Serial Port Console Redirection

    Serial Port Use this item to enable or disable serial port (COM). The optional settings are: Enabled, Disabled. Change Settings Use this item to select an optimal setting for super IO device. The optional settings are: AUTO IO=260h; IRQ=11; IO=260h; IRQ=10,11,12; IO=268h;...

  • Page 72: Network Stack

    4-7-11 Network Stack Main Advanced Save & Exit Chipset Security Boot Enable/Disable UEFI Network stack [Disable Link] network stack. →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save & Exit Esc: Exit Version 2.14.1219.
  • Page 73 4-8-1 ►PCH-IO Confi guration Main Advanced Save & Exit Chipset Security Boot PCI Express Intel PCH SKU Name QM77 Confi guration settings Intel PCH Rev ID 04/C1 →←: Select Screen ►PCI Express Confi guration ↑↓: Select Item ►USB Confi guration Enter: Select ►PCH Azalia Confi...

  • Page 74: Mini Pcie 1/2

    PCI Express x1 Please refer section 4-8-1-1-2 PCI Express x1 Please refer section 4-8-1-1-2 4-8-1-1-1 ►Mini PCIe 1/2 Main Advanced Save & Exit Chipset Boot Security Control the PCI PCI Express Root Port 3/4 [Enabled] Express Root Port. PCIe Speed [Gen1] →←: Select Screen ↑↓: Select Item...
  • Page 75 PCIe Speed Select PCI Express port speed. The optional settings are: Auto, Gen1, Gen2. 4-8-1-2 ►USB Confi guration Main Advanced Save & Exit Chipset Security Boot Enable or disable XHCI USB Confi guration Pre-Boot Driver support. XHCI Pre-Boot Driver [Enabled] →←: Select Screen xHCI Mode [Smart Auto]...
  • Page 76 USB Port Pre-Port Disable Control Use this item to control each of the USB ports (0~13) disabling. The optional settings are: Disabled, Enabled. 4-8-1-3 ►PCH Azalia Confi guration Save & Exit Main Advanced Chipset Security Boot Control Detection of the PCH Azalia Congiguration Azalia device.
  • Page 77 4-8-2-1 ►Graphics Confi guration Main Advanced Save & Exit Chipset Boot Security Graphics turbo IMON Graphics Confi guration current values supported IGFX VBIOS Version 2170 (14-31) IGfx Frequency 350 MHz Graphics Turbo IMON Current →←: Select Screen Aperture Size [256MB] ↑↓: Select Item DVMT Pre-Allocated [64M]...

  • Page 78: Lcd Control

    4-8-2-1-1 ►LCD Control Main Advanced Save & Exit Chipset Security Boot Select the Video Graphics Confi guration Device which will be activated during POST. Primary IGFX Boot Display [CRT] This has no effect Secondary IGFX Boot Display [LVDS] if external graphics LCD Panel Type [1024x768 LVDS1] present.

  • Page 79: Boot

    LCD Panel Type This item allows you to select the panel resolution VBIOS Default 1024 X 600 LVDS 800 X 600 LVDS 1024 X 768 LVDS1 1280 X 1024 LVDS 1440 X 1050 (RB) LVDS1 1440 X 1050 LVDS2 1600 X 1200 LVDS 1366 X 768 LVDS...

  • Page 80: Csm Parameters

    Quiet Boot The optional settings are: Enabled, Disabled. Gate A20 Active UPON REQUEST- GA20 can be disabled using BIOS services. ALWAYS- do not allow disabling GA20. CSM parameters Please refer section 4-9-1 4-9-1 CSM parameters Main Advanced Save & Exit Chipset Security Boot...

  • Page 81: Security

    4-10 Security Main Advanced Save & Exit Chipset Security Boot This option controls if Password Description CSM will be launched If ONLY the Administrator’s password is set, Then this only limits access to Setup and is only asked for when entering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to →←: Select Screen...

  • Page 82: Save & Exit

    4-11 Save & Exit Main Advanced Chipset Save & Exit Boot Security Reset the system after Save Changes and Reset saving the changes. Restore Defaults Boot Override →←: Select Screen ↑↓: Select Item Enter: Select +/-: Change Opt. F1: General Help F2: Previous Values F3: Optimized Defaults F4: Save &...

  • Page 83: Chapter 5 Driver Installation

    Chapter-5 DRIVER INSTALLATION There is a system installation DVD in the package. This DVD does not only include all the drivers you need but also some other free application programs and utility programs. In addition, this DVD also includes an auto detect software telling you which hardware is installed and which driver is needed so that your system can function properly.
  • Page 84 AUTOMATIC DRIVER INSTALLATION menu 1. INF install Intel Ivy Bridge chipset driver 2. VGA install Intel onboard VGA driver 3. SOUND install HD Audio Codec driver 4. LAN to the LAN driver Readme fi le 5. COM to the COM driver Readme fi le 6.

  • Page 85: Inf Install Intel Baytrail Chipset Driver

    5-1 INF Install Intel Baytrail Chipset Driver 1. At the "AUTOMATIC DRIVER INSTALLATION 2. At the "Intel® Chipset Device Software" menu" screen, click "INF". screen, click "Next". 3. At the "License Agreement" screen, 4. At the "Readme File Information" screen, click "Yes"...
  • Page 86 6. Click "Finish" to restart computer 5. Click "Next" NOTE: SYSTEM INSTALL will auto detect fi le path For Windows XP 64/32-bit, Windows 7 64/32-bit and windows 8 64/32-bit X:\driver\INTEL\IVY_SAN\inf\infi nst_autol.exe For Windows 8.1 64/32-bit...

  • Page 87: Vga Install Intel Lvy Bridge Vga Driver

    5-2 VGA Install Intel Ivy Bridge VGA Driver 1. At the"AUTOMATIC DRIVER INSTALLATION 2. At the "Intel® HD Graphics Driver" screen, menu"screen, click "VGA". Click "Next". 3. At the "Welcome to the Setup Program" 4. At the "License Agreement" screen, screen, Click "Next".
  • Page 88 6. At the "Setup Progress" screen, 5. At the "Readme File Information" screen, Click "Next". Click "Next". 7. Click “Finish” to restart computer NOTE: SYSTEM INSTALL will auto detect fi le path For Windows XP 64bit X:\driver\INTEL\IVY_SAN\vga\winxp64\winxp64_145110.exe For Windows XP 32bit X:\driver\INTEL\IVY_SAN\vga\winxp\winxp_145110.exe For Windows 7 64bit and Windows 8 64bit X:\driver\INTEL\IVY_SAN\vga\ WIN_7_8_64\ win64_152812.exe...

  • Page 89: Sound Install Realtek High Definition Audio Driver

    5-3 SOUND Install Realtek High Defi nition Audio Driver 1. At the "AUTOMATIC DRIVER INSTALLATION 2. Click "Next". menu" screen, click "SOUND". 3. Click "Finish" to restart computer NOTE: SYSTEM INSTALL will auto detect fi le path For Windows XP 32/64 bit X:\driver\INTEL\IVY_SAN\SOUND\WDM_R270.exe For Windows 7 32/64 bit and Windows 8 32/64 bit X:\driver\INTEL\IVY_SAN\SOUND\Vista_Win7_Win8_R270.exe...

  • Page 90: Usb 3.0 Install Intel Usb 3.0 Extensible Host Controller Driver

    5-4 USB 3.0 Install Intel USB 3.0 extensible Host Controller Driver 1. At the "AUTOMATIC DRIVER 2. At the "Intel® USB 3.0 extensible Host INSTALLATIONmenu" screen, Click "USB 3.0 Controller Driver" screen, Click" Next. 3. At the "License Agreement" screen, 4.
  • Page 91 6. Click "Finish" to restart computer 5. Click "Next". NOTE: The path of the fi le For Windows 7 32/64-bit X:\driver\INTEL\IVY_SAN\USB3_0\INTEL\Setup.exe...

  • Page 92: Me Install Intel Management Engine Intergace Driver

    5-5 ME Install Intel Management Engine Interface Driver 1. Plaese Check Device Manager "PCI 2. At the "Intel® Management Engine Simple Communications Controllers" Components"screen, Click" Next. 3. At the "Setup Progress" screen, 4. Click "Next". Click "Next".
  • Page 93 5. At the "Readme File Information"screen, 6. At the "Setup Progress" screen, Click "Next". Click "Next". NOTE: The path of the fi le For Windows XP 32/64 bit and Windows 7 32/64-bit X:\driver\INTEL\ME TOOL\MEI-Only Installer\MEISetup.exe...

  • Page 94: How To Update Insyde Bios

    5-6 How to update Insyde BIOS Step 1. To run afuwingui.exe then click "Open" Step 2. Click the new version BIOS (download from the website)
  • Page 95 Step 3. Choose "ProgramAll Blocks" and "Do Not Check ROM ID" Step 4. Click "Flash" Step 5. Click "Exit" and restart computer.

  • Page 96: Appendix A:power Consumption Test

    Appendix A: Power Consumption Test Condition Item Spec i7-3610QE, i5-3610ME Memory DDR3 1600 / 16GB Operating System Windows 7 Test Program 3D Mark 11 Advanced Edition HDD 3.5" SATA Standard HDD HDD 2.5" SATA Slim Type HDD Test Result for reference only ! Start up Operation Shut down...

  • Page 97: Appendix B:resolution List

    Appendix B: Resolution list 640 x 480 x ( 256 / 16bit / 32bit ) 800 x 600 x ( 256 / 16bit / 32bit ) 1024 x 768 x ( 256 / 16bit / 32bit ) 1152 x 864 x ( 256 / 16bit / 32bit ) 1280 x 600 x ( 256 / 16bit / 32bit ) 1280 x 720 x ( 256 / 16bit / 32bit ) 1280 x 768 x ( 256 / 16bit / 32bit )

  • Page 98: Appendix C: F75111N I C Dio Decice

    Appendix C: F75111N I C DIO device 1-1 IO Device:F75111 under DOS The Sample code source you can download from Source fi le: F75111_Dos_Src.rar http://tprd.info/lexwiki/index.php/IO_Device:F75111_under_DOS Binary fi le: F75111_Dos_Bin.rar USERNAME & PASSWORD: sf How to use this Demo Application 1.Boot Ms-Dos Operating System 2.execute "75WDT.EXE"...

  • Page 99: Io Device: F75111 Under Windows

    1-2 IO Device: F75111 under Windows The Sample code source you can download from Source fi le:F75111_DIO_Src_v2.7W.zip http://tprd.info/lexwiki/index.php/IO_Device:F75111 Binary fi le:F75111_DIO_Bin_v2.7W.zip USERNAME & PASSWORD: sf How to use this Demo Application 1. Press the "Start" button to test DIO function 2.
  • Page 100 p.s. f75111 send "F75111_SetWDTEnable(BYTE byteTimer)" including a parameter "timer", if there's no disable signal (F75111_SetWDTDisable()) to stop it before timer countdown to 0, System will reboot. if there's disable signal received, resent Enable WDT signal, for a loop to prevent from reboot Introduction Initial Internal F75111 port address (0x9c) defi...
  • Page 101 Set output value void F75111::InterDigitalOutput(BYTE byteValue) BYTE byteData = 0; byteData = (byteData & 0x01 )? byteValue + 0x01 : byteValue; byteData = (byteData & 0x02 )? byteValue + 0x02 : byteValue; byteData = (byteData & 0x04 )? byteValue + 0x04 : byteValue; byteData = (byteData &...
  • Page 102 Enable WatchDog void F75111_SetWDTEnable (BYTE byteTimer) WriteByte(F75111_INTERNAL_ADDR,WDT_TIMER_RANGE ,byteTimer); // set WatchDog range and timer WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,WDT_TIMEOUT_FLAG | WDT_ENABLE | WDT_PULSE | WDT_PSWIDTH_100MS); // Enable WatchDog, Setting WatchDog confi gure Disable WatchDog void F75111_SetWDTDisable () WriteByte(F75111_INTERNAL_ADDR,WDT_CONFIGURATION,0x00); // Disable WatchDog defi ne F75111 pin in F75111.h //-------------------------------------------------------------------------------------------------------- #defi...
  • Page 103 // 0:Level Mode // 1:Pulse Mode #defi ne GPIO3X_Output_Data 0x41 // GPIO3x Output Data Register #defi ne GPIO3X_PULSE_WIDTH_CONTROL 0x44 // GPIO3x Pulse Width Control Register #defi ne GP3_PSWIDTH_500US 0x00 // When select Pulse mode: #defi ne GP3_PSWIDTH_1MS 0x01 // When select Pulse mode: #defi...

  • Page 104: Io Device: F75111 Vb6 Under Windows

    1-3 IO Device: F75111 VB6 under Windows The Sample code source you can download from Source fi le: 75111_VB_v1.1.rar http://tprd.info/lexwiki/index.php/IO_Device:F75111_VB6 Binary fi le: 75111_VB_Src1.1.rar USERNAME & PASSWORD: sf How to use this Demo Application A Function - Choose your motherboard model B Function - Enable WDT timer ,Key-in the value by seconds then system will reboot after value which you key-in in left text box !! C Function - Disable WDT timer ,Push down the button then WDT timer value will be clear !!
  • Page 105 SDK Function Introduction Function EnableWDT Function EnableWDT(timer As Integer) Call WriteI2CByte(&H3, &H3) Call WriteI2CByte(&H37, timer) Call WriteI2CByte(&H36, &H73) End Function Function DisableWDT Function DisableWDT() Call WriteI2CByte(&H36, &H0) End Function Function SetDOValue Function SetDOValue(dovalue As Integer) Call WriteI2CByte(&H23, &H0) Call WriteI2CByte(&H20, &HFF) Call WriteI2CByte(&H2B, &HFF) Call WriteI2CByte(&H21, dovalue) End Function...

  • Page 106: Io Device: F75111 Under Linux

    1-4 IO Device: F75111 under linux The Sample code source you can download from Source fi le:F75111v2.3L_SRC.tar.gz http://tprd.info/lexwiki/index.php/IO_Device:F75111_under_linux Binary fi le:F75111v2.3L_BIN.tar.gz USERNAME & PASSWORD: sf How to compile source code 1. Compile source code with Code::Blocks download and install the Code::Block with command "apt-get install codeblocks" Open an exist project(F75111.cbp) in Code::Blocks, click the compile button ( add an option 'pkg-confi...
  • Page 107 p.s. f75111 send "F75111_SetWDTEnable(BYTE byteTimer)" including a parameter "timer", if there's no disable signal (F75111_SetWDTDisable()) to stop it before timer countdown to 0, System will reboot. if there's disable signal received, resent Enable WDT signal, for a loop to prevent from reboot p.s. Introduction IO function In fi...
  • Page 108 byteData = (byteData & 0x40 )? byteValue + 0x10 : byteValue; byteData = (byteData & 0x20 )? byteValue + 0x20 : byteValue; byteData = (byteData & 0x10 )? byteValue + 0x40 : byteValue; byteData = (byteData & 0x08 )? byteValue + 0x80 : byteValue; // get value bit by bit this->Write_Byte(F75111_INTERNAL_ADDR,GPIO2X_OUTPUT_DATA,byteData);...
  • Page 109 //-------------------------------------------------------------------------------------------------------- #defi ne F75111_INTERNAL_ADDR 0x9C // OnBoard F75111 Chipset #defi ne F75111_EXTERNAL_ADDR 0x6E // External F75111 Chipset //-------------------------------------------------------------------------------------------------------- #defi ne F75111_CONFIGURATION 0x03 // Confi gure GPIO13 to WDT2 Function //-------------------------------------------------------------------------------------------------------- #defi ne GPIO1X_CONTROL_MODE 0x10 // Select Output Mode or Input Mode #defi...
