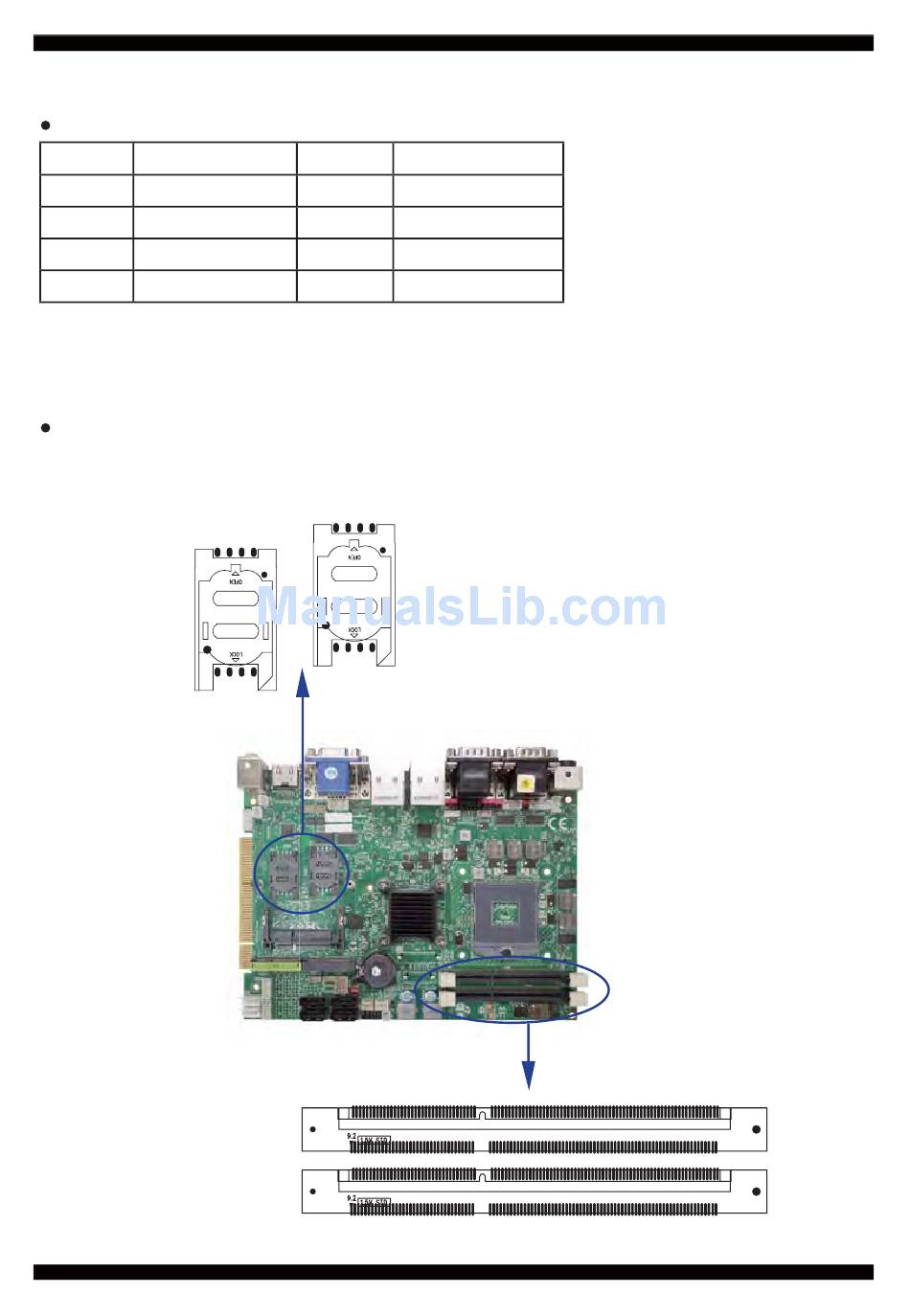

3-19 SIM Socket

SIM1,SIM2: SIM card socket pin defi ne is follow ISO 7816-2 smart card
PIN NO. Description
1 Vcc
2 RST
3 CLK
4 RUF
Note: 1. MPCE1 Pin 8, 10,12,14,16 for SIM1 card reader use.
2. MPCE2 Pin 8, 10,12,14,16 for SIM2 card reader use.

3-20 SODIMM socket

SODIM1/2: SO-DIM DDR3 1.5V DRAM Socket
SIM2
PIN NO. Description
1 GND
2 Vpp
3 DATA
4 RUF
SIM1
47
SODIMM1
SODIMM2
