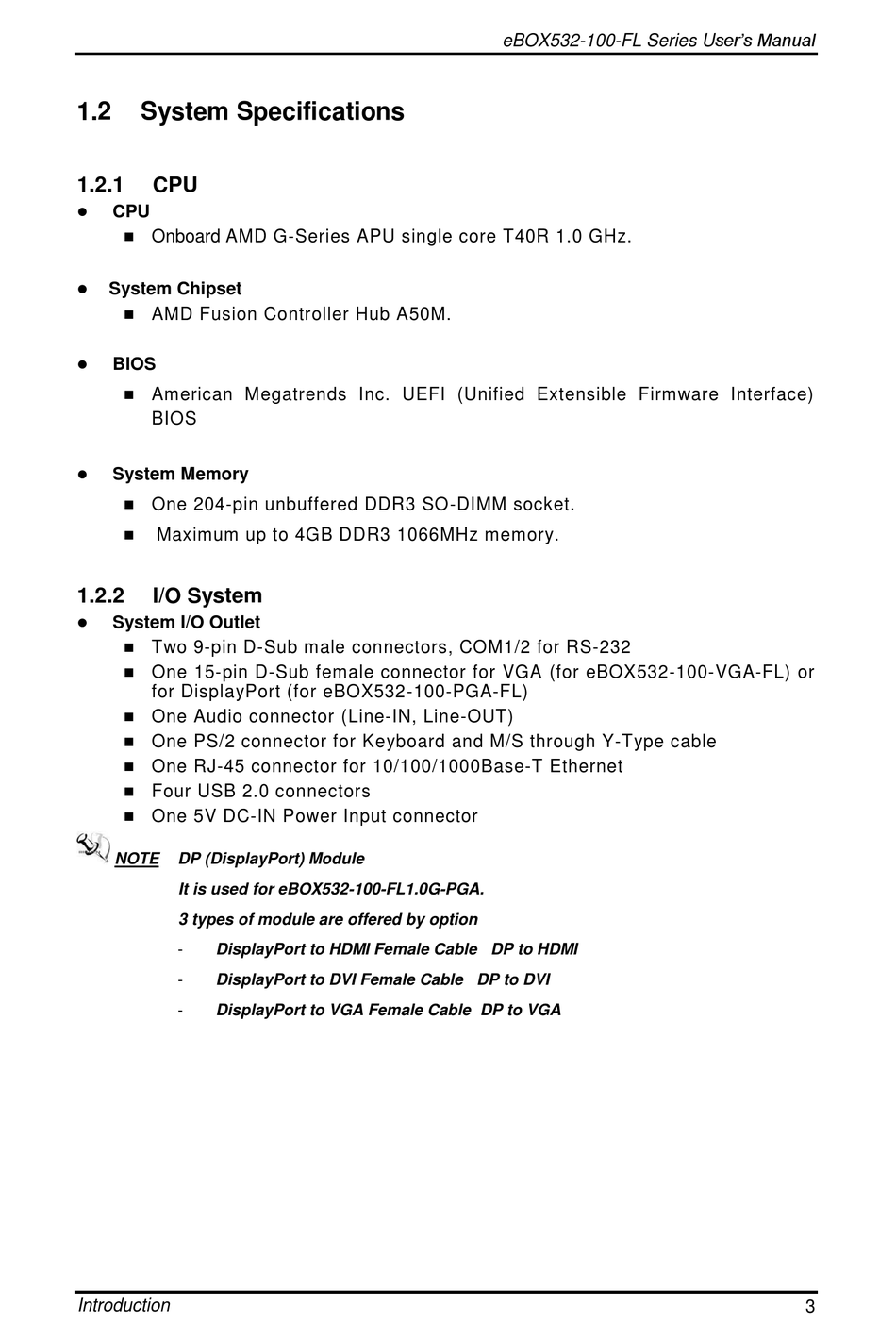

System Specifications

1.2.1

CPU

 CPU
 Onboard AMD G-Series APU single core T40R 1.0 GHz.

System Chipset

AMD Fusion Controller Hub A50M.
 BIOS
 American Megatrends Inc. UEFI (Unified Extensible Firmware Interface)
BIOS

System Memory
 One 204-pin unbuffered DDR3 SO-DIMM socket.
 Maximum up to 4GB DDR3 1066MHz memory.
1.2.2

I/O System

 System I/O Outlet
 Two 9-pin D-Sub male connectors, COM1/2 for RS-232
 One 15-pin D-Sub female connector for VGA (for eBOX532-100-VGA-FL) or
for DisplayPort (for eBOX532-100-PGA-FL)

One Audio connector (Line-IN, Line-OUT)
 One PS/2 connector for Keyboard and M/S through Y-Type cable
 One RJ-45 connector for 10/100/1000Base-T Ethernet
 Four USB 2.0 connectors
 One 5V DC-IN Power Input connector
NOTE DP (DisplayPort) Module
It is used for eBOX532-100-FL1.0G-PGA.
3 types of module are offered by option
- DisplayPort to HDMI Female Cable DP to HDMI
- DisplayPort to DVI Female Cable DP to DVI
- DisplayPort to VGA Female Cable DP to VGA
