This chapter contains general information and detailed specifications of the eBOX532-100-FL.
The Chapter 1 includes the following sections:


General Description


System Specification

Dimensions

I/O Outlets

Package List

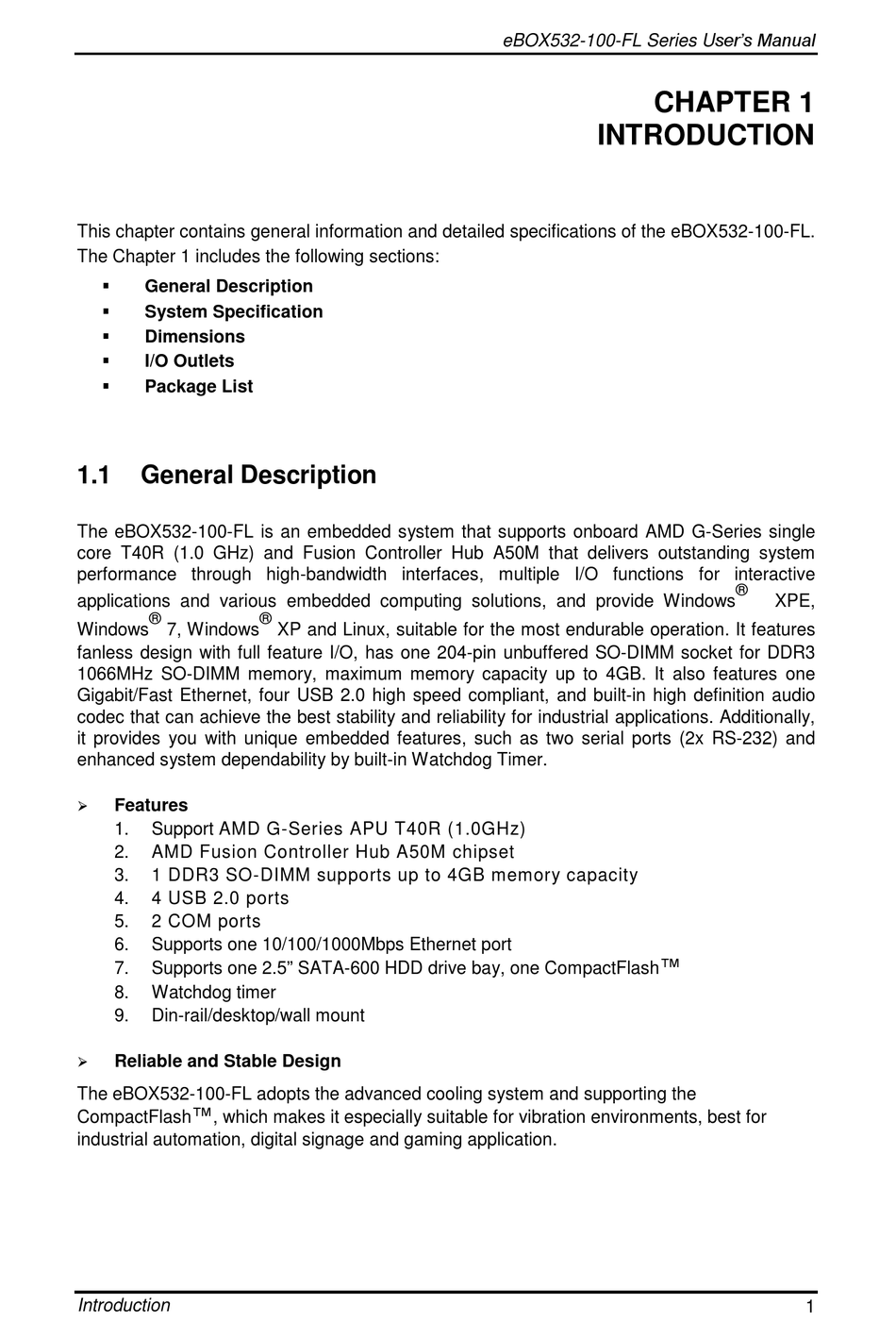

1.1 General Description
The eBOX532-100-FL is an embedded system that supports onboard AMD G-Series single
core T40R (1.0 GHz) and Fusion Controller Hub A50M that delivers outstanding system
performance through high-bandwidth interfaces, multiple I/O functions for interactive
applications and various embedded computing solutions, and provide Windows
®
Windows 7, Windows
fanless design with full feature I/O, has one 204-pin unbuffered SO-DIMM socket for DDR3
1066MHz SO-DIMM memory, maximum memory capacity up to 4GB. It also features one
Gigabit/Fast Ethernet, four USB 2.0 high speed compliant, and built-in high definition audio
codec that can achieve the best stability and reliability for industrial applications. Additionally,
it provides you with unique embedded features, such as two serial ports (2x RS-232) and
enhanced system dependability by built-in Watchdog Timer.
 Features
1. Support AMD G-Series APU T40R (1.0GHz)
2. AMD Fusion Controller Hub A50M chipset
3. 1 DDR3 SO-DIMM supports up to 4GB memory capacity
4. 4 USB 2.0 ports
5. 2 COM ports
6. Supports one 10/100/1000Mbps Ethernet port
7. Supports one 2.5" SATA-600 HDD drive bay, one CompactFlash
8. Watchdog timer
9. Din-rail/desktop/wall mount
 Reliable and Stable Design
The eBOX532-100-FL adopts the advanced cooling system and supporting the
™
CompactFlash , which makes it especially suitable for vibration environments, best for
industrial automation, digital signage and gaming application.
Introduction
®
XP and Linux, suitable for the most endurable operation. It features
