System Specification - AXIOMTEK eBOX532-100-FL Series User Manual

eBOX532-100-FL Series User's Manual
1.2.3

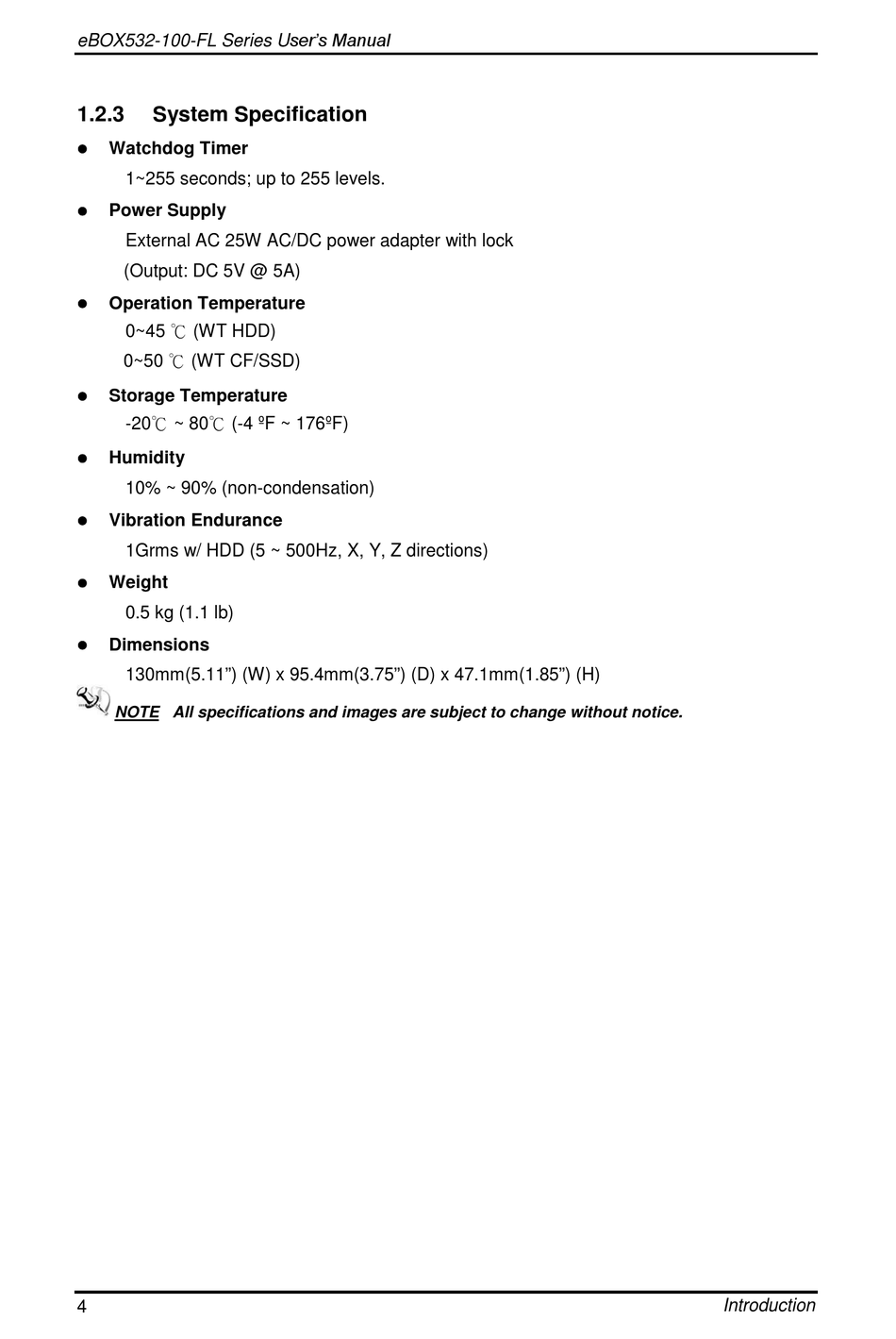

System Specification

 Watchdog Timer
1~255 seconds; up to 255 levels.
 Power Supply
External AC 25W AC/DC power adapter with lock
(Output: DC 5V @ 5A)
 Operation Temperature
0~45 ℃ (WT HDD)
0~50 ℃ (WT CF/SSD)

Storage Temperature
-20℃ ~ 80℃ (-4 ºF ~ 176ºF)
 Humidity
10% ~ 90% (non-condensation)

Vibration Endurance
1Grms w/ HDD (5 ~ 500Hz, X, Y, Z directions)
 Weight
0.5 kg (1.1 lb)
 Dimensions
130mm(5.11") (W) x 95.4mm(3.75") (D) x 47.1mm(1.85") (H)
NOTE All specifications and images are subject to change without notice.
4
Introduction
