AXIOMTEK eBOX560-900-FL Series Quick Installation Manual

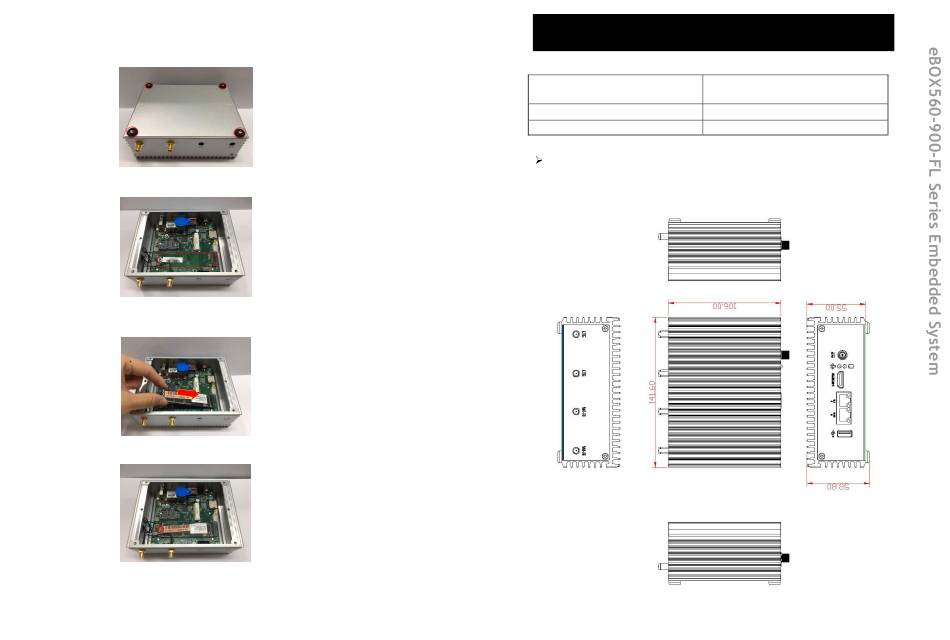

Installing the M.2 2280 M-Key SSD Module
Step 1 Turn off the system, and unplug the power adaptor.
Step 2 Turn the system upside down to locate screws at the bottom
side as red marked and loosen four screws.
Step 3 Remove the bottom cover.
Step 4 Locate the M.2 2280 M-Key slot on the board.
Step 5 Holding the M.2 2280 M-Key SSD card at a 30 degree angle up
from horizontal, slowly insert the golden fingers into the M.2
2280 M-Key slot until it is fully inserted in.
Step 6 Press it down, and secure the M.2 2280 M-Key SSD card to the
carrier by tightening up the M3*4L Phillips flat head screw.
Note: Please refer to the user's manual to get more detail information.
4
©Copyright 2018 Axiomtek Co., Ltd.
Version A1 June 2018
Printed in Taiwan
9416K560040E
eBOX560-900-FL Quick Installation Guide
Packing List
EU Power cord x 1 or US Power
System Unit x 1
cord x 1
Quick Installation Guide x 1 12VDC / 60W AC to DC Adapter x 1
Screws Pack x 1 Foot Pad x 4
Do not try to apply power to the system if any damaged components.
Dimensions
