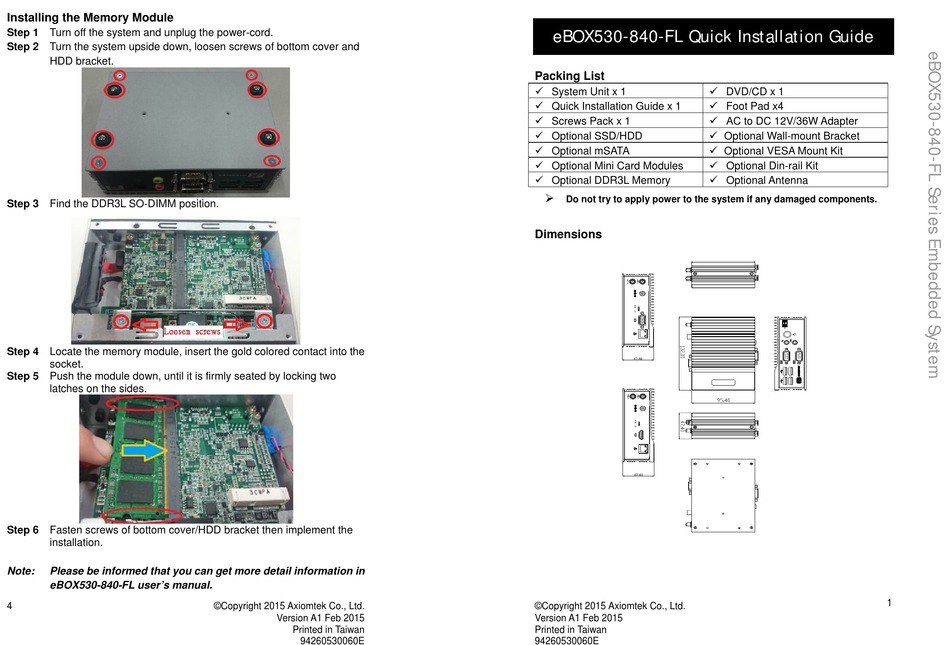

AXIOMTEK eBOX530-840-FL Quick Installation Manual

Installing the Memory Module

Step 1 Turn off the system and unplug the power-cord.
Step 2 Turn the system upside down, loosen screws of bottom cover and
HDD bracket.
Step 3 Find the DDR3L SO-DIMM position.
Step 4 Locate the memory module, insert the gold colored contact into the
socket.
Step 5 Push the module down, until it is firmly seated by locking two
latches on the sides.
Step 6 Fasten screws of bottom cover/HDD bracket then implement the
installation.
Note: Please be informed that you can get more detail information in
eBOX530-840-FL user's manual.
4
©Copyright 2015 Axiomtek Co., Ltd.
Version A1 Feb 2015
Printed in Taiwan
94260530060E
eBOX530-840-FL Quick Installation Guide

Packing List

 System Unit x 1  DVD/CD x 1
 Quick Installation Guide x 1  Foot Pad x4
 Screws Pack x 1  AC to DC 12V/36W Adapter
 Optional SSD/HDD  Optional Wall-mount Bracket
 Optional mSATA  Optional VESA Mount Kit
 Optional Mini Card Modules  Optional Din-rail Kit
 Optional DDR3L Memory  Optional Antenna

Do not try to apply power to the system if any damaged components.
