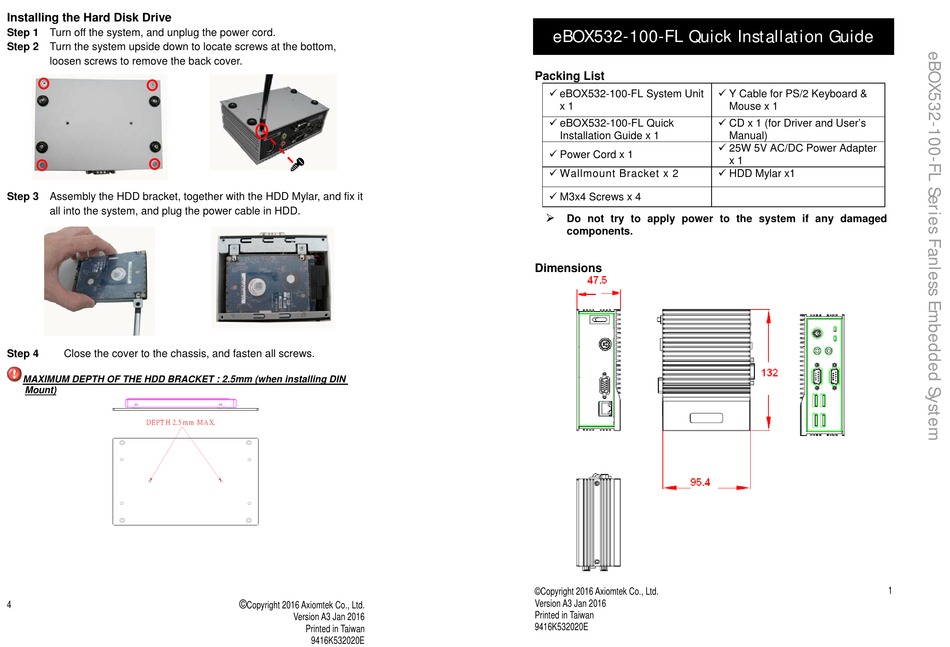

AXIOMTEK eBOX532-100-FL Quick Installation Manual

Installing the Hard Disk Drive

Step 1 Turn off the system, and unplug the power cord.
Step 2 Turn the system upside down to locate screws at the bottom,
loosen screws to remove the back cover.
Step 3 Assembly the HDD bracket, together with the HDD Mylar, and fix it
all into the system, and plug the power cable in HDD.
Step 4 Close the cover to the chassis, and fasten all screws.
MAXIMUM DEPTH OF THE HDD BRACKET : 2.5mm (when installing DIN
Mount)
D E P T H 2 . 5 m m
4
M A X .
©
Copyright 2016 Axiomtek Co., Ltd.
Version A3 Jan 2016
Printed in Taiwan
9416K532020E
eBOX532-100-FL Quick Installation Guide

Packing List

 eBOX532-100-FL System Unit
x 1
 eBOX532-100-FL Quick
Installation Guide x 1
 Power Cord x 1
 Wallmount Bracket x 2
 M3x4 Screws x 4

Do not try to apply power to the system if any damaged
components.
Dimensions
©Copyright 2016 Axiomtek Co., Ltd.
Version A3 Jan 2016
Printed in Taiwan
9416K532020E
 Y Cable for PS/2 Keyboard &
Mouse x 1
 CD x 1 (for Driver and User's
Manual)
 25W 5V AC/DC Power Adapter
x 1
 HDD Mylar x1
1
