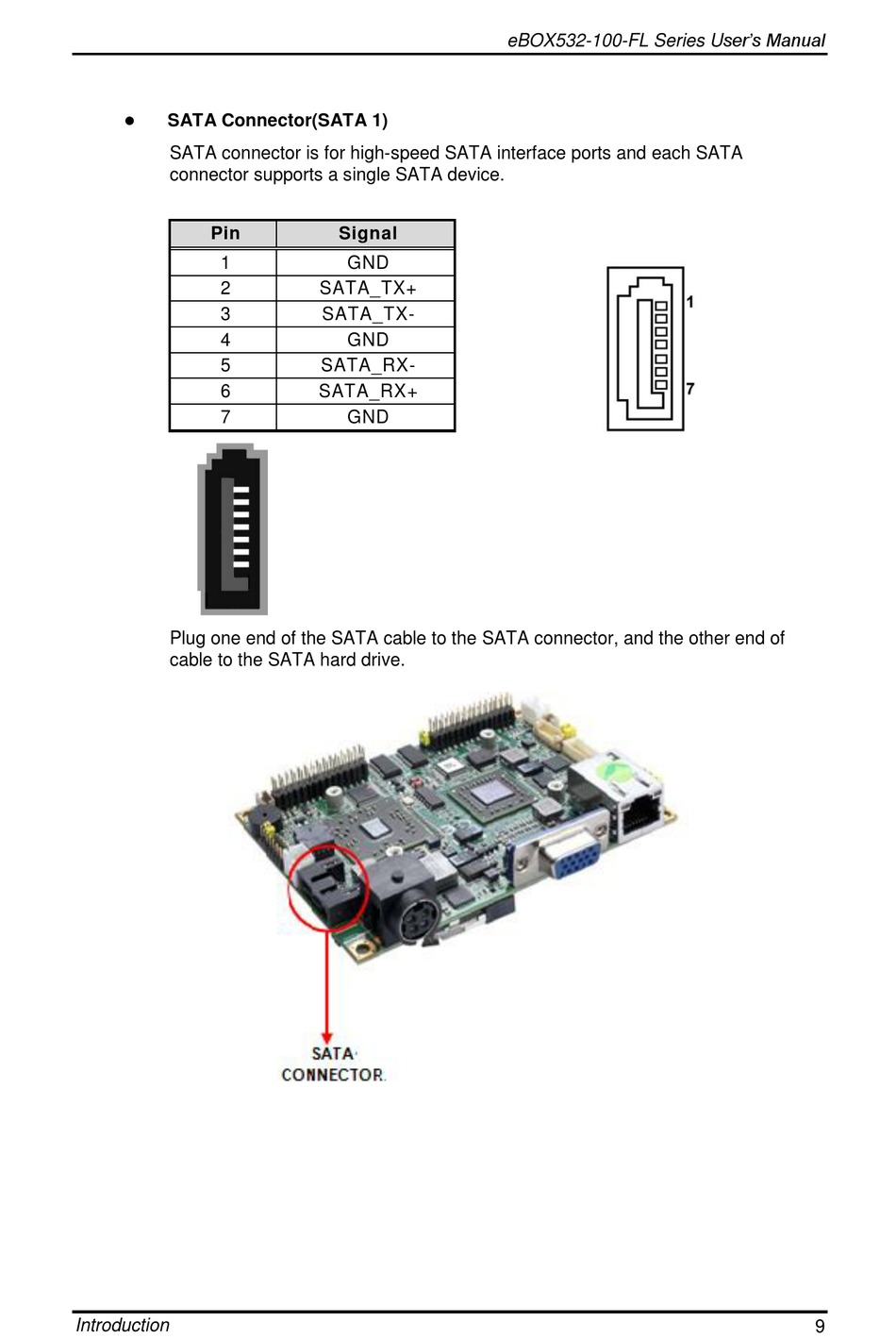

SATA Connector(SATA 1)
SATA connector is for high-speed SATA interface ports and each SATA
connector supports a single SATA device.
Pin
1
2
3
4
5
6
7
Plug one end of the SATA cable to the SATA connector, and the other end of
cable to the SATA hard drive.
Introduction
Signal
GND
SATA_TX+
SATA_TX-
GND
SATA_RX-
SATA_RX+
GND
eBOX532-100-FL Series User's Manual
9
