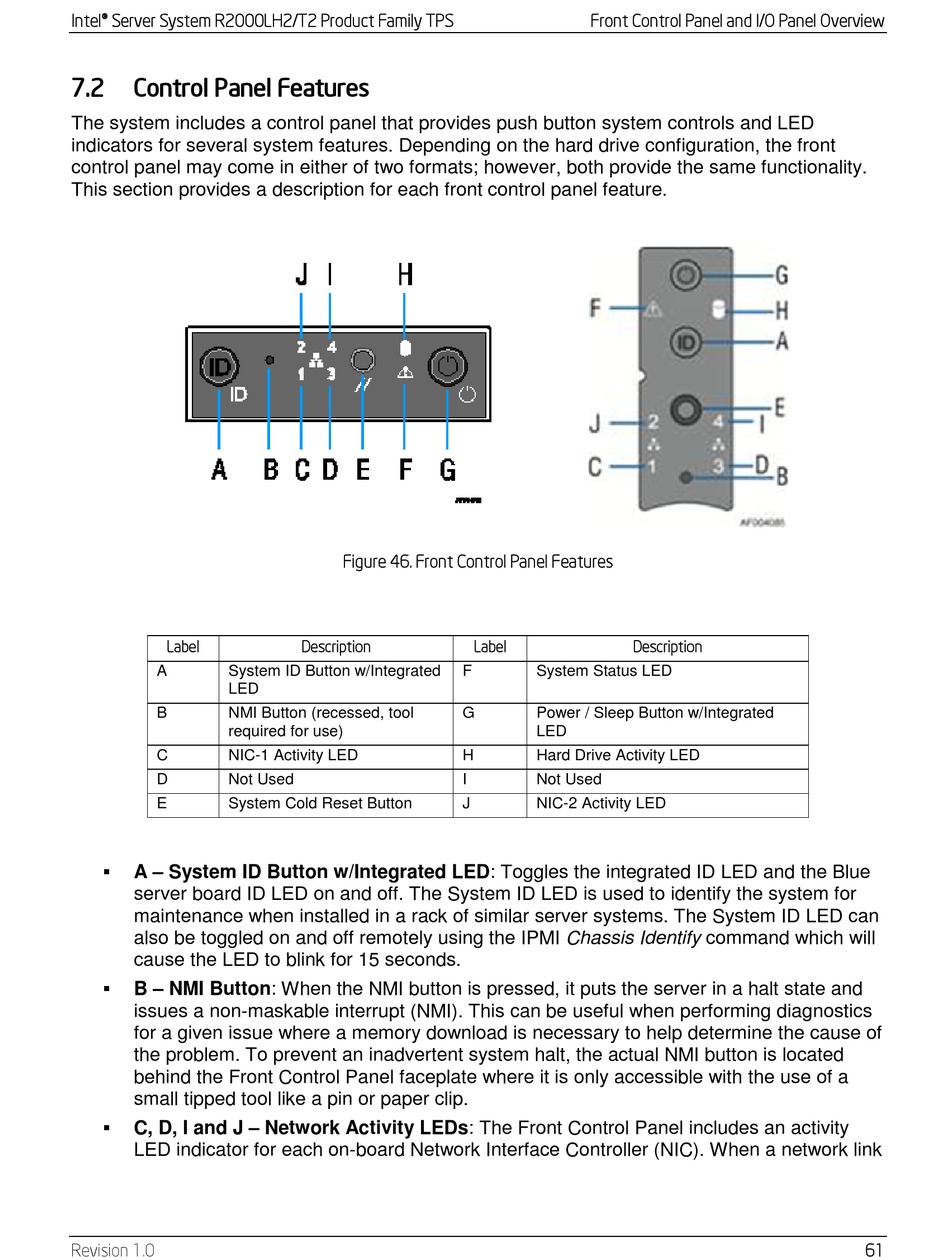

Control Panel Features; Figure 46. Front Control Panel Features - Intel R2000LT2 Technical Product Specification

Intel® Server System R2000LH2/T2 Product Family TPS
7.2

Control Panel Features

The system includes a control panel that provides push button system controls and LED
indicators for several system features. Depending on the hard drive configuration, the front
control panel may come in either of two formats; however, both provide the same functionality.
This section provides a description for each front control panel feature.
Label
A System ID Button w/Integrated
LED
B NMI Button (recessed, tool
required for use)
C NIC-1 Activity LED
D Not Used
E System Cold Reset Button

A – System ID Button w/Integrated LED: Toggles the integrated ID LED and the Blue
server board ID LED on and off. The System ID LED is used to identify the system for
maintenance when installed in a rack of similar server systems. The System ID LED can
also be toggled on and off remotely using the IPMI Chassis Identify command which will
cause the LED to blink for 15 seconds.

B – NMI Button: When the NMI button is pressed, it puts the server in a halt state and
issues a non-maskable interrupt (NMI). This can be useful when performing diagnostics
for a given issue where a memory download is necessary to help determine the cause of
the problem. To prevent an inadvertent system halt, the actual NMI button is located
behind the Front Control Panel faceplate where it is only accessible with the use of a
small tipped tool like a pin or paper clip.

C, D, I and J – Network Activity LEDs: The Front Control Panel includes an activity
LED indicator for each on-board Network Interface Controller (NIC). When a network link
Revision 1.0

Figure 46. Front Control Panel Features

Description Label
F
G
H
I
J
Front Control Panel and I/O Panel Overview
Description
System Status LED
Power / Sleep Button w/Integrated
LED
Hard Drive Activity LED
Not Used
NIC-2 Activity LED
61
