Storage Controller Options Overview

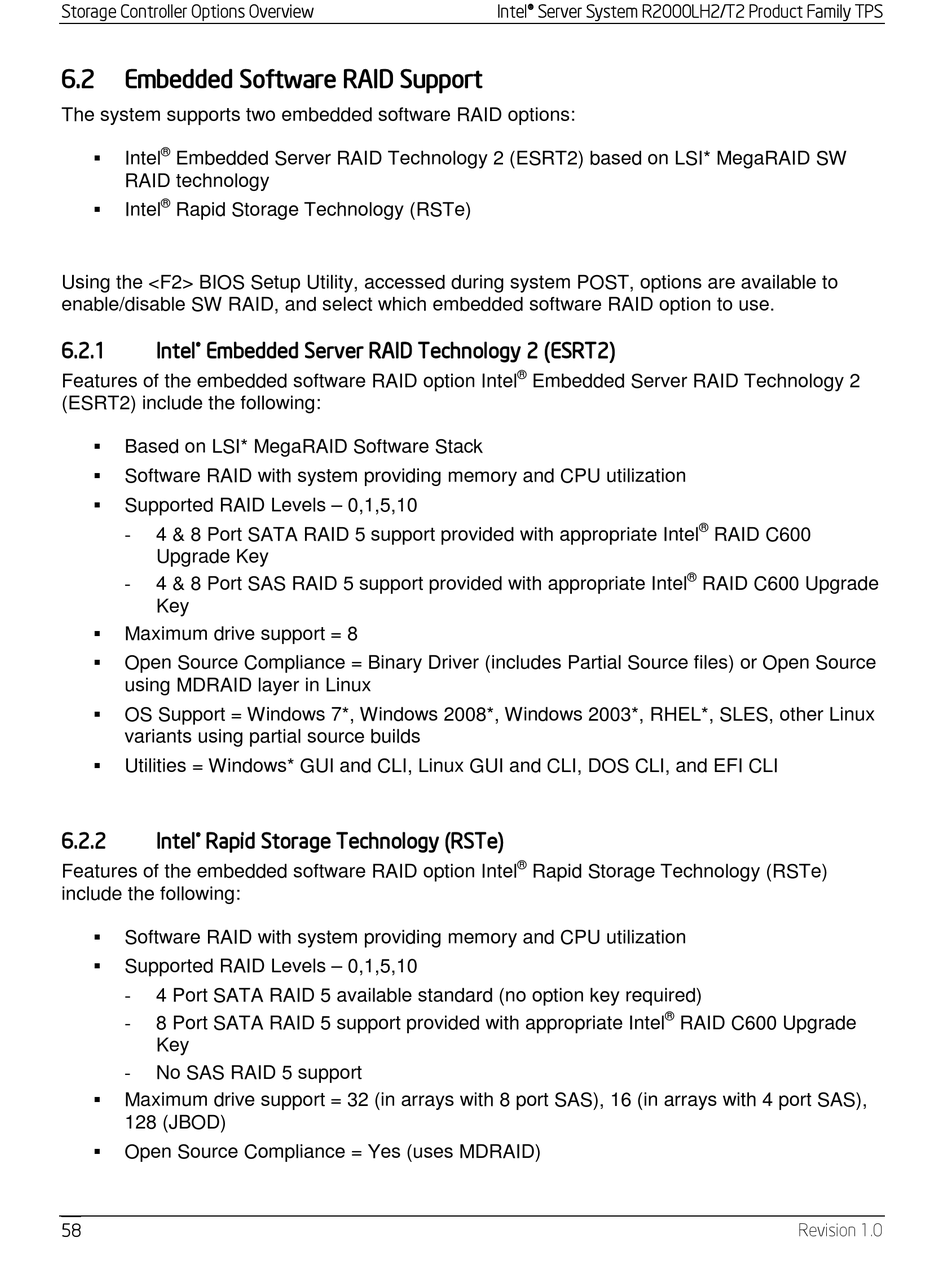

6.2

Embedded Software RAID Support

The system supports two embedded software RAID options:
®

Intel Embedded Server RAID Technology 2 (ESRT2) based on LSI* MegaRAID SW
RAID technology
®

Intel Rapid Storage Technology (RSTe)
Using the <F2> BIOS Setup Utility, accessed during system POST, options are available to
enable/disable SW RAID, and select which embedded software RAID option to use.
6.2.1 Intel Embedded Server RAID Technology 2 (ESRT2)
®
Features of the embedded software RAID option Intel
(ESRT2) include the following:

Based on LSI* MegaRAID Software Stack

Software RAID with system providing memory and CPU utilization

Supported RAID Levels – 0,1,5,10
4 & 8 Port SATA RAID 5 support provided with appropriate Intel
-
Upgrade Key
4 & 8 Port SAS RAID 5 support provided with appropriate Intel
-
Key

Maximum drive support = 8

Open Source Compliance = Binary Driver (includes Partial Source files) or Open Source
using MDRAID layer in Linux

OS Support = Windows 7*, Windows 2008*, Windows 2003*, RHEL*, SLES, other Linux
variants using partial source builds

Utilities = Windows* GUI and CLI, Linux GUI and CLI, DOS CLI, and EFI CLI
6.2.2 Intel Rapid Storage Technology (RSTe)
®
Features of the embedded software RAID option Intel
include the following:

Software RAID with system providing memory and CPU utilization

Supported RAID Levels – 0,1,5,10
- 4 Port SATA RAID 5 available standard (no option key required)
- 8 Port SATA RAID 5 support provided with appropriate Intel
Key
No SAS RAID 5 support
-

Maximum drive support = 32 (in arrays with 8 port SAS), 16 (in arrays with 4 port SAS),
128 (JBOD)

Open Source Compliance = Yes (uses MDRAID)
58
Intel® Server System R2000LH2/T2 Product Family TPS
®
Embedded Server RAID Technology 2
®
Rapid Storage Technology (RSTe)
®
®
RAID C600
®
RAID C600 Upgrade
RAID C600 Upgrade
Revision 1.0
