Shuttle Recovery Owner's Manual page 12

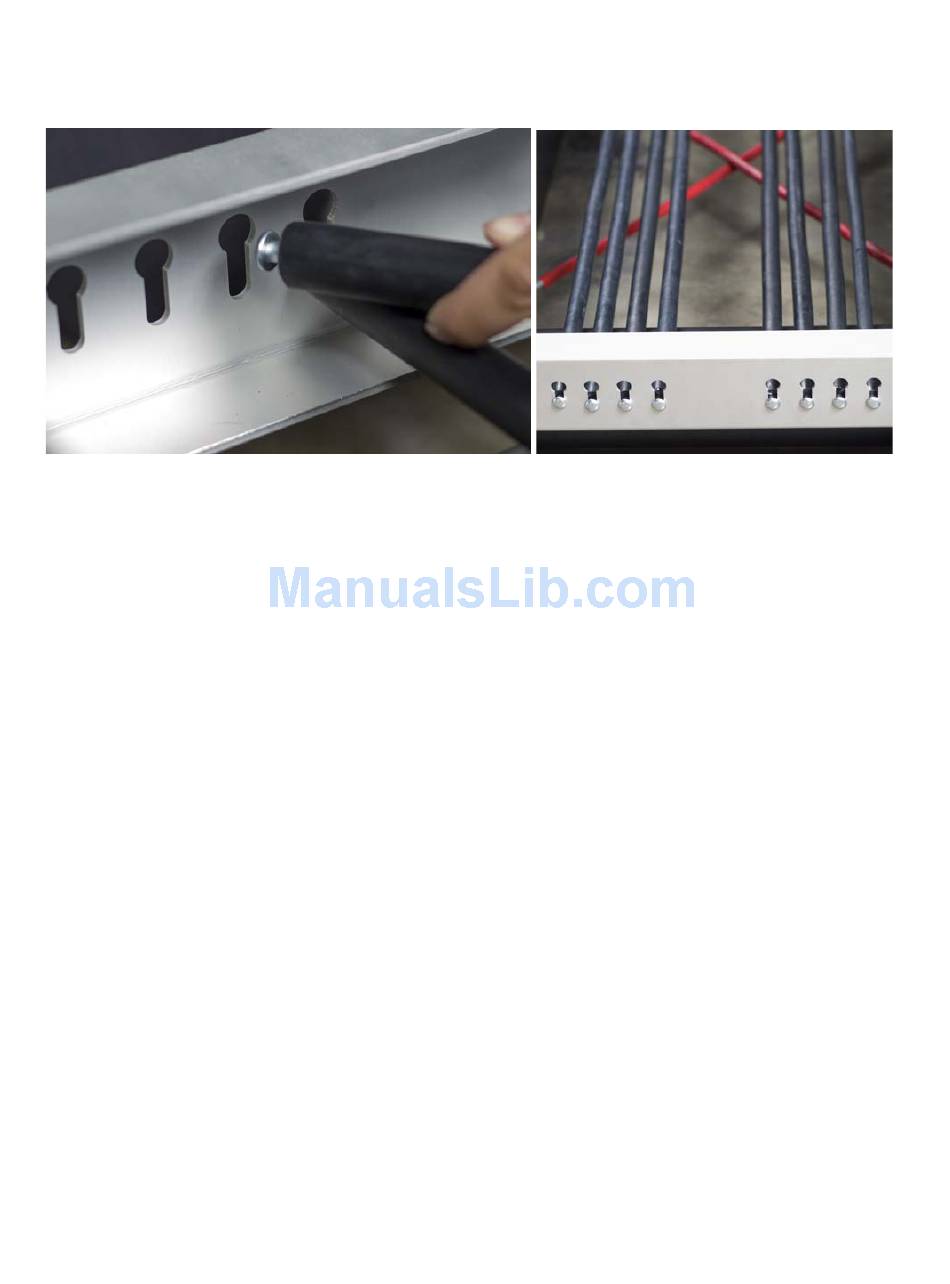

5. From the opposite end of the Shuttle, pull the silver end of the grey Elasticord through the
corresponding hole in the Footend Bracket and secure at the bottom of the key hole.
6. Repeat with remaining Elasticords.
Step 7: Attach the Kickplate Frame (Box 2)
1. Locate the two Aluminum Kickplate Support Bars.
2. On both sides of the frame, remove the two outermost 5/16 bolts from the external bracket.
