Summary of Contents for Shuttle TNT

  • Page 1 Page 1...

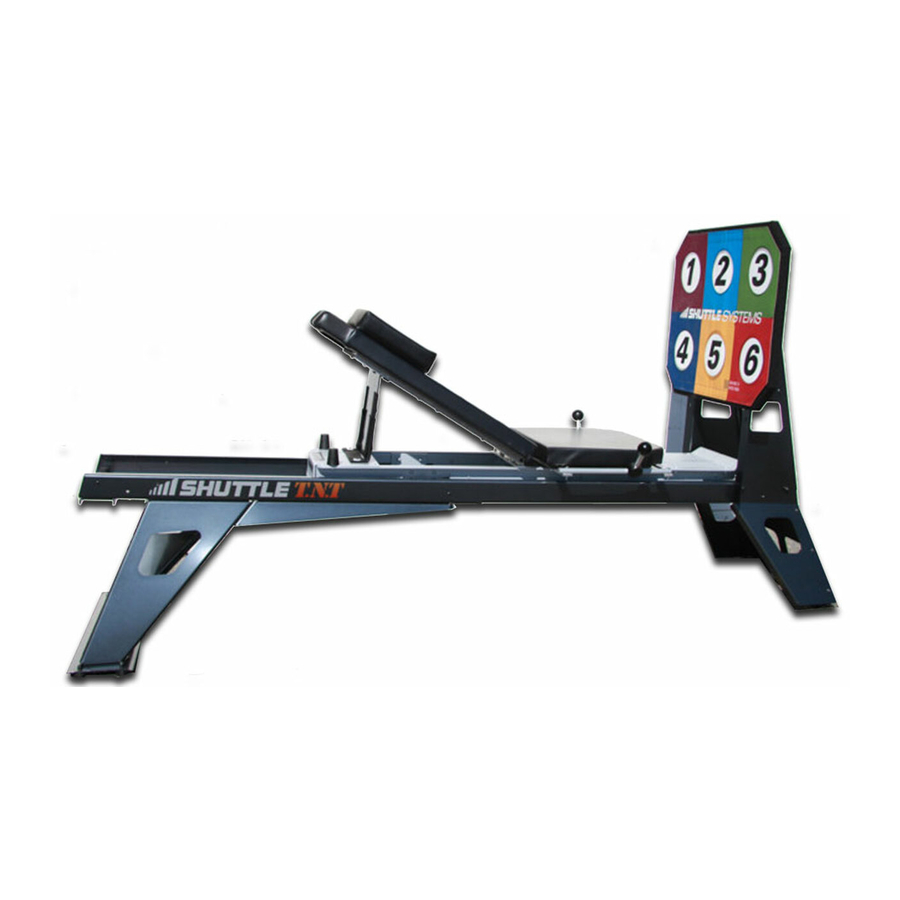

  • Page 2 WELCOME TO THE FAM Congratulations on the purchase of your new Shuttle TNT. Shuttle equipment has been trusted by physical therapists and sports training facilities around the globe for almost half a century. It is our mission to deliver the finest quality exercise devices with superior customer service.
  • Page 3: Table Of Contents

    - INSERTING THE CARRIAGE…………………………………………………..…….11 - ATTACHING THE KICKPLATE BOARD………………………………………..……12 - ATTACHING THE LOW PROFILE HEADREST……………….….….……..….……12 - ATTACHING THE TOWERS (TNT WITH TOWERS ONLY)………..…….…….…..14 - ATTACHING THE PULLEYS (TNT WITH TOWERS ONLY).……….………….……15 USING THE PRODUCT ………………………………………………………………………….………….….. 16 MAINTENANCE AND CARE ……………………………………………………………………….….……… 18 WARRANTY ………………………………………………………………………………………….…………..
  • Page 4: Important Safety Information

    IMPORTANT SAFETY INFORMATION Read all safety information before operating the TNT. It is the owner’s responsibility to ensure that users are aware of all warnings and precautions. Please read all instructions before using the product. These instructions were written to ensure the safety of the user and to protect the product.
  • Page 5: Specifications

    Carriage Capacity: 450 lbs Max Resistance: SEAT TNT: 6-250 lbs* ADJUSTABLE PLATE Total Elasticords: FOOTREST TNT: (8) Elasticords Total; (1) 6 lb Elasticord, (1) 12 lb Elasticord ELASTICORDS (6) 25 lb Elasticords BACKREST * Elasticords are rated starting resistance, but will gain...
  • Page 6: Identification Of The Manufacturer

    IDENTIFICATION OF MANUFACTURER A - Manufacturer’s name and contact B - Item number C - Description of product D - Serial number Page 3...
  • Page 7: Assembly Of The Tnt

    Tools Needed: 7/16 inch socket or combination wrench, 1/2 inch socket of combination wrench. Keep in mind that the following images in Steps 1-7 pertain to the TNT without towers, if you bought the TNT with towers your parts may appear slightly different than those in the included images but the required steps remain the same.
  • Page 8: Removing The Carriage

    Carriage 1. Remove the two rubber bumpers at the head-end of the TNT rails. Set them aside for Step 5. (Pic 1.1) 2. The carriage can now be removed by pulling it out through the head-end of the rails. Gently set the carriage to the side for now.
  • Page 9: Attaching The Head-End Stand

    TNT Rails Head-End Stand 1. Flip the rails upside down, exposing four lock nuts at the head-end of the TNT rails. Remove the four bolts (two on each side) from the rails. (Pic 2.1) 2. Align the holes of the head-end stand with the now exposed bolt holes on the TNT rails. The head-end stand should be flipped upside down so the rubber feet are facing up.
  • Page 10: Attaching The Kickplate Structure

    2. Remove the eight bolts (four on each side) at the foot-end of the TNT rails. (Pic 3.2) 3. Position the foot-end of the TNT rails to the inside of the kickplate structure. Align the holes and insert the eight bolts into the rails and through the kickplate structure.
  • Page 11 ASSEMBLY OF THE TNT (STEP 3) MOUNTING THE KICKPLATE STRUCTURE STEP 3 Page 8...
  • Page 12: Installing The Seat

    ASSEMBLY OF THE TNT (STEP 4) INSTALLING THE SEAT STEP 4 ITEMS REQUIRED Carriage Seat 1. Turn the seat upside down with the cushion resting on the ground. Remove the four lock nuts and washers from the bolt studs. (Pic 4.1) 2.
  • Page 13 ASSEMBLY OF THE TNT (STEP 4) INSTALLING THE SEAT STEP 4 Page 10...
  • Page 14: Inserting The Carriage

    TNT Rails Rubber Bumpers 1. Insert the foot-end of the carriage into the TNT rails, and let it gently slide along the track until it contacts the rebound blocks. (Pic 5.1) 2. Remove the rubber ball from the Range of Motion (ROM) Control Rope by untying the knot at the end of the ROM Control Rope.
  • Page 15: Attaching The Kickplate Board

    ASSEMBLY OF THE TNT (STEP 6) ATTACHING THE KICKPLATE BOARD STEP 6 ITEMS REQUIRED Kickplate Board 1. The kickplate board is adjustable to three different heights. Once the desired position is determined, insert the four protruding bolts at the back of the kickplate board into the desired corresponding holes in the kickplate structure.
  • Page 16 ASSEMBLY OF THE TNT (CONTINUED) The following two steps are for the TNT WITH TOWERS ONLY Page 13...
  • Page 17: Attaching The Towers (Tnt With Towers Only)

    Towers Tower Crossbar 1. Align the tower crossbar underneath the head-end of the TNT rails to bolt holes “9” and “10”. Insert two bolts into the TNT rails and through the crossbar. Hand tighten for now. (Pic 8.1) 2. Align the “11” and “12” bolt holes on the towers with the crossbar. Insert the longer bolts with a washer into the tower and through the crossbar.
  • Page 18: Attaching The Pulleys (Tnt With Towers Only)

    ASSEMBLY OF THE TNT (STEP 9) ATTACHING THE PULLEYS STEP 9 ITEMS REQUIRED Towers Bag 1. Attach the PNF pulleys (two on each side) from the towers bag to the eyelet at the desired height on the towers. 2. Feed the rope through both pulleys. (Pic 9.1) 3.
  • Page 19: Using The Product

    USING THE PRODUCT Located between the TNT rails are eight elasticords. They are at the head-end of the machine attached to the gray, orange, and tan lanyards. Warning! If you grasp the lanyard too close to the plastic white knob you risk pinching your fingers.   ...
  • Page 20 The PNF (Proprioceptive Neuromuscular Facilitation) pulley system is designed to allow upper body exercises while laying, sitting, or kneeling on the TNT carriage. It can also be used while standing or sitting next to the TNT. The system is designed to be adjusted in the following ways: 1.
  • Page 21: Maintenance And Care

    - Remove the carriage. 2. Lubricate elasticords located in the TNT rails. - Apply silicone gel to the rubber portion of the TNT rail elasticords. 3. Re-insert carriage into the TNT rails. - Re-insert the two rubber bumpers into the rails.
  • Page 22: Warranty

    SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. SHUTTLE SYSTEMS shall in no event be liable for death, injuries to persons or property or incidental, contingent, special or consequential damages arising from the use of our products. In administration of this warranty, SHUTTLE SYSTEMS may at its discretion request that the product or part must be returned for examination, postage prepaid, to our Bellingham facility.
  • Page 23: Support

    - information about which parts are covered by the warranty and which must be paid for - supply of original spare parts. When you contact Shuttle Technical Support Service you must give the following information: - Product model - Serial number...
  • Page 24 Scan code to view our TNT YouTube Scan code to view our TNT Parts Playlist Page 19...
