Step 5: Add the Plyometric X Brace (Box 1)
Does not apply to Recovery Standard or Recovery Senior
1. Locate the two red rubber coated rods that will make up the X-brace support system. Please
note that only one end of each rod will have a washer in addition to the nut provided.
2. Remove outermost nuts and washers from rod ends (four nuts, and two washers) and
set aside.

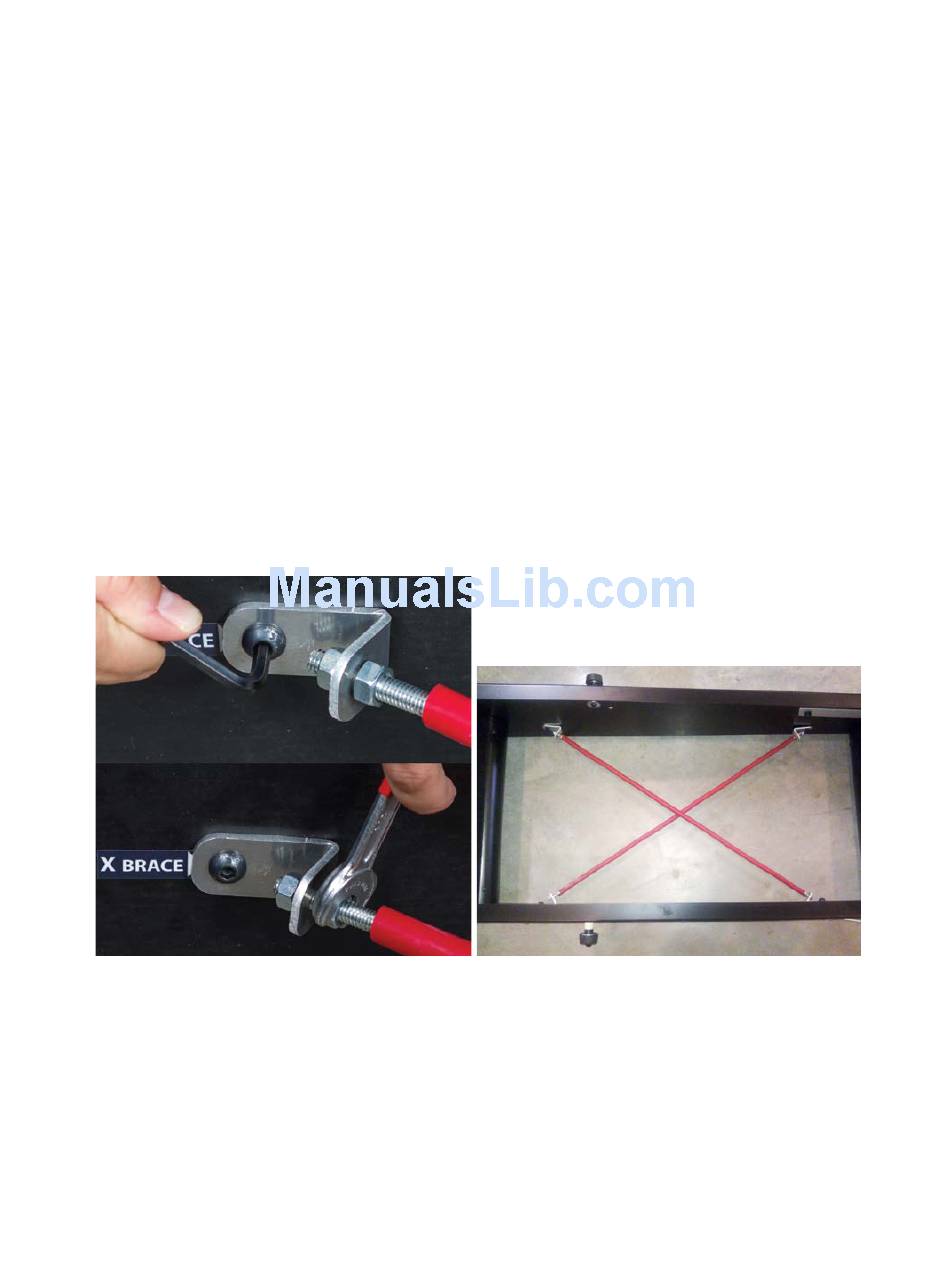

3. Place the rods in an X configuration between the holes provided on each side of the rail
frame and align the rod ends using the stickers on the right side panel as your guide.
4. Secure the rod ends closest to the head-end of the machine using provided nuts and
washers. Secure rod ends closest to the foot-end of the machine with nuts.
5. The nuts attaching the angle brace to the rods may be adjusted to make the bolts fit into
the holes exactly. Tighten these nuts to lock the rods in place.
.
