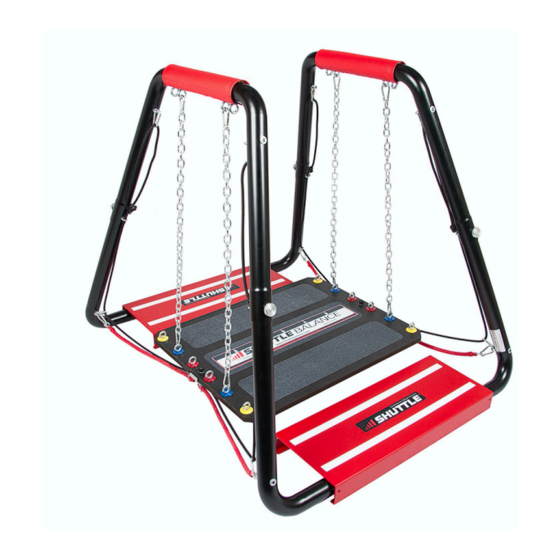

Shuttle Balance Manual

Hide thumbs Also See for Balance:
Table of Contents

Advertisement

Quick Links

Download this manual
BALANCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Balance and is the answer not in the manual?

Questions and answers

Related Manuals for Shuttle Balance

Summary of Contents for Shuttle Balance

  • Page 1 BALANCE...
  • Page 2 WELCOME TO THE FAM Congratulations on the purchase of your new Shuttle Balance. Shuttle equipment has been trusted by physical therapists and sports training facilities around the globe for almost half a century. It is our mission to deliver the finest quality exercise devices with superior customer service.

  • Page 3: Table Of Contents

    SPECIFICATIONS (SPORT)…….………………………..……………………………………………………….. 4 SPECIFICATIONS (SENIOR)…………….…………..….……………………………………………………….. 5 IDENTIFICATION OF THE MANUFACTURER …………………………………………………………..……. 6 ASSEMBLY OF THE BALANCE …………….…………………………………..……………………….……… 7 - ASSEMBLING THE HANDRAIL TUBES AND THE BOTTOM FRAME TUBES……………..….8 - ATTACHING THE PLATFORM……………………..………………………………………..…..…9 - SECURING THE STEPS TO THE FRAME……………..….……………………………….…….. 11 USING THE PRODUCT (STANDARD)……………………………………………………….…………………...

  • Page 4: Important Safety Information

    Systems could void the warranty. The Balance is for indoor use only. Do not store the Balance outdoors, near water, or at high humidity levels. Fully assemble the product before using it. Check the product before each use. Do not continue to use the product if it is not working properly.

  • Page 5: Specifications (Standard)

    SPECIFICATIONS (STANDARD) Platform Dimensions: 24” x 30” Dimensions: 42” x 50” Floor Space Required: 4.5’ x 5’ SAFETY Load Capacity: 400 lbs GRIPS Rail Height: 41” PLATFORM UPPER STABILITY EYEBOLTS CONTROL ROPE OUTER STABILITY EYEBOLTS ELASTIC DAMPENERS Page 2...

  • Page 6: Specifications (Professional)

    SPECIFICATIONS (PROFESSIONAL) Platform Dimensions: 24” x 30” Dimensions: 42” x 50” Floor Space Required: 4.5’ x 5’ Load Capacity: 400 lbs SAFETY UPPER GRIPS Rail Height: 41” STABILITY EYEBOLTS PLATFORM CONTROL ROPE OUTER STABILITY EYEBOLTS ELASTIC DAMPENERS STEPS Page 3...

  • Page 7: Specifications (Sport)

    SPECIFICATIONS (SPORT) Platform Dimensions: 36” x 48” Dimensions: 53” x 60” Floor Space Required: 6’ x6.5’ Load Capacity: 400 lbs SAFETY UPPER Rail Height: 41” GRIPS STABILITY EYEBOLTS PLATFORM WHEELS CONTROL ROPE OUTER STABILITY EYEBOLTS INNER STABILITY EYEBOLTS STEPS Page 4...

  • Page 8: Specifications (Senior)

    SPECIFICATIONS (SENIOR) Platform Dimensions: 24” x 30” Dimensions: 42” x 50” Floor Space Required: 4.5’ x 5’ SAFETY GRIPS CHAIN Load Capacity: 400 lbs COVERS Rail Height: 41” UPPER STABILITY EYEBOLTS CONTROL ROPE PLATFORM STEPS Page 5...

  • Page 9: Identification Of The Manufacturer

    IDENTIFICATION OF THE MANUFACTURER A - Manufacturer’s name and contact B - Item number C - Description of product D - Serial number Page 6...

  • Page 10: Assembly Of The Balance

    ASSEMBLY OF THE BALANCE Keep in mind that the following images pertain to just one of the four available Shuttle Balance models. Your parts may appear slightly different than those in the included images, but the required steps remain the same.

  • Page 11: Assembling The Handrail Tubes And The Bottom Frame Tubes

    ASSEMBLY OF THE BALANCE (STEP 1) ASSEMBLING THE HANDRAIL TUBES TO THE BOTTOM FRAME TUBES STEP 1 ITEMS REQUIRED Handrail Tubes Bottom Frame Tubes 1. Remove all protective packaging from the handrail tubes. 2. Connect both handrail tubes to one bottom frame tubes, aligning the eyebolt holes. (Pic 1.1) 3.

  • Page 12: Attaching The Platform

    ASSEMBLY OF THE BALANCE (STEP 2) ATTACHING THE PLATFORM (STANDARD, PROFESSIONAL, & SPORT MODELS) STEP 2 ITEMS REQUIRED Platform Knurled Knobs Bag 1. Place the platform in the middle of the frame. Remove the zip-tie and parts bag containing four knurled knobs and steel/rubber washers from the platform.
  • Page 13 ASSEMBLY OF THE BALANCE (STEP 2) ATTACHING THE PLATFORM STEP 2 Blance Senior Page 10...

  • Page 14: Securing The Steps To The Frame

    1. Align the velcro strips on the bottom frame tube with the velcro on the bottom of the steps. Press the steps down firmly to secure them to the frame. The Shuttle Logo should be facing out from the platform. The steps can be placed on the inside of the frame or the outside of the frame depending on patient use.

  • Page 15: Using The Product (Standard)

    USING THE PRODUCT (STANDARD) Adjusting the degree of stability: The stability of the balance platform is achieved by the positioning of the chains on the platform. The chains can be positioned with the chain carabiners to the corresponding color coded stability eyebolts located on the platform.

  • Page 16: Using The Product (Professional)

    USING THE PRODUCT (PROFESSIONAL) Adjusting the degree of stability: The stability of the balance platform is achieved by the positioning of the chains on the platform. The chains can be positioned with the chain carabiners to the corresponding color coded stability eyebolts located on the platform.

  • Page 17: Using The Product (Sport)

    USING THE PRODUCT (SPORT) Adjusting the degree of stability: The stability of the balance platform is achieved by the positioning of the chains on the platform. The chains can be positioned with the chain carabiners to the corresponding color coded stability eyebolts located on the platform.

  • Page 18: Using The Product (Senior)

    This can be done by sliding the black plastic rope lock (found on the control rope adjacent to the safety grips) to tighten or loosen the black ropes. The main purpose is to reduce the sway for patients getting acquainted with the balance motion.

  • Page 19: Maintenance And Care

    After visually inspecting the wheels, test them by individually rolling them. Both wheels should operate smoothly for easier transportation of the machine. *Wheels are original equipment on the Balance Sport. They may be purchased as an accessory for the other Balance models.

  • Page 20: Treatment Progression

    TREATMENT PROGRESSION Step onto the balance platform facing forward, feet shoulder width apart. Release hold on the safety grips while keeping the platform still. Move eyes and head, looking at different fixed points. Reach and touch a feed point: Catch a ball, pull a therapy band, throw a ball against a rebounder, or move free weights.
  • Page 21 TREATMENT PROGRESSION Rotate on the balance board one complete turn (360°) Repeat the last protocol facing the handrail. Rotate a complete turn with eyes closed. Perturbation: Standing behind the patient, gently rocking or moving the platform. Use a therapy band to provide resistance.

  • Page 22: Warranty

    SO THE ABOVE LIMITATIONS MAY NOT APPLY TO YOU. SHUTTLE SYSTEMS shall in no event be liable for death, injuries to persons or property or incidental, contingent, special or consequential damages arising from the use of our products. In administration of this warranty, SHUTTLE SYSTEMS may at its discretion request that the product or part must be returned for examination, postage prepaid, to our Bellingham facility.

  • Page 23: Support

    - information about which parts are covered by the warranty and which must be paid for - supply of original spare parts. When you contact Shuttle Technical Support Service you must give the following information: - Product model - Serial number...
  • Page 24 Scan code to view our Balance Scan code to view our Balance YouTube Playlist Parts...
