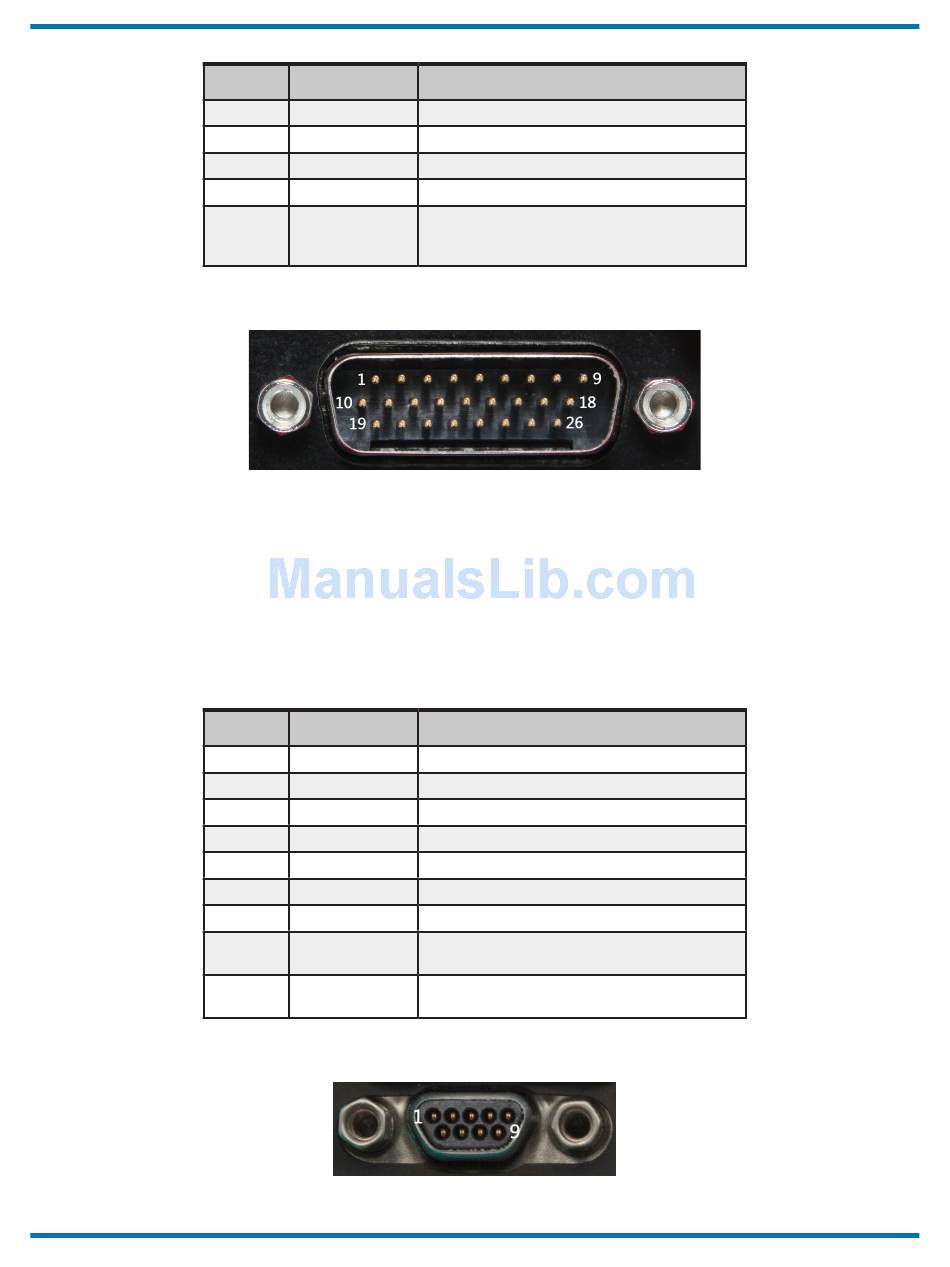

Table 4: neoVI FIRE 2 HD-26 Connector Pinout.
Figure 86: neoVI FIRE 2 HD-26 Connector Pin Numbering.
µDB-9 Connector Pinout
The pinout for the µDB-9 connector on the FIRE 2 can be seen in Figure 87 and Table 5.
Note that the I/O channel numbering (which skips 3 and 4) is designed to ensure backward
compatibility with the original neoVI FIRE.
Table 5: neoVI FIRE 2 µDB-9 Connector Pinout.
Figure 87: neoVI FIRE 2 µDB-9 Connector Pin Numbering.
Version 2.1 - October 10, 2016
neoVI FIRE 2 User's Guide
Pin #
Name
22
ISO K/LIN 1
23
LIN 2
24
LIN 3
25
ETH ACTIVATE
HS CAN 7 H /
26
LSFT CAN 2 H /
SW CAN
Pin #
Name
1
LIN 1
2
LIN 2
3
LIN 3
4
LIN 4
5
GND
6
N/C
7
N/C
8
EMISC 1
9
EMISC 2
Description
LIN channel 1
LIN channel 2
LIN channel 3
Ethernet activation line
High Speed CAN channel 7, high /
Low Speed Fault Tolerant CAN channel 2, high /
Single Wire CAN channel 1
Description
LIN channel 1
LIN channel 2
LIN channel 3
LIN channel 4
Ground
No connection
No connection
Enhanced miscellaneous I/O channel 1 (analog or
digital with PWM and 0-40V support)
Enhanced miscellaneous I/O channel 2 (analog or
digital with PWM and 0-40V support)
68
© 2016 Intrepid Control Systems, Inc.
