neoVI FIRE 2 User's Guide

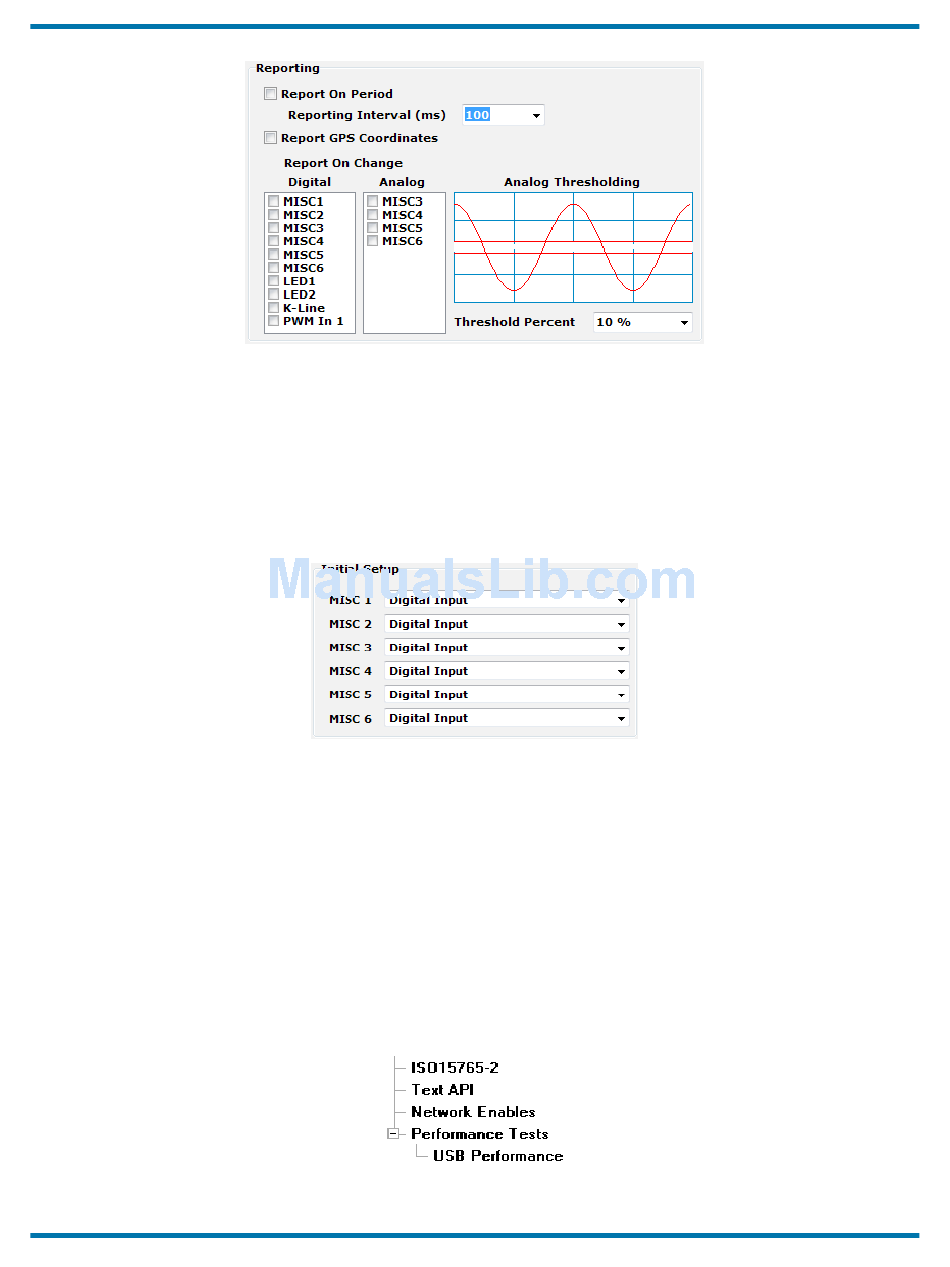

Figure 72: neoVI Explorer MISC I/O Reporting Parameters
Initial Values
In this section you can select the operating mode of each I/O channel (Figure 73). Each can be
set as a digital input, as a digital output that is initially off, or as a digital output that is initially
on.
Figure 73: neoVI Explorer MISC I/O Initial Channel Configuration
Advanced Analog Settings
The one option here allows you to control how often each channel is sampled.
4.8

Other Parameters

In addition to the network-specific parameters described above, there are a number of
additional option sets that you can use to tailor the operation of your FIRE 2 (Figure 74).
Figure 74: neoVI Explorer Additional Parameter Groups.
