6. Set Message to Arbitration ID 123: Under the Arb ID column for the message, enter
the value "123".
7. Add Message Signal: In the middle of the screen, find "Signals in Message"; just below
this click the
8. Rename Message Signal: Under the Description column, double-click "Signal 0" and
change the name to "Engine Speed".
With these changes, the message should now appear as seen in Figure 82.

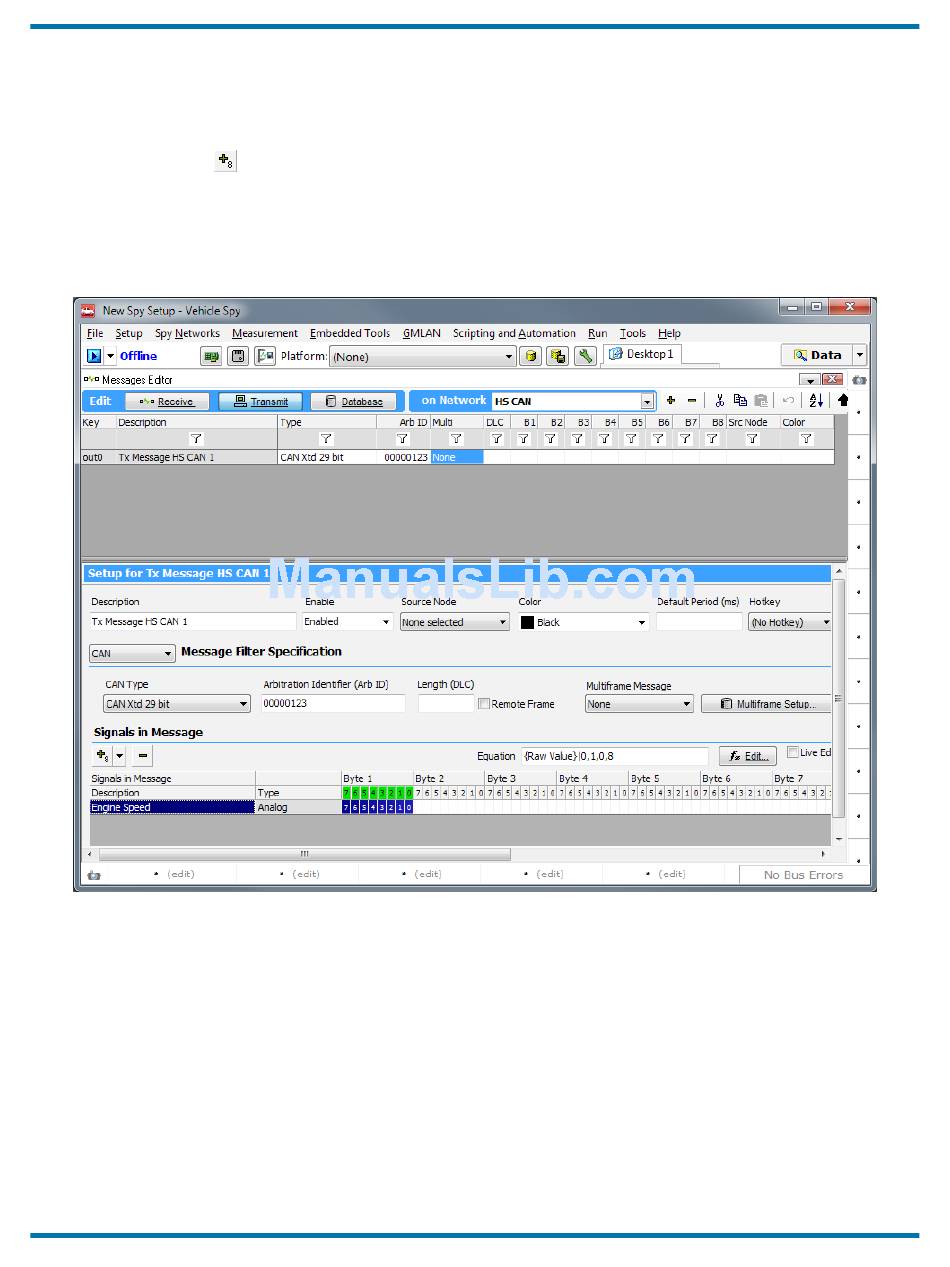

Figure 82: Vehicle Spy Transmit Message with Arb ID and Named Signal.
We'll now use the Tx Panel to specify a simple static value to send in that signal, and then
instruct Vehicle Spy to transmit the message periodically.
9. Load Tx Panel: Select Tx Panel from the Spy Networks menu.
10. Select Message: Click on "HS CAN Message 1" under Description on the left side of
the screen.
11. Select Transmission Rate: The message by default is set to "Periodic" transmissions,
but the rate says "None". Double-click in this field, scroll down and choose "0.100".
